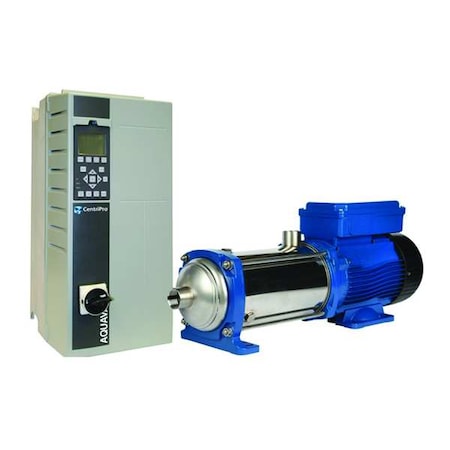

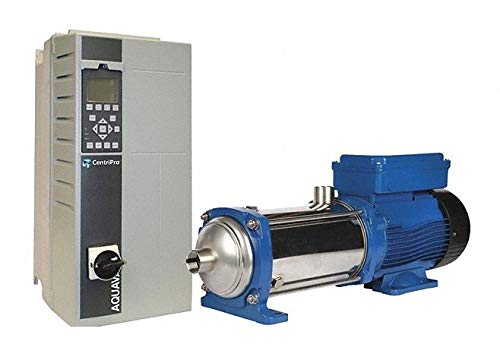

Goulds Water Technology 2AB23HM06 - Pressure Booster System 2 HP 1 in Inlet

Goulds Water Technology 2AB23HM06 - Pressure Booster System 2 HP 1 in Inletzoom

Attributes

Key Value
Agency ComplianceNSF, CSA, UL
Amps4.2 A
Compatible Discharge Pi.1 in
Compatible Intake Pipe .1 in
Compatible with Media T.Water
Country of Origin (subj.United States
Discharge Flange Size1 in
Discharge TypeNPT
DutyContinuous
Duty - PumpsContinuous
Duty CycleContinuous
Feet of Head (Minimum)25 ft
For Use With Potable Sy.No
For Use With SystemsNon-Potable
Frequency60 Hz
Horsepower2 hp
Housing MaterialStainless steel
Housing Material - Pumps316 Stainless Steel
HP2
HP - Pumps2 hp
Hz60
Impeller DesignClosed
Impeller MaterialStainless steel
Impeller TypeClosed
IncludesPump Controller, Tank
Includes - Constant Pre.Pump Controller, Tank
Includes ControllerYes
Inlet1"
Inlet Size - Pumps1 in NPT
Installation PositionHorizontal
Intake and Discharge Si.1 in , 1 in
Intake TypeNPT
ItemConstant Pressure Boost.
Item - Constant Pressur.Constant Pressure Boost.
Manufacturer Warranty L.3 yr
Manufacturers Warranty .1 yr
Max. Liquid Temp.250 Degrees F
Max. Pressure100 psi
Max. Pressure - Pumps100 psi
Max. PSI Boost @ 0-10 G.80
Max. PSI Boost @ 10-20 .60
Max. PSI Boost @ 20-30 .Not Rated
Max. Temp - Pumps250 Degrees F
Maximum Feet of Head215 ft
Maximum Flow Rate10 gpm
Maximum Media Temperatu.212 Degrees F
Maximum RPM3,500 RPM
Minimum Flow Rate5 gpm
Motor Ambient Temp. Rat.40 Degrees C
Motor Ambient Temperatu.104 Degrees F
Motor Ambient Temperatu.34 Degrees F
Motor EnclosureTEFC
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure BroadTEFC
Motor RPM3,500 RPM
Motor TypeAC
Nameplate Voltage230V AC
NEMA Rating - Pumps3R
Number of Stages6
Number of Stages - Pumps6
Outlet1"
Outlet Size - Pumps1 in NPT
Phase1
Phase - Pumps1
Pressure Boost (Maximum)80 psi
Pressure Boost (Minimum)60 psi
PrimingManual
Pump Housing MaterialStainless steel
Pumping ApplicationFiltration Systems, Fir.
Seal MaterialCarbon/Ceramic/Rubber
Seal TypeMechanical
Self-PrimingNo
Seriese-AB2
Stages6
StandardsCE Certified, cULus Lis.
System Pressure (Maximu.100 psi
Tank (Gal.)2
Tank (Gal.) - Pumps2
Tank Capacity2 gal
Tank TypeIncludes Pressure Tank
Thermal Overload Protec.Yes
Voltage230
Voltage - Pumps230V AC
Wetted MaterialStainless steel
Wetted MaterialsStainless steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB07HJPTTRY1842.211In StockGoulds Pump1842.21 @ 1
AmazonTPB07HJPTTRY1860.821In Stock2GOULDS WATER TECHNOLOGY1860.82 @ 1
thumbzoomsustainablesupply.comC28873593364.431In StockGoulds Water Technology55.03364.43 @ 1
thumbzoomZoroG43337293636.01In Stock75Goulds Water Technology55.03636.0 @ 1
thumbzoomRaptor SuppliesCD2FFQ4401.63272251In StockGOULDS WATER TECHNOLOGY4401.6327225 @ 1
