Honeywell BZ-2R-A2

B00LPNBQAY

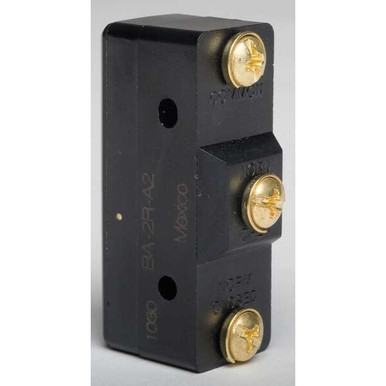

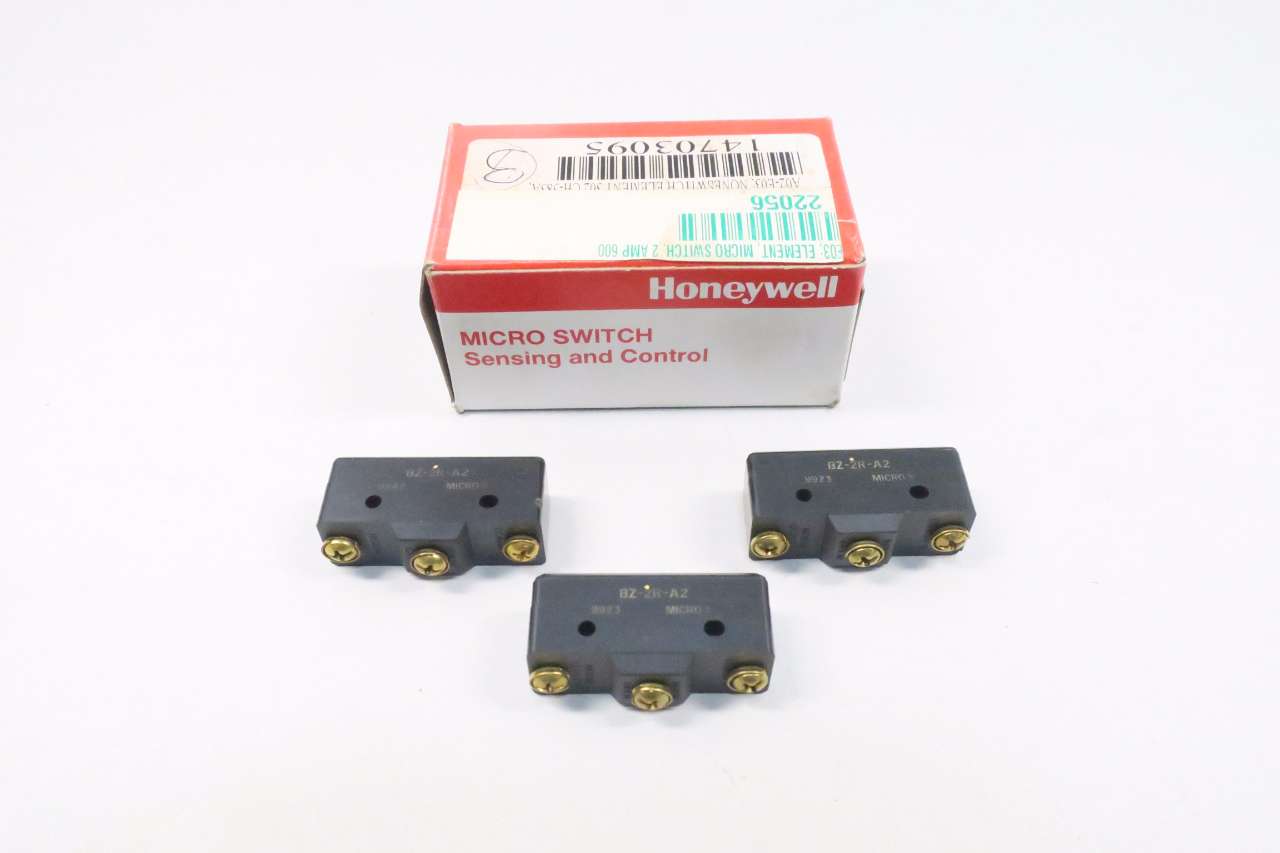

HONEYWELL S&C BZ-2R-A2 BASIC SWITCH, PIN PLUNGER, SPDT, 15A, 600V (5 pieces)

HONEYWELL S&C BZ-2R-A2 BASIC SWITCH, PIN PLUNGER, SPDT, 15A, 600V (5 pieces)zoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15 A @ 48.
Actuator Length1.94"
Actuator TypeRound (Pin Plunger), Pl.
Actuator Type - Snap Ac.Pin, Plunger
Base Product NumberBZ-2
Basic Actuator Type - S.Plunger
BrandHoneywell
Casing MaterialPhenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15A (AC), 500mA (DC), 1.
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock397
DC Contact Rating - Sna.15 A @ 240 V, 15 A @ 24.
Depth0.069"
Depth - Snap Action Swi.0.07 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.002" (0.05mm), 0.0004.
Digi-Key Part Number480-2419-ND
Electrical Connection -.Screw
Electrical Life-
Family NameMICRO SWITCH B Series P.
Features-
Head TypePlunger
Height0.95"
Height - Snap Action Sw.0.95 in
Housing MaterialPhenolic
Ingress Protection-
International ShippingNo
ItemIndustrial Snap Action .
Lead Free Status / RoHS.RoHS Compliant
Lead TimeExpected to ship in 1-2.
Length1.94"
Lever Actuator Length -.Not Applicable
ManufacturerHoneywell Sensing and P.
Manufacturer Part NumberBZ-2R-A2
Manufacturer Product Nu.BZ-2R-A2
Manufacturer Standard L.38 Weeks, 4 Weeks
Max. Pretravel0.015 in
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting Hole Size0.14 in
Mounting TypeChassis Mount, Surface .
MpnBZ-2R-A2
Number of Circuits - Sn.1
Operating Force2.5 to 3.61 N Oz., 255 .
Operating Position0.625" (15.9mm)
Operating Temp. Range-67 Degrees to 257 Deg.
Operating Temperature-55, -55?C ~ 125?C
Over Travel0.0050 in
Overtravel0.005" (0.13mm)
PackageBulk
PackagingBulk Pack
Pretravel0.015" (0.4mm)
Product StatusActive
Release Force4.00 oz, 113gf
SeriesBZ/BA/BM/BE/6AS Series,.
SKUZO-G3113442
Snap Action Switch TypeIndustrial Snap Action .
Standard Package50
StandardsCE, CSA, UL, UL, CE, CS.
SubCategoryElectrical
Switch FunctionOn-Mom
Terminal TypeScrew
TerminationScrew
Termination StyleScrew Terminal
Type of ActuatorPin Plunger
UPC78454916065
Voltage Rating125/250/480VAC, 125 V
Voltage Rating - AC125V, 125 V
Voltage Rating - DC125V, 125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBZ-2R-A25.081477HONEYWELL5.08 @ 100
thumbzoomiodPartsBZ-2R-A25.2550850Honeywell5.25 @ 100
thumbzoomComponent Electronics178-1729.811100Honeywell9.81 @ 100
thumbzoomCarlton Bates Company7845491606510.861268HONEYWELL10.86 @ 100
thumbzoomsustainablesupply.comC121012712.031100Honeywell0.112.03 @ 100
standardelectricsupply.com2671012.921470Honeywell12.92 @ 100
thumbzoomDigi-Key124857012.93151298Honeywell Sensing and Productivity Solutions12.9315 @ 100
thumbzoomNewark23F400913.461408HONEYWELL13.46 @ 100
thumbzoomJameco184582217.955100Honeywell17.95 @ 100
grainger.caWWG6DXC118.587891661100HONEYWELL MICRO SWITCH0.118.58789166 @ 100
thumbzoomZoroG311344219.291427Honeywell Micro Switch0.119.29 @ 100
thumbzoomTMEBZ-2R-A220.811100HONEYWELL20.81 @ 100
thumbzoommidwestapplianceparts.comBZ-2R-A2-HM-P22.071100Honeywell22.07 @ 100
AmazonTPB00E2Y6YAU23.9711002Honeywell Micro Switch23.97 @ 100
RS Delivers333-44526.1121154Honeywell26.112 @ 100
us.rs-online.com7011911228.731100Honeywell28.73 @ 100
thumbzoomsimsupply.comZO-G311344228.811397Honeywell28.81 @ 100
thumbzoomNRI IndustrialD54572929.941100HONEYWELL29.94 @ 100
thumbzoomRaptor SuppliesAE8LMR37.48709251100HONEYWELL37.4870925 @ 100
alliedcontrols.comBZ-2R-A248.841100Honeywell48.84 @ 100
thumbzoomkempstoncontrols.co.ukBZ-2R-A23352.051100Honeywell3352.05 @ 100
