CAI - HUBBELL WIRING DEVICE-KELLEMS HBL330P7W

B07J9MKJ5Y

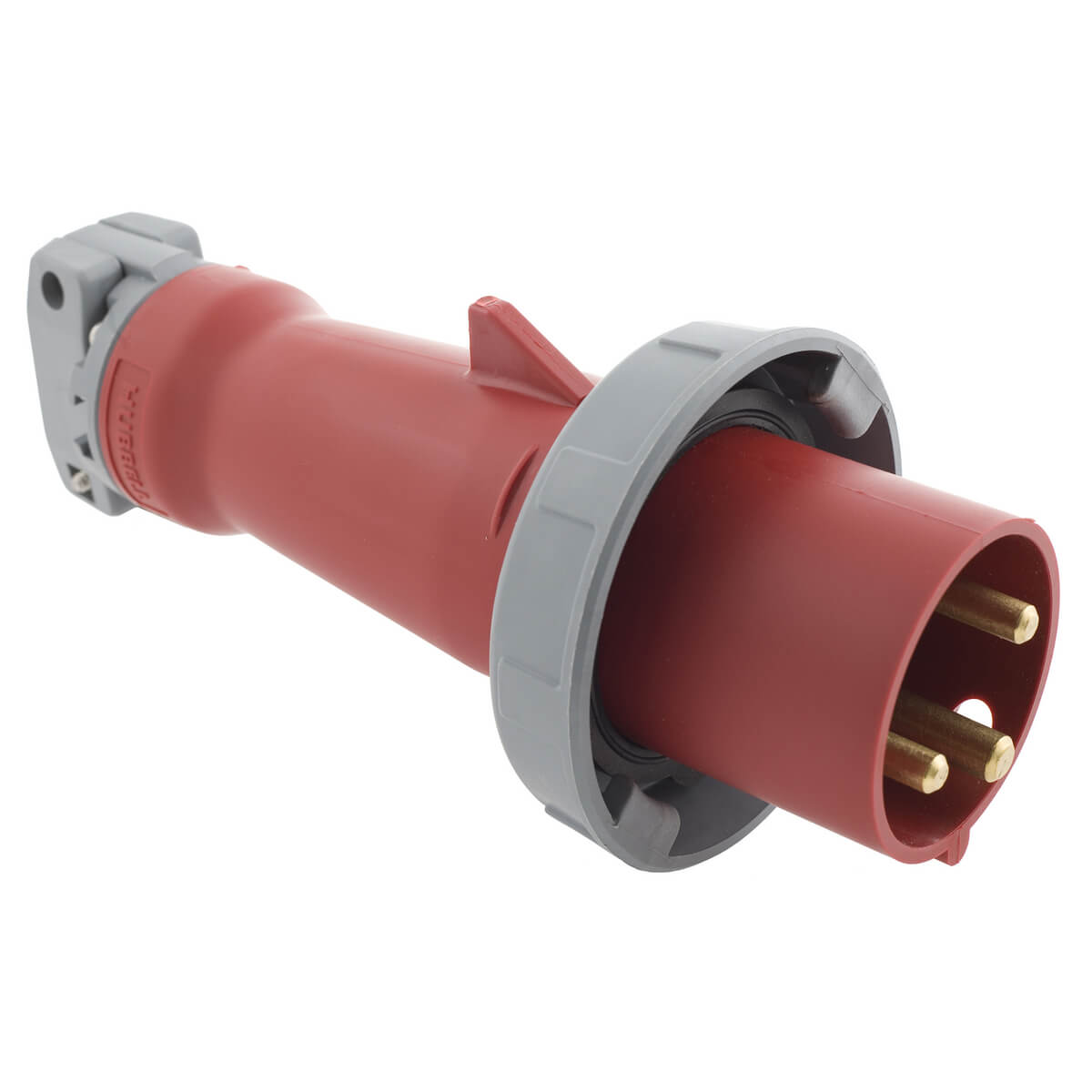

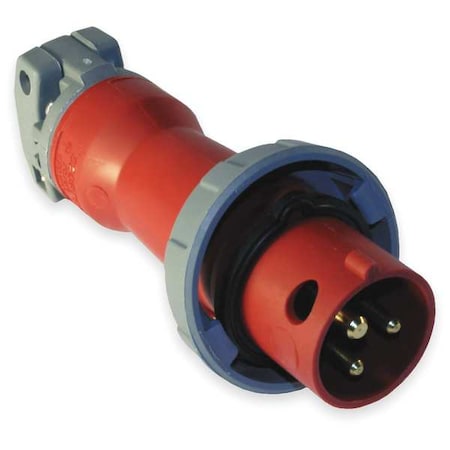

Hubbell Wiring Device-KELLEMS 30 Amp, 1-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Red

Hubbell Wiring Device-KELLEMS 30 Amp, 1-Phase Zytel 801 Nylon Watertight Pin and Sleeve Plug, Redzoom

Attributes

Key Value
Amperage30A
Amperage Rating30A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Connectio.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#12 AWG to #8 AWG
Body MaterialZytel 801 Nylon
Body Material - Pin and.Zytel 801 Nylon
BrandHubbell
Built-In Strain ReliefYes
Cap TypeNo Cap or Cover
Case MaterialNon-Metallic
ColorRed
Color - Plugs and Recep.Red
Color FamilyRed
Connection DescriptionWater Resistant
Connection OrientationStraight
Country of OriginUS - United States
Country of Origin (subj.United States
Current Rating30 A
Current Stock7
Display TypeStandard Sized
ECCNEAR99
Face Diameter1.6 in
Family SeriesHubbell Plugs & Recepta.
FeaturesWatertight and Abuse Re.
For Maximum Cable Diame.1.25 in
For Minimum Cable Diame.0.5 in
Gross Weight1.47 lbs
GroundingGrounded
Grounding StyleIEC
Horsepower Rating7 1/2 hp
Housing ColorRed
Housing MaterialNon-Metallic
HP-
International ShippingNo
IP RatingIP67
ItemIEC Pin and Sleeve Plug
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL330P7W
Lockout-TagoutYes
ManufacturerHubbell
Manufacturer Part NumberHBL330P7W
MaterialComposite
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
MpnHBL330P7W
NEMA Enclosure Rating4X
Net Weight0.81 lbs
No. of Poles2
No. of Wires3
Number of Poles2
Number of Wires3
Overall Length8.04 in
Phase1
Phase - Electrical1
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Product SeriesIEC Watertight
Rated Voltage480V AC
Resistance PropertiesImpact Resistant, Moist.
Reverse ServiceNo
ShroudedYes
SKUZO-G0887153
StandardCSA Standard C22.2 No. .
StandardsC22.2 No. 182.1, CSA Ce.
StyleStandard Service
SubCategoryElectrical
Switch RatedNo
Temperature Range (F)-40-167 ?F
Terminal TypeScrew
TypePlug, Watertight Plug
UL 94 Flammability Rati.HB
UNSPSC39121402
UPC783585403601
UPC Code783585403601
Voltage480VAC, 480V, 480 V
Voltage - Plugs and Rec.480V AC
Voltage Color CodeRed
Voltage Rating480V AC
Wire Connection TypeScrew Terminals
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL330P7W181.951In StockHubbell181.95 @ 1
thumbzoomZoroG0887153272.041In StockHubbell1.46272.04 @ 1
thumbzoomsimsupply.comZO-G0887153272.281In StockHubbell272.28 @ 1
thumbzoomsustainablesupply.comC1168200292.411In StockHubbell1.46292.41 @ 1
thumbzoomMRO Supply1022124302.671In StockHubbell Wiring302.67 @ 1
standardelectricsupply.com249343324.291In StockHubbell324.29 @ 1
thumbzoomGalcoHBL330P7W-HBBL357.481In StockHubbell1.47357.48 @ 1
Newark14C5187413.141In StockHUBBELL WIRING DEVICES413.14 @ 1
us.rs-online.com70321036417.131In StockHubbell Wiring Device-Kellems417.13 @ 1
Graybar88126673517.2721In StockHubbell Wiring Device - Kellems517.272 @ 1
thumbzoomRaptor SuppliesAB3TNY613.3804561In StockHUBBELL WIRING DEVICE-KELLEMS613.380456 @ 1
