Hubbell HJ1004BPK25

mpnHJ1004BPK25
brandname: Hubbell Wiring Device-Kellems
manufacturername: Hubbell Wiring Device-Kellems

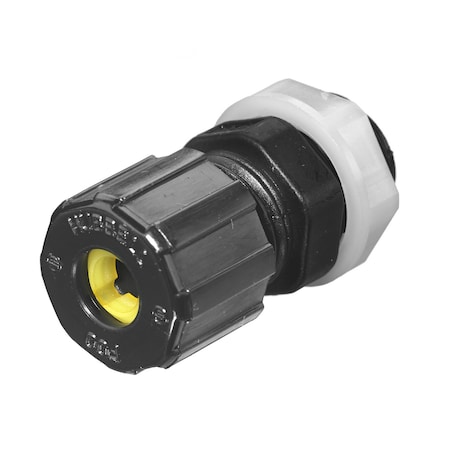

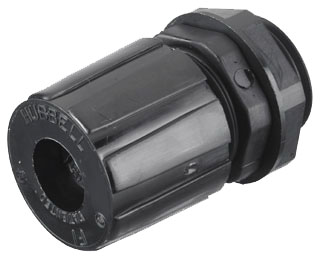

Hubbell HJ1004BPK25 Junior Cord Connector, 0.15" to 0.21" Cable, 3/8", Black (Pack of 25)

Hubbell HJ1004BPK25 Junior Cord Connector, 0.15" to 0.21" Cable, 3/8", Black (Pack of 25)

zoom

Brand: Hubbell
PartNumber: HJ1004BPK25
Model: HJ1004BPK25
Color: See Image
PackageQuantity: 1
Binding: Misc.
Manufacturer: Hubbell
Label: Hubbell

Attributes

Key	Value
Angle	Straight
Application	GOTCHA ring technology .
Approvals	CSA, UL
Brand	Hubbell Wiring Device-K.
Cable Diameter (in)	0.15-0.21 "
Cable Diameter (mm)	3.81-5.33 mm
Cable Opening Max.	0.21 in
Cable Opening Min.	0.15 in
Cable Style	Round
Carton Quantity	5
Clamping Range	0.15 to 0.21 in.
Color	Black
Composition	Non-Metallic
Cord dia	15 in- 0.21 in
Cord Dia. Range	0.15-0.21 in (3.7-5.3 m.
Display Size	3/8 NPT
Environmental Rating	Suitable For Use In Wet.
Family Series	Hubbell Cable Entries
Grip Type	Bushing Grip with Strai.
Gross Weight	0 lbs
Hazardous Rated	No
Height	0.81" (20.6mm)
Hub Size	3/8, 1/4 NPT
Inner Diameter	0.36 CM Check
Item	Junior Cord Connectors
Item Number	HJ1004BPK25
Knockout Size	0.67 to 0.68 in
Length	1.44 in
Manufacturer	Hubbell
Manufacturer Part Number	HJ1004BPK25
Material	Nylon
Maximum Cable Diameter .	0.21 "
Maximum Cable Diameter .	5.33 mm
Minimum Cable Diameter .	0.15 "
Minimum Cable Diameter .	3.81 mm
Mounting Hardware Mater.	Locknut or Tapped Openi.
Nema Rating	IP66
Net Weight	0 lbs
Number of Cables	1
Number Of Conductors	Single
Product Header	Straight Male Cord Conn.
Protection Class	Connector, Cord Grip
Quantity	25/Pack
RoHS	No
Series	Miniature
Special Features	Liquidtight
Split Frame	No
Standard	UL Listed
Standards	UL Listed, CSA Certified
Style - Connector	Straight Male
Temp. Rating	Minimum -30 Deg F to 22.
Temperature Range	-34 to 107 C
Thread Length	0.41 in.
Type	Connector
UPC Code	783585022932
