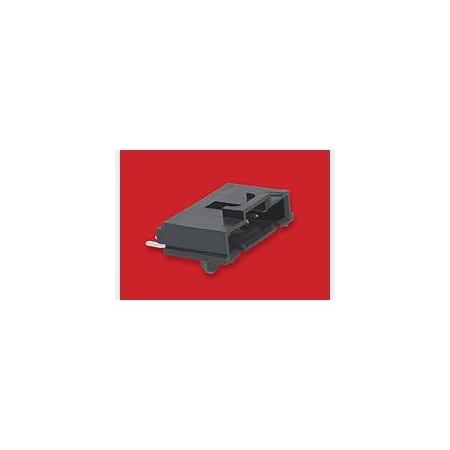

MOLEX 15-91-3164 Header Connector,PCB Mount,RECEPT,16 Contacts,PIN,0.1 Pitch,SURFACE MOUNT Terminal

mpn15-91-3164
brandname: MOLEX
manufacturername: MOLEX

MOLEX 15-91-3164 Header Connector,PCB Mount,RECEPT,16 Contacts,PIN,0.1 Pitch,SURFACE MOUNT Terminal

MOLEX 15-91-3164 Header Connector,PCB Mount,RECEPT,16 Contacts,PIN,0.1 Pitch,SURFACE MOUNT Terminal

zoom

PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	70634-0015
Applications	Automotive, General Pur.
Base Product Number	001591
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER SMD R/A 16P.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	0015913164-ND
Family Name	SL
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.215" (5.45mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0015913164
Manufacturer Standard L.	22 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Surface Mount, Right An.
Number of Circuits	16
Number of Contacts	16
Number of Positions	16
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Tube
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	SL 70634, 70634 Series
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder, Surface Mount
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 15-91-3164	5.34	12	336		MOLEX		5.34 @ 12
	Onlinecomponents.com	15-91-3164	5.49	1	360		MOLEX / WALDOM		5.49 @ 1
	jensentools.com	10152412	7.12	1	In Stock		Molex		7.12 @ 1
	Newark	55H2273	7.65	360	In Stock		MOLEX		7.65 @ 360
	Digi-Key	3124288	7.77339	360	In Stock		Molex		7.77339 @ 360
	us.rs-online.com	70775692	9.61	1	In Stock		Molex Incorporated		9.61 @ 1
	Radwell	15-91-3164	14.0	180	In Stock		MOLEX		14.0 @ 180
	Zoro	G2758573	92.28	1	In Stock		Molex		92.28 @ 1
