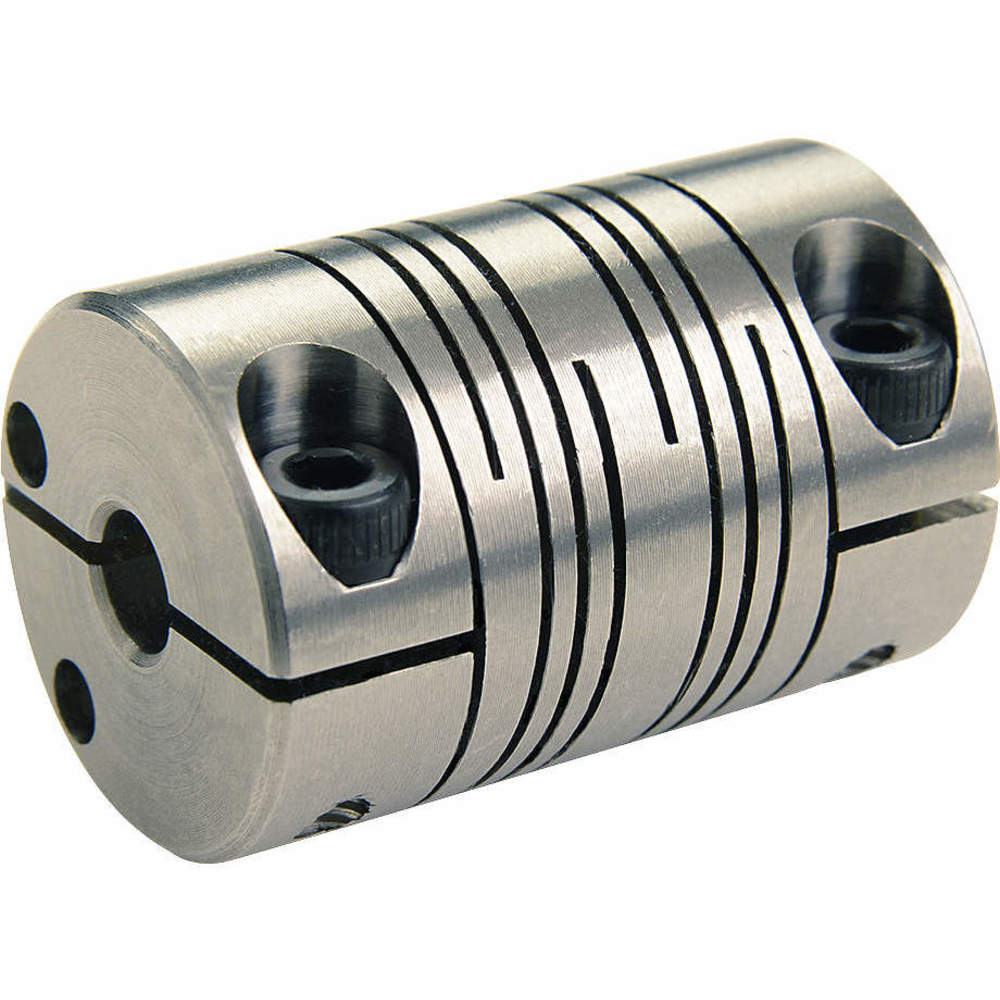

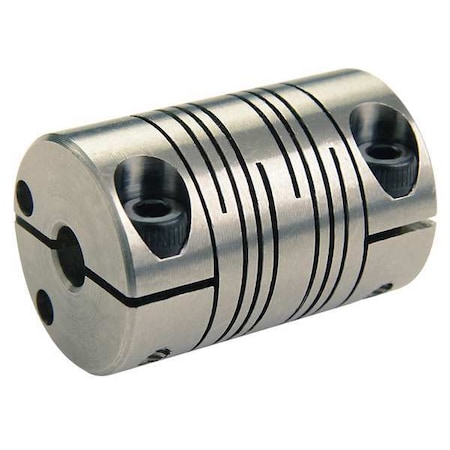

Ruland Manufacturing Co Inc FCMR38-16-16-SS - FCMR38-16-16-SS Beam Coupling, Clamp Type 16mm Bore X 16mm Bore

Ruland Manufacturing Co Inc FCMR38-16-16-SS - FCMR38-16-16-SS Beam Coupling, Clamp Type 16mm Bore X 16mm Borezoom

Attributes

Key Value
Angular Misalignment3?
Axial Motion0.38 mm
B1 Max Shaft Penetration27.3 mm
B2 Max Shaft Penetration27.3 mm
Balanced DesignYes
Bore (B1)16 mm
Bore Dia.16mm x 16mm
Bore Tolerance+0.025 mm / -0.000 mm
Cap ScrewM6
Clearance Dia. (In.)1.642 in
Clearance Dia. (mm)41.71
Clearance Diameter (C) .41.71 mm
Country of OriginUSA
Dynamic Torque Non-Reve.9.91 Nm
Dynamic Torque Reversing4.96 Nm
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
Hex Wrench Size5.0 mm
ItemMotion Control Coupling
Length (L)57.2 mm
Length through Bore26.47 mm
Length through Bore (In.1.042
Length through Bore (mm)26.47
ManufacturerRuland Manufacturing
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Angular Misalignme.3 Degrees
Max. Parallel Misalignm.0.03 in
Maximum Speed6,000 RPM
Min. Bore (mm)16
Moment of Inertia83.407 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
Number of Screws2 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)38.1 mm
Outside Dia.38.1 mm
Outside Dia. (In.)1.5
Outside Dia. (mm)38.1
Overall Length57.2 mm
Overall Length (In.)2.25
Overall Length (mm)57.2
Parallel Misalignment0.76 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBlack Oxide
Screw MaterialAlloy Steel with
Screw SizeM6
Screw Size (mm)M6
Screw TypeCap Screw
Seating Torque16 Nm
Shaft Locking Type - Co.1 Piece Clamp
SizeFCMR38
Small Bore (B2)16 mm
Static Torque19.82 Nm
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torsional Stiffness0.27 Deg/Nm
Torsional Stiffness (De.0.031
UNSPC31163003
UPC634529043981
UPC Code63452904398
Weight (lbs)0.778000
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers689-9705216.20412Ruland216.204 @ 1
AmazonTPB0060M93H8229.241In Stock5Ruland Manufacturing229.24 @ 1
us.rs-online.com72177057271.551In StockRuland Manufacturing271.55 @ 1
thumbzoomRulandFCMR38-16-16-SS312.541In StockRuland0.778312.54 @ 1
thumbzoomZoroG8387915324.7711Ruland1.5324.77 @ 1
thumbzoomsustainablesupply.comC1644884336.371In StockRuland Manufacturing1.5336.37 @ 1
Grainger30UU43346.01In Stock15RULAND MANUFACTURING346.0 @ 1
thumbzoomRaptor SuppliesAF9ULA514.6290631In StockRULAND MANUFACTURING514.629063 @ 1
