- mpn50738
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

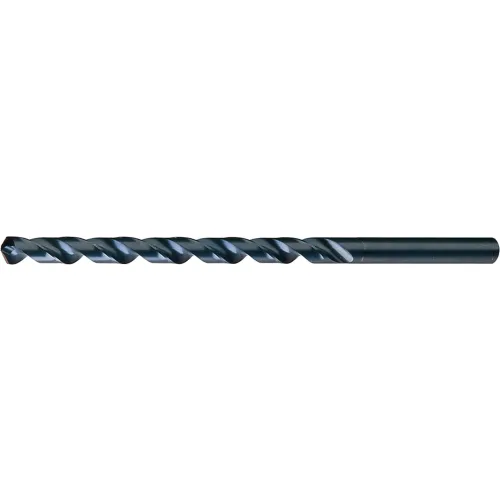

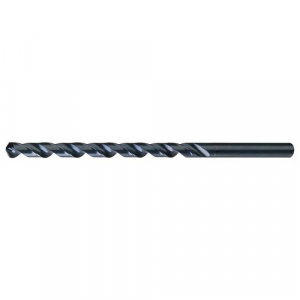

Chicago-Latrobe 50738 120X Extra Long General Purpose Heavy Duty Taper Length Drill, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 12 in OAL, HSS, Black Oxide (Each)
- Brand: Chicago Latrobe
- PartNumber: 50738
- PackageQuantity: 1
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Alloy Ste. |
| Application | For Drilling Carbon Ste. |
| Bit Dia. | 9/32" |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 9 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2813 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2812" |
| Diameter (Fraction) | 9/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 9/32 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0845 in |
| Drill Size - Decimal In. | 0.2812 in |
| Drill Size - Fraction | 9/32 in |
| Drill Size System | Fractional |
| Drill Style | Extra Length Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 9 in, 9.0000" |
| Flute Length (Metric) | 228.60 mm. |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Extra Long Drill Bit |
| List Number | 120X |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 9 in |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | 50738 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 12 in, 12.0000" |
| Overall Length (Metric) | 304.80 mm. |
| Point Angle | 118 deg, 118? |
| Point Style | Notched |
| Point Type | K-Notch, Notched |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 120X |
| Shank Configuration | Straight |
| Shank Dia. | 17/64 in |
| Shank Length | 3.0000", 3 in |
| Shank Length (Metric) | 76.20 mm. |
| Shank Size | 9/32 in, 0.2812", 0.281" |
| Shank Size (Metric) | 7.14 mm. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G2986249 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 120X |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 9/32" |
| Type | Extra Long General Purp. |
| UPC | 662355507384 |
