Chicago Latrobe 53572

B00462RIDU

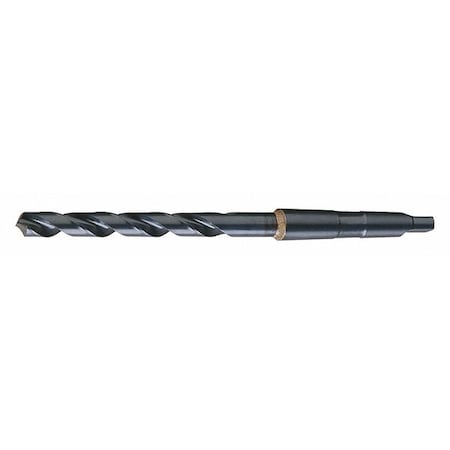

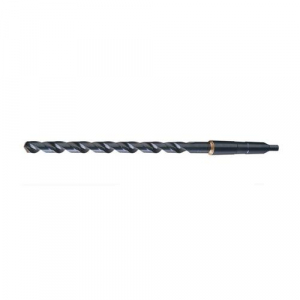

Chicago Latrobe 110S High-Speed Steel Taper Shank Drill Bit, Black Oxide Finish, #3 Morse Taper Shank, 118 Degree Conventional Point, 1-1/8" Size

Chicago Latrobe 110S High-Speed Steel Taper Shank Drill Bit, Black Oxide Finish, #3 Morse Taper Shank, 118 Degree Conventional Point, 1-1/8" Sizezoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
ApplicationFor Drilling Carbon Ste.
Coolant ThroughNo
Cutting Depth7-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent1.1250
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter1.1250"
Diameter (Fraction)1-1/8"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 Degrees
Drill Bit Size1 1/8 in
Drill ConstructionGeneral Purpose
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in /-0.0015 in
Drill Size - Decimal In.1.125 in
Drill Size - Fraction1-1/8 in
Drill Size SystemFractional
Drill StyleTaper Shank Drill
FinishBlack Oxide/Steam Oxide
Flute Length7-1/8 in, 7 1/8 in, 7.1.
Flute Length (Metric)180.97mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
ItemTaper Shank Drill Bit
List Number110S
MaterialHSS
Maximum Drilling Depth7 1/8 in
Morse Taper#3
Number of Flutes2
Overall Length11.7500", 11 3/4 in, 11.
Overall Length (Metric)298.45mm
Point Angle118 deg, 118?
Point StyleRadial
Point TypeRadial
Point typeRadial
Series110S
Shank Configuration#3 Morse Taper
Shank Length4.6250"
Shank Length (Metric)117.47mm
Shank Taper Designation#3 Morse Taper
Shank TypeTaper
StandardsANSI
Style110S
Surface ConditionSteam Oxide
Taper Shank SizeMT3
Through Coolant (Yes/No)No
Tool Size1-1/8"
TypeGeneral Purpose

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply6131171117.081In StockChicago-Latrobe117.08 @ 1
thumbzoomZoroG2987140123.9911Chicago-Latrobe1.93123.99 @ 1
thumbzoomusmegastore.com53572136.01In StockChicago-Latrobe136.0 @ 1
thumbzoomMegadepot53572136.01In StockChicago-Latrobe136.0 @ 1
thumbzoomheavydutydepot.com53572136.01In StockChicago-Latrobe136.0 @ 1
AmazonB00462RIDU153.381In StockChicago-Latrobe153.38 @ 1
