Cleveland C12835

mpnC12835
brandname: CLEVELAND
manufacturername: CLEVELAND

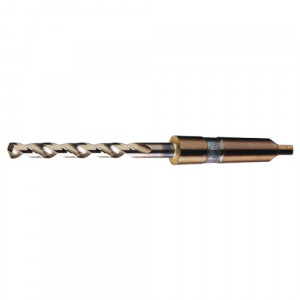

Cleveland 2440 Cobalt Steel Taper Shank Drill Bit, Gold Oxide Finish, #3 Morse Taper Shank, 135 Degree Notch Point, 15/16" (Pack of 1)

Cleveland 2440 Cobalt Steel Taper Shank Drill Bit, Gold Oxide Finish, #3 Morse Taper Shank, 135 Degree Notch Point, 15/16" (Pack of 1)

zoom

Brand: Cleveland
PartNumber: C12835
Model: C12835
Size: 15/16"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Tool Steel, Carbo.
Application	For Drilling Carbon Ste.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	6-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.9375
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Gold Ferrous Oxide
Drill Bit Material	Cobalt Steel
Drill Bit Point Angle	135 Degrees
Drill Bit Point Type	Notched Point
Drill Bit Size	15/16 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.9375 in
Drill Size - Fraction	15/16 in
Finish	Straw Oxide
Finish - Machining	Straw/Bronze
Flute Length	6 1/8 in, 6-1/8 in
Flute Type	Spiral
Grade	Heavy-Duty
Helix Angle	21 Degrees to 34 Degre.
Item	Taper Shank Drill Bit
List Number	2440
Material	M42 HSS-Co 8, HSS-CO 8%.
Material - Machining	Cobalt
Material Grade - Machin.	M42
Maximum Drilling Depth	6 1/8 in
Measurement System	Fractional Inch
Morse Taper	#3
Number of Flutes	2
Overall Length	1 3/4 in, 1-3/4 in
Point Angle	135 deg
Point Type	Notched
Primary Material Applic.	Cast Iron, Stainless St.
Primary Material Applic.	K, M, P
Secondary Material Appl.	Stainless Steel
Secondary Material Appl.	M
Series	2440
Shank Taper Designation	#3 Morse Taper
Shank Type	Taper
Shank Type - Machining	Taper
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	2440
Surface Condition	Straw
Taper Shank Size	MT3
Through Coolant (Yes/No)	No
Tool Size	15/16"
Type	Heavy Duty

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110541	136.51	1	In Stock		Cleveland		136.51 @ 1
	usmegastore.com	C12835	142.1	1	In Stock		Cleveland		142.1 @ 1
	Zoro	G2990939	156.35	1	In Stock	8	Cleveland	1.4	156.35 @ 1
	sustainablesupply.com	C2770754	226.44	1	In Stock		Cleveland	1.4	226.44 @ 1
