CLEVELAND C13843

mpnC13843
brandname: CLEVELAND
manufacturername: CLEVELAND

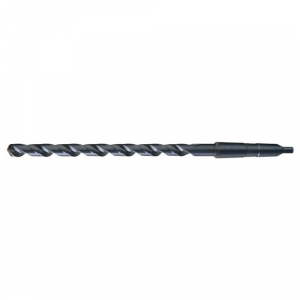

CLEVELAND Taper Shank Drill Bit,Size 11/16" C13843

Brand: CLEVELAND
PartNumber: C13843
Model: C13843
Size: 11/16"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Tool Steel, Carbo.
Application	For Drilling Carbon Ste.
Catalog Page	N/A
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin	USA
Country of Origin (subj.	United States
Cutting Depth	8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.6875
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Steam Oxide
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 ?, 118 Degrees
Drill Bit Point Type	Notched Point
Drill Bit Size	11/16 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.6875 in
Drill Size - Fraction	11/16 in
Finish	Steam Oxide
Finish - Machining	Black Oxide
Flute Length	8 in
Flute Type	Spiral
Grade	Heavy-Duty
Helix Angle	35? to 45?, 35 Degrees .
Item	Taper Shank Drill Bit
Item?	439G95
List Number	940E
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	High Performance
Maximum Drilling Depth	8 in
Measurement System	Fractional Inch
Mfr. Model?	C13843
Morse Taper	#2
Number of Flutes	2
Overall Length	12 in
Point Angle	118 deg
Point Type	K-Notch, Notched
Primary Material Applic.	Cast Iron, Steel, Cast .
Primary Material Applic.	K, P, K; P
Secondary Material Appl.	Cast Iron
Secondary Material Appl.	K
Series	940E
Shank Taper Designation	#2 Morse Taper
Shank Type	Taper
Shank Type - Machining	Taper
Shop By	Closeouts
Spiral Direction	Right Hand
Standards	ASME B94.11M-1993
Style	940E
Surface Condition	Steam Oxide
Taper Shank Size	MT2
Through Coolant (Yes/No)	No
Tool Size	11/16"
Type	Extra Length
UNSPSC	27112801

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
MRO Supply	6110689	127.24	1	In Stock	Cleveland		127.24 @ 1
usmegastore.com	C13843	132.8	1	In Stock	Cleveland		132.8 @ 1
Zoro	G2991009	142.97	1	4	Cleveland	0.83	142.97 @ 1
bscsource.com	C13843	248.29	1	In Stock	Cleveland		248.29 @ 1
Grainger	439G95	250.12	1	In Stock	CLEVELAND		250.12 @ 1
Guardian	68310291	285.36	1	In Stock	Cleveland		285.36 @ 1
