- mpn4Z519
- brandname: DAYTON
- manufacturername: DAYTON

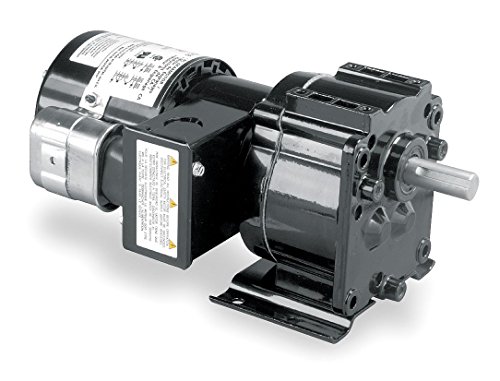

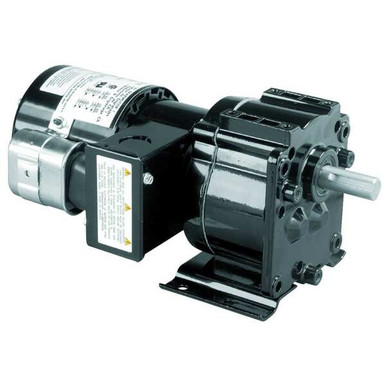

Dayton 4Z519 AC Parallel Shaft Psc Gear Motor, Degrees_Fahrenheit, to Volts, Amps, (
- Brand: Dayton
- PartNumber: 4Z519
- Model: 4Z519
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Ambient (C) | 40 |
| Application | Conveyors, Packaging Eq. |
| Bearings | Heavy Duty Needle Rolle. |
| Brake | 5X400 |
| Brand | Dayton |
| Capacitor Required | Included |
| Current Stock | 97 |
| Enclosure | TEFC |
| Finish | Powder Coat Black |
| Full Load Amps | 1.2/0.63 A, 1.2/0.63 |
| Full Load Torque (In.-L. | 135.0 |
| Gear Case | Die Cast Aluminum |
| Gear Case Material | Die Cast Aluminum |
| Gear Material | Hardened Steel |
| Gear Ratio | 53:1 |
| Gear Type | Helical First Stage/Sub. |
| Gearmotor Brake Type | None |
| Gearmotor Enclosure | Totally Enclosed Fan-Co. |
| Gearmotor Mounting Posi. | All Angle |
| Gearmotor Phase | 1 |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orienta. | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type | AC Gearmotor |
| Gearmotor Voltage | 115/230V AC, 115/230 V . |
| Gears | Hardened Steel, 1st Sta. |
| Housing | Die Cast Aluminum |
| Hz | 50/60, 60/50 |
| Input HP | 1/15 |
| Insulation Class | B |
| International Shipping | No |
| Item | AC Gearmotor |
| Keyway Depth | 1/8 in |
| Keyway Width | 3/16 in |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 8-3/4", 8 3/4 in |
| Length Less Shaft (In.) | 8-3/4 |
| Lubrication | Permanent Heavy Duty Ge. |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Torque | 135 in.-lb. |
| Motor Type | PSC, Permanent Split Ca. |
| Mount Hole Center-to-Ce. | 1.5 in |
| Mount Hole Center-to-Ce. | 4 in |
| Mounting | All Position |
| Mpn | 4Z519 |
| Nameplate RPM | 30 RPM, 30 |
| Number of Brake Discs R. | 1 |
| Output Shaft Diameter | 5/8 in |
| Output Shaft Height | 3.5 in |
| Output Shaft Length | 1 1/2 in |
| Overall Height | 5.13 in |
| Overall Width | 5.5 in |
| Overhung Load | 175 lbs. |
| Overhung Load (Lb.) | 175 |
| Phase | 1 |
| Rotation | Rev. |
| Seals | Lip Type on Input and O. |
| Shaft Dia. (Dimension U) | 5/8 in, 5/8" |
| Shaft Dimensions (In.) | 5/8 x 1 1/2 |
| Shaft Length (Dimension. | 1.5" |
| Shaft Orientation | Parallel |
| Ship Weight | 13 lbs. |
| SKU | ZO-G0763226 |
| Standards | UL Recognized, C-UL Rec. |
| SubCategory | Power Transmission |
| Thermal Protection | None |
| Type | Parallel Shaft |
| UPC | 190735340769 |
| Voltage | 115/230 |
| Voltage Rating | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0763226 | 443.99 | 1 | 154 | | Dayton | 12.05 | 443.99 @ 1 |
| AmazonTP | B000CDAW8U | 457.09 | 1 | In Stock | 5 | DAYTON | | 457.09 @ 1 |
 | sustainablesupply.com | C1689955 | 503.68 | 1 | In Stock | | Dayton | 12.05 | 503.68 @ 1 |
| grainger.ca | DTN4Z519 | 521.0924177 | 1 | In Stock | | DAYTON | 12.05 | 521.0924177 @ 1 |
| emotorpro.com | 4Z519 | 523.74 | 1 | In Stock | | Dayton | 13.0 | 523.74 @ 1 |
 | simsupply.com | ZO-G0763226 | 564.55 | 1 | 97 | | Dayton | | 564.55 @ 1 |
 | Raptor Supplies | AE2QXN | 729.8865405 | 1 | In Stock | | DAYTON | | 729.8865405 @ 1 |
