DURO DU25555

B00F8YCIYY

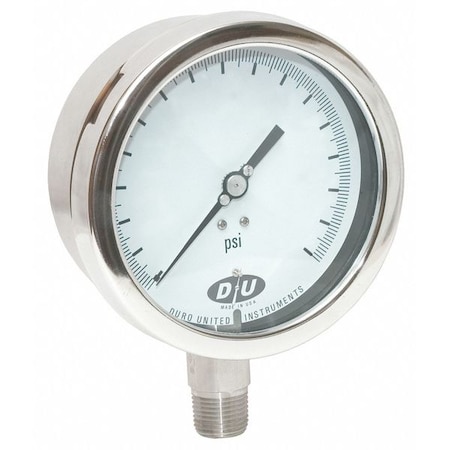

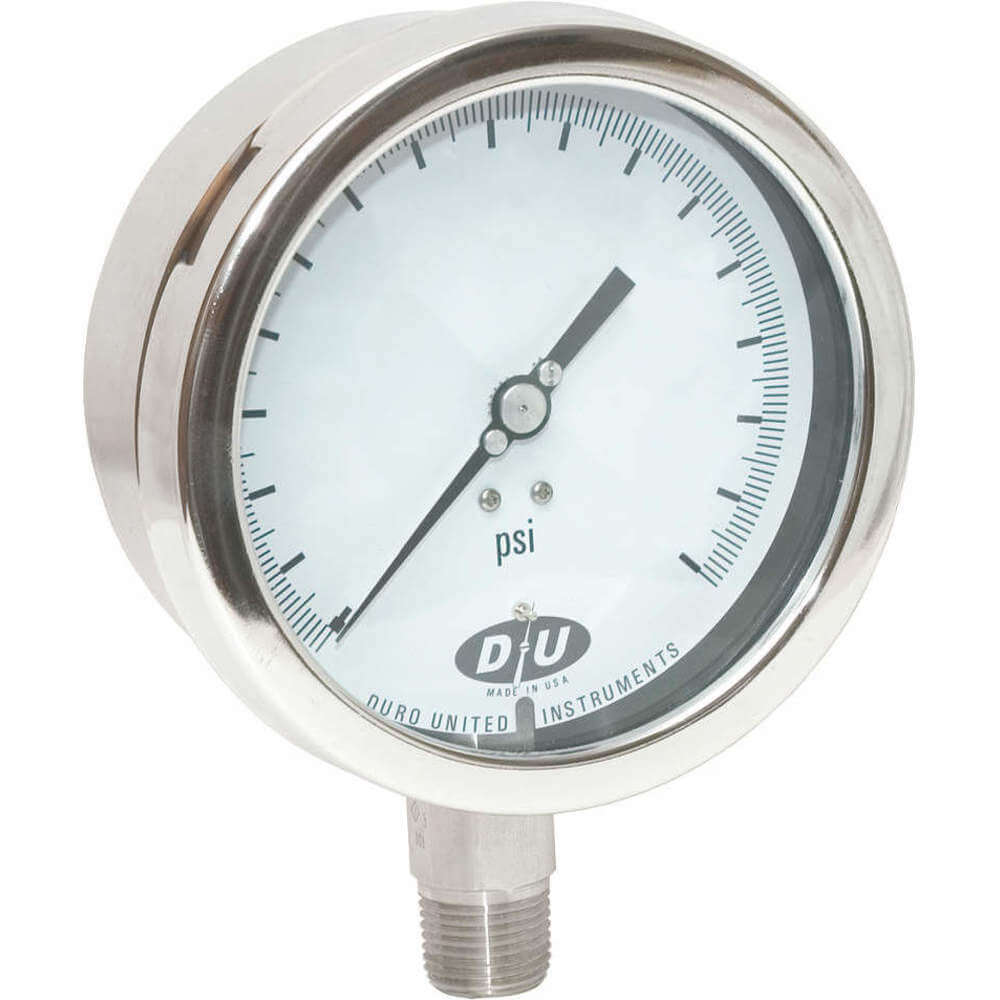

Duro DU25555 Series 20 Stainless Steel Case Bayonet Ring Industrial Pressure Gauge, NIST Certified, 4.5" Dial Size, 1/2" NPT Male Bottom Connection, 0-30 psi Pressure Range

Duro DU25555 Series 20 Stainless Steel Case Bayonet Ring Industrial Pressure Gauge, NIST Certified, 4.5" Dial Size, 1/2" NPT Male Bottom Connection, 0-30 psi Pressure Rangezoom

Attributes

Key Value
(Combined) Gauge CaseStainless Steel
Accuracy+/-0.5%
Accuracy GradeASME B40.100 Grade 2A
Accuracy ScaleFull Scale
Ambient Operating Tempe.-40 Degrees to 275 Deg.
Basic Gauge Case Materi.Stainless Steel
Basic Gauge Lens Materi.Glass
Basic Gauge Sensor Mate.Stainless Steel
Basic Gauge Socket Mate.Stainless Steel
Basic Gauge Wetted PartsStainless Steel
Bezel Mounting TypeBayonet
Blowout Safety BackNo
Calibration Certificate.Yes, NIST with Data
Case ColorSilver
Case ConstructionCorrosion Resistant
Case Depth2.32 in
Case Diameter5.04 in
Case MaterialStainless Steel
Cleaned for Oxygen Serv.No
ColorStainless Steel
Connection LocationLower
Connection Size1/2 in NPT
Country of Origin (subj.United States
Dial ColorWhite
Dial Face ColorWhite
Dial Face MaterialAluminum
Dial Size (In.)4-1/2
Dry Dampening FeatureNone
Field FillableNo
Freeze Resistant Moveme.No
Gauge Accuracy+/-0.50%
Gauge Accuracy GradeGrade 2A - Process
Gauge ApplicationDemanding Industries Su.
Gauge Case ColorStainless Steel
Gauge Case LiquidNone
Gauge Case MaterialStainless Steel
Gauge Connection Locati.Bottom
Gauge Connection Size1/2 in
Gauge Connection TypeMNPT
Gauge Lens MaterialGlass
Gauge Nominal Dial Size4 1/2 in
Gauge Panel MountableNo
Gauge Primary Range Sma.0.2
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 30
Gauge Sensor Material316 Stainless Steel
Gauge Socket Material316 Stainless Steel
Gauge Wetted PartsStainless Steel
Graduations5 psi
Hazardous Location Rati.Not Rated
IncludesPulsation Restrictor
Includes Calibration Ce.NIST with Data
Includes Mounting Hardw.No
Includes Vent PlugNo
IP/NEMA RatingNot Rated
ItemIndustrial Pressure Gau.
Lens MaterialGlass
Lens Material - GaugeGlass
Liquid FilledNo
Liquid-Filled CaseNo
MaterialStainless Steel
Max. Pressure (PSI)30
Movement MaterialStainless Steel
Movement TypeRotary
Nominal Dial Size4 1/2 in
Non-SparkingNo
Operating Temp. Range-40 Degrees to 275 Deg.
Panel-MountableNo
Pointer CharacteristicsLightweight Balanced Co.
Pressure and Vacuum Gau.Pressure Gauge
Pressure Gauge TypeIndustrial Pressure Gau.
Pressure Range TypePressure
Primary Pressure Range0 to 30
Primary Scale Minor Gra.0.2
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/2 in
Process Connection TypeNPT
Range0 to 30 psi
Removable BezelYes
Scale TypeSingle
Sensor MaterialStainless Steel
Sensor TypeBourdon Tube
Series20
Smallest Graduation0.2 psi
Socket MaterialStainless Steel
Vibration ResistanceNone

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8536412121.01In Stock26Duro2.04121.0 @ 1
thumbzoomsustainablesupply.comC1719342245.711In StockDuro2.04245.71 @ 1
thumbzoomRaptor SuppliesAE6FTP307.3159441In StockDURO307.315944 @ 1
