CAI - MARATHON MOTORS 5KC37NN115X

B07J2B1S7S

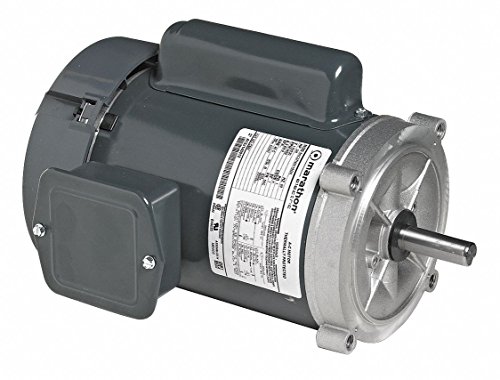

Marathon Motors 3/4 HP Jet Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56C Frame

Marathon Motors 3/4 HP Jet Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56C Framezoom

Attributes

Key Value
Body Dia.5.6 in
Bolt Circle Dia.2 15/16 in
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Frame56C
Full Load Amps9.8, 4.9
HP3/4
Hz60
IncludesShaft Slinger and Gaske.
Ins. ClassB
ItemGeneral Purpose Pump Mo.
Length Less Shaft9 7/8 in
Max. Ambient Temp.40 Degrees C
Motor ApplicationPump
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Sub ApplicationJet Pump
Motor Thermal ProtectionAuto
Nameplate RPM3,450
No. of Speeds1
Nominal Efficiency71.7 %
Overall Length11 3/4 in
PhaseSingle
RPM Range3,001-3,600
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft MaterialCarbon Steel
StandardsCSA, UL Recognized
Usable @ 200VNo
Usable @ 208VNo
Voltage115/230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Weight22 lb
