- mpnEV10-14RB-Q
- brandname: Panduit
- manufacturername: Panduit

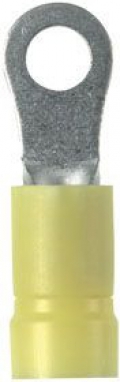

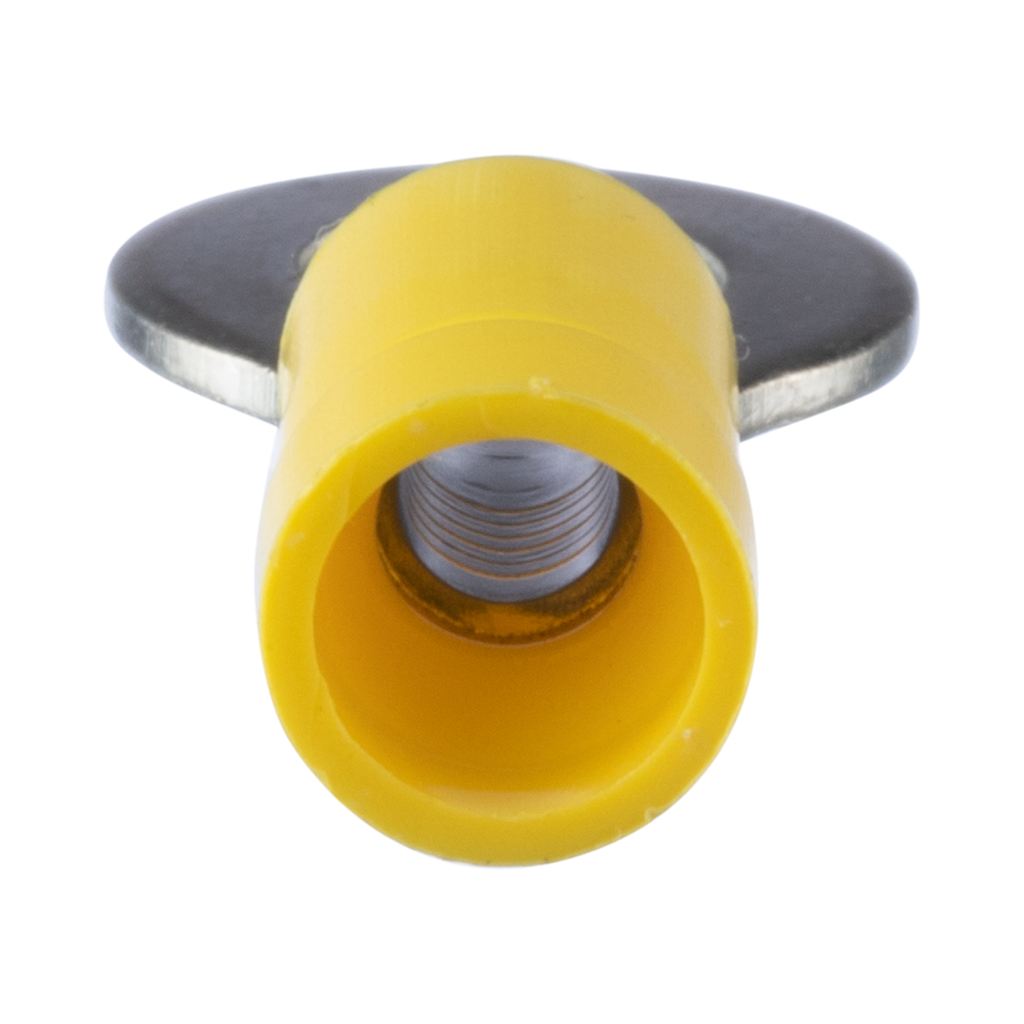

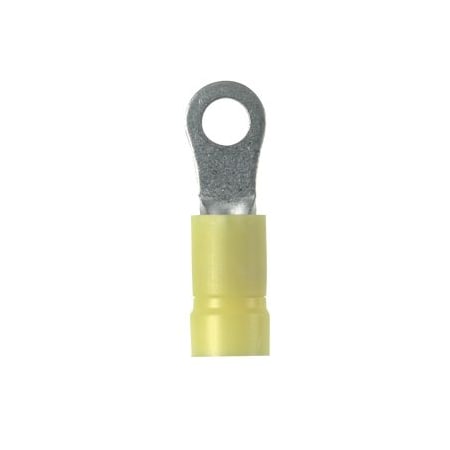

Stronghold Ring Terminal, Vinyl Insulated, 12-10 AWG, 1/4" Stud Size.
- Brand: Panduit
- PartNumber: EV10-14RB-Q
- Model: EV10-14RB-Q
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| ARRA Compliant | Y |
| AWG Range | #10 |
| Barrel Length (In.) | 0.49 |
| Barrel Length (mm) | 12.3 |
| Barrel Type | Funnel |
| Base Material | Copper |
| Base Product Number | EV10 |
| Brand | StrongHold? |
| Buy American Compliant | Y |
| Category | Connectors, Interconnec. |
| Color | Yellow |
| Color Code | Yellow |
| Color Family | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | TW - Taiwan |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| EAN | 00074983281862 |
| ECCN | EAR99 |
| Family Series | Panduit Miscellaneous |
| Features | Butted Seam |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Flammability Rating | UL587-H |
| For Use With | CT-100A, CT-200, CT-600. |
| Gross Weight | 0.005 lbs |
| GTIN Carton | 50074983281867 |
| GTIN Package | 00074983281862 |
| Hazardous Material Flag | N |
| Insulation | Insulated |
| Insulation Diameter | 0.230" (5.84mm) |
| Insulation Diameter (In. | 0.23 |
| Insulation Diameter (mm) | 5.8 |
| Insulation Material | Vinyl |
| Item | Ring Term,Vyl,Insul,12,. |
| Item Number | EV10-14RB-Q |
| Length - Overall | 1.230" (31.24mm) |
| Manufacturer | Panduit |
| Manufacturer Part Number | EV10-14RB-Q |
| Material | Copper, Vinyl |
| Material - Insulation | Vinyl |
| Maximum Copper Conducto. | #10 |
| Maximum Copper Conducto. | #10 |
| Maximum Copper Conducto. | #10 |
| Maximum Metric Conducto. | 6 |
| Maximum Operating Tempe. | 105 |
| Maximum Operating Tempe. | 221 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation. | 0.23 |
| Maximum Wire Insulation. | 5.8 |
| Maximum Wire Size (AWG) | #10 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 250 |
| Min. Order UOM | Piece |
| Minimum Copper Conducto. | #12 |
| Minimum Copper Conducto. | #12 |
| Minimum Copper Conducto. | #12 |
| Minimum Metric Conducto. | 1.5 |
| Minimum Operating Tempe. | 105 |
| Minimum Operating Tempe. | 221 |
| Minimum Wire Insulation. | 0.27 |
| Minimum Wire Insulation. | 6.8 |
| Minimum Wire Size (AWG) | #12 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0.005 lbs |
| Outer Diameter | 0.38 in. |
| Outer Diameter (In.) | 0.38 |
| Outer Diameter (mm) | 9.6 |
| Overall Length (In.) | 1.23 |
| Overall Length (mm) | 31.2 |
| Overall Width (In.) | 0.52 |
| Overall Width (mm) | 13.2 |
| Package | Bulk |
| Packaging Type | Bag |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Product Segment | IEI |
| Product Status | Active |
| Product Type | Ring Terminal |
| Rated Voltage | 600V |
| REACH Status | False |
| RoHS Compliant | Compliant |
| Seam Type | Butted |
| Series | StrongHold? |
| Standard Carton Volume . | 0.1031 |
| Standard Carton Weight . | 0.5000 |
| Standard Package Volume. | 0.0103 |
| Standard Package Weight. | 0.0500 |
| Standards Met | UL Listed 587H E52164; . |
| Std Carton Height In | 4.4 |
| Std Carton Height MM | 111.76 |
| Std Carton Length In | 9.1 |
| Std Carton Length MM | 231.14 |
| Std Carton Width In | 4.35 |
| Std Carton Width MM | 110.49 |
| Std Ctn Qty | 250 |
| Std Package Height In | .85 |
| Std Package Height MM | 21.59 |
| Std Package Length In | 4.55 |
| Std Package Length MM | 115.57 |
| Std Package Width In | 3.25 |
| Std Package Width MM | 82.55 |
| Std. Pkg. Qty. | 25 |
| Std. Pkg. UOM | Piece |
| Stud Hole Size (In.) | 0.25 |
| Stud Hole Size (mm) | 6.3 |
| Stud Size | 1/4 in., 1/4" |
| Stud/Tab Size | 1/4 Stud |
| Sub Brand | StrongHold? |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.040" (1.02mm) |
| Tongue Length (In.) | 0.62 |
| Tongue Length (mm) | 15.6 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.52 |
| Tongue Width (mm) | 13.2 |
| UNSPSC | 39121409 |
| UOM EA PK | PK |
| UPC | 07498328186 |
| UPC Code | 07498328186 |
| Use With | CT-100A, CT-200, CT-600. |
| Volts AC | 600 |
| Width | 0.52 in. |
| Width - Outer Edges | 0.520" (13.21mm) |
| Wire Gauge | 10-12 AWG |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
