- mpnFSD73-6-D
- brandname: Panduit Corp
- manufacturername: Panduit Corp

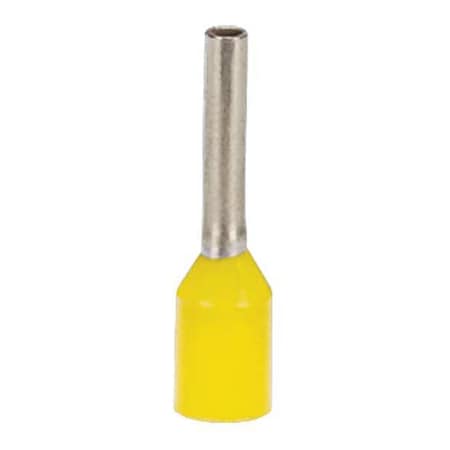

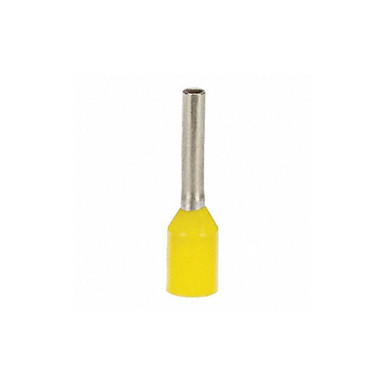

Panduit FSD73-6-D 24 AWG YELLOW INSULATED WIRE FERRULE DIN END SLEEVE (package of 100)


- Brand: Panduit
- PartNumber: FSD73-6-D
- PackageQuantity: 100
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Approvals | CSA |
Barrel Diameter | 0.07 in |
Barrel Finish | Tin Plated |
Barrel Length | 0.17 in |
Barrel Material | Copper |
Base Material | Copper |
Base Product Number | FSD73 |
Brand | Panduit |
Category | Connectors, Interconnec. |
Color | Gray, Yellow |
Color Code | Yellow |
Compatible Grainger Par. | 38YU65, 38YU67 |
Compatible Manufacturer. | CT-1002, CT-1123, CT-25. |
Compatible with Product. | Terminal Block |
Compatible with Series | CT |
Connection Material | Tinned |
Contact Finish | Tin |
Contact Material | Copper |
Contact Plating | Tin |
Copper Conductor Size (. | #24 |
Cover Material | Polypropylene |
Current Stock | 51 |
DIN Standard | DIN46228PART1 |
Environmentally Friendly | Yes |
Factory Pack Quantity | 500 |
Family Series | Panduit Terminals, Pan-. |
Features | Funnel Entry, Seamless . |
Ferrule Diameter | 0.04 in |
Ferrule Material | Copper |
Ferrule Type | Single Wire Standard |
Finish | Tin-Plated |
Finish/Coating | Tin-Plated |
For Use With | CT-1002, CT-1123, CT-25. |
For Wire Size | 24 AWG |
Gender | Female |
Gross Weight | 0 lbs |
In-stock | 1000 |
Insertion Length | 3/8 in |
Inside Dia. | 0.03 in |
Inside Diameter (In.) | 0.03 |
Inside Diameter (mm) | 0.8 |
Insulated | Yes |
Insulation | Insulated |
Insulation Color | Yellow |
Insulation Colour | Yellow |
Insulation Coverage | Partially Insulated |
Insulation Material | Polypropylene, Polyprop. |
Insulation Type | Self-Insulated, Insulat. |
International Shipping | No |
Item | Ferrule |
Item Number | FSD73-6-D |
Length | 0.4", 10.5 mm |
Length - Overall | 10.50mm |
Length - Pin | 6.00mm |
Manufacturer | Panduit |
Manufacturer Part Number | FSD73-6-D |
Material | Copper |
Max. Temp. | 221 Degrees F |
Maximum Conductors | 1 |
Maximum Copper Conducto. | #24 |
Maximum Metric Conducto. | 0.25 |
Maximum Operating Tempe. | 221 Degrees F |
Maximum Operating Tempe. | 105 |
Maximum Wire Insulation. | 0.07 |
Maximum Wire Insulation. | 2 |
Maximum Wire Size | 24 AWG |
Mfr | Panduit Corp |
Minimum Copper Conducto. | #24 |
Minimum Wire Size | 24 AWG |
Mounting Method | Wire |
Mpn | FSD73-6-D |
Net Weight | 0 lbs |
Note | Not UL Listed |
Number of Wires | 1 |
Operating Temperature R. | + 105 C |
Overall Length | 10.5 mm mm, 0.41 in |
Overall Length (in) | 0.41 " |
Overall Length (In.) | 0.41 |
Overall Length (mm) | 10.5 |
Package | Bag |
Packaging Type | Bag |
Pin Length | 6 mm mm |
Pin Length (In.) | 0.24 |
Pin Length (mm) | 6 |
Product Categories | Terminals |
Product Color | Yellow |
Product Material | Copper |
Product Name | Electric Wire Ferrule |
Product Series | Pan-Term Ferrules |
Product Status | Active |
Product Type | Electric Wire Ferrule |
RoHS Compliant | Yes |
RoHs Status | Green |
Series | Pan-Term?, Pan-Term FSD. |
Size | 24 AWG (0.25mm?) |
SKU | ZO-G2276675 |
Special Features | Funnel Entry, Seamless . |
Standards | CSA C22.2 No. 291-14, D. |
Standards Met | DIN 46228 Part 4, CSA C. |
Strip Length | 3/8 in |
Strip Length (in) | 0.38 " |
Style | DIN |
Sub Brand | Pan-Term? |
SubCategory | Electrical |
Termination Style | Crimp |
Type | Single Wire, Ferrule, S. |
UPC | 074983763955 |
UPC Code | 074983763955 |
Wire Range | 24 AWG |
Wire Size | 24 AWG |
Wire Size Range | 24 AWG - 24 AWG |
Wire Strip Length (In.) | 0.37 |
Wire Strip Length (mm) | 9.5 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
| Hotenda | H1485706 | 0.1768 | 1 | 100 | | Panduit | | 0.1768 @ 100 |
  | cbtcompany.com | FSD73-6-D | 0.21 | 1 | 100 | | PANDUIT | | 0.21 @ 100 |
  | Galco | FSD73-6-D-PNDT | 0.21 | 500 | 100 | | Panduit | | 0.21 @ 500 |
  | Platt.com | 0547363 | 0.25 | 1 | 100 | | Panduit | | 0.25 @ 100 |
| Airline Hydraulics | PANDUIT FSD73-6-D | 0.26 | 1 | 100 | | Panduit Corp | | 0.26 @ 100 |
| us.rs-online.com | 70438989 | 0.26061 | 10 | 2570 | | Panduit | | 0.26061 @ 100 |
| Digi-Key | 448646 | 0.315 | 1 | 8605 | | Panduit Corp | | 0.315 @ 100 |
  | Newark | 14AC1978 | 0.318 | 1 | 100 | | PANDUIT | | 0.318 @ 100 |
  | Zoro | G2276675 | 92.49 | 1 | 100 | | Panduit | 0.05 | 92.49 @ 100 |
  | Carlton Bates Company | 07498376395 | 105.0 | 1 | 100 | | PANDUIT | | 105.0 @ 100 |
  | alldataresource.com | PAN-FSD73-6-D | 105.27 | 1 | 100 | | Panduit | | 105.27 @ 100 |
  | simsupply.com | ZO-G2276675 | 109.56 | 1 | 100 | | Panduit | | 109.56 @ 100 |
  | gordonelectricsupply.com | FSD73-6-D | 111.5 | 1 | 100 | 12 | PANDUIT | | 111.5 @ 100 |
| grainger.ca | WWG39AX54 | 145.4515224 | 1 | 100 | | PANDUIT | 0.05 | 145.4515224 @ 100 |
  | turtle.com | PAN FSD73-6-D | 250.01 | 1 | 100 | | Panduit | | 250.01 @ 100 |
  | Raptor Supplies | AH8XRY | 256.9905 | 1 | 100 | | PANDUIT | | 256.9905 @ 100 |
| steinerelectric.com | 205543 | 289.86 | 1 | 100 | | Panduit | | 289.86 @ 100 |
