- mpnXS608B1NAL2
- brandname: Telemecanique Sensors
- manufacturername: Telemecanique Sensors

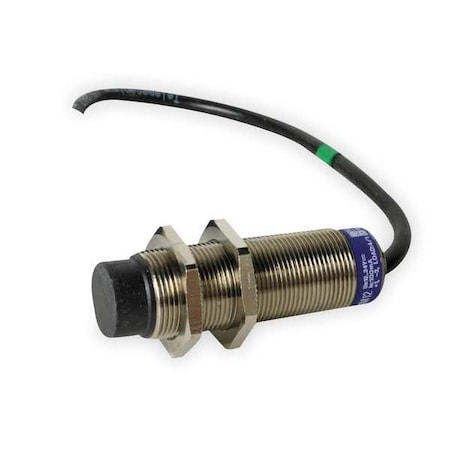

Telemecanique XS608B1NAL2 Universal Series Inductive Proximity Sensor, Multi-Function, Metal 8-mm Barrel, 2-Wire AC/DC Wiring, PNP Input, NO Output, 2-m Electrical Cable
- Brand: TELEMECANIQUE SENSORS
- PartNumber: XS608B1NAL2
- Model: XS608B1NAL2
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| Application | - |
| Basic Proximity Sensor . | Metal |
| Body Style | Cylindrical |
| Brand | Telemecanique |
| Cable Length | 2 m |
| Case Material | Nickel Plated Brass |
| Catalog Number | XS608B1NAL2 |
| Connector | Cable |
| Control Output | DC 3-WIRE (NPN) - 1 N.O. |
| Country of Origin | Indonesia |
| Description/Special Fea. | Extended Range |
| Enclosure | Stainless steel 303 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT. |
| Indicator | Output state 1 LED yell. |
| IP Rating | IP67 ; IP68, 67 |
| Item | Cylindrical Proximity S. |
| Item Type | Inductive proximity sen. |
| Length | 51 mm |
| Length (Straight Wirewa. | 51 mm |
| Made in USA | NO |
| Manufacturer | Schneider Electric |
| Material | Stainless steel |
| Max. Current Load | 200 mA, 200mA |
| Max. Detecting Distance | 2.5 mm |
| Maximum Delay Recovery | 0.2 ms |
| Measurement Range | 0 to 2.5 mm, 2.5 mm |
| Mounting | Flush |
| NEMA Rating | 4x |
| Operating Temp. Range | -13 Degrees to 158 Deg. |
| Operating Temperature | -25-70 A Degrees C |
| Output | NO |
| Output Mode | NO |
| Primary Type | Inductive Proximity Sen. |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Diamet. | 8.0 mm, 8 mm |
| Proximity Sensor Electr. | 2m Cable, 2 M Cable |
| Proximity Sensor Operat. | 2,500 Hz |
| Proximity Sensor Output. | 3 Wire NPN |
| Proximity Sensor Power . | 12 to 48V DC |
| Proximity Sensor Style | Cylindrical Proximity S. |
| Sensing Range | > 0...0.1 in (> 0...2.5. |
| Sensor | 51 MM,INDUCTIVE PROXIMI. |
| Series | XS600 Series |
| Shielded / Unshielded | Shielded |
| Special Features | Stainless steel |
| Standard | IP67 conforming to IEC . |
| Standards | CE Compliance, CSA, RoH. |
| Sub Brand | XS6 |
| Supply Voltage | 12-24 VDC, 12...48 V DC. |
| Supply Voltage Limits | 10-58 V DC |
| Switching Current | 200 mA |
| Termination | 2 M Cable |
| UPC | 785901590088 |
| UPC Code | 785901590088 |
| Warranty Description | Contractual Warranty:18. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| RS Delivers | 198-554 | 84.72 | 1 | 5 | | Telemecanique Sensors | | 84.72 @ 5 |
 | Zoro | G0282475 | 99.29 | 1 | 35 | | Telemecanique Sensors | 0.2 | 99.29 @ 5 |
 | Newark | 89H6723 | 110.18 | 1 | 5 | | TELEMECANIQUE SENSORS | | 110.18 @ 5 |
 | sustainablesupply.com | C1166427 | 114.04 | 1 | 5 | | Telemecanique Sensors | 0.2 | 114.04 @ 5 |
 | National Supply Network | 59757898 | 120.848 | 1 | 5 | | Telemecanique Sensors | | 120.848 @ 5 |
| us.rs-online.com | 70008218 | 121.27 | 1 | 5 | | Telemecanique Sensors | | 121.27 @ 5 |
 | bscsource.com | XS608B1NAL2 | 133.39 | 1 | 5 | | Telemecanique Sensors | | 133.39 @ 5 |
 | crescentelectric.com | 40537 | 140.91 | 1 | 5 | | Telemecanique | | 140.91 @ 5 |
| grainger.ca | TLQXS608B1NAL2 | 145.53861912 | 1 | 5 | | TELEMECANIQUE SENSORS | 0.2 | 145.53861912 @ 5 |
 | Raptor Supplies | AG9FXB | 194.6311965 | 1 | 5 | | TELEMECANIQUE SENSORS | | 194.6311965 @ 5 |
