WEG 00436ET3YAL112M

B007PAYPIQ

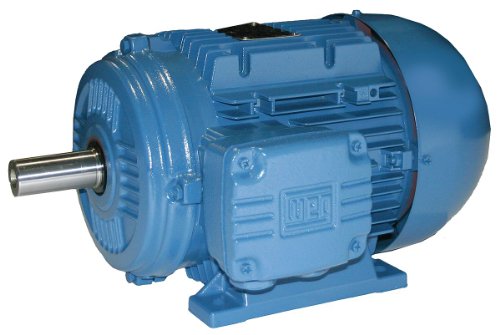

WEG 00436ET3YAL112M W21 IE3 IEC Tru-Metric TEFC (IP55) Multi-Mounting Aluminum Frame Electric Motor, 5.5 HP, 3-Phase, 3505 rpm, 460 V, 60 Hz, Frame 112M

WEG 00436ET3YAL112M W21 IE3 IEC Tru-Metric TEFC (IP55) Multi-Mounting Aluminum Frame Electric Motor, 5.5 HP, 3-Phase, 3505 rpm, 460 V, 60 Hz, Frame 112Mzoom

Attributes

Key Value
CC NumberCC029A
Country of Origin (subj.Multiple
DutyContinuous
Frame112M
Frame MaterialAluminum
Full Load Amps6.6
HP5-1/2
Hz60/50
Ins. ClassF
ItemMetric Motor
kW4.0
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Aluminum
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Nameplate RPM3505
No. of Speeds1
Nominal Efficiency88.5%
Phase3
RPM Range3001-3600
Shaft Dia.28mm
Shaft Length60mm
StandardsUL (E104590), CSA (LR.
Voltage460
Voltage Compatibility460, 208-230/460
