WEG Electric Motor 03736ET3Y200L-W22

B00BC8U4JG

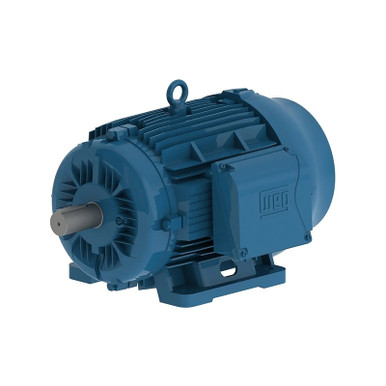

WEG 03736ET3Y200L-W22 37kW 3600 3 60/50 460V IEC-CI

WEG 03736ET3Y200L-W22 37kW 3600 3 60/50 460V IEC-CIzoom

Attributes

Key Value
Amperage Rating61.3 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationIEC Metric
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 50HP 2P 200L WFF2
Dimensions30.197 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %93.6 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight577.00
Family SeriesWEG Electric Motors
FL Amps57.7
FL Efficiency93.6
FlangesWithout Flange
Frame200L
Frame MaterialCast Iron
Frame RemarksFooted, IEC TRU Metric
Frequency60 Hz, 50 Hz
Frequency Rating60 Hz
Full Load Amps59.8
Full Load Amps @ 50Hz67.8, 67.9, 69.8
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz50, 60
Horsepower50 hp
HP50
HP @ 50Hz50
Hz60
Ins. ClassF
Insulation ClassClass F
ItemMetric Motor
Item ConditionFactory New
Item Number03736ET3Y200L-W22
kW37.0
Length Less Shaft657 mm
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number03736ET3Y200L-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:03736ET3Y200L-W22
Model11567830
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3,570
NEMA DesignNone
NEMA Frame200L
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency93.6 %
Nominal Voltage380 VAC
Number of Poles2
Number of Speeds1
Output Rating50 hp
Overall Length767 mm
Part Number03736ET3Y200L-W22
Phase3, 3 ph, Three
Product TypeIEC Metric Motors
RotationCW/CCW
RPM3,600 RPM, 3600/3000, 3.
RPM @ 50Hz2,960
RPM Range3,001-3,600
Service Factor1.25
Service Factor @ 50Hz1
Shaft Dia.55 mm
Shaft Length110 mm
Shaft Size55 mm Dia
Special FeaturesIEC Metric Motors
Speed (RPM)3600
StandardNEMA MG-1
StandardsCE, CSA (LR38324), UL (.
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600rpm
Terminal BoxRight position
UPC:7891327437654
Usable @ 200VNo
Usable @ 208VNo
Voltage380V, 415V, 460V, 660V,.
Voltage (AC)380 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts460//380/415/660/690
Weight568.440000, 536 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply13146884096.961In StockWEG4096.96 @ 1
thumbzoomWalker Industrial03736ET3Y200L-W224115.251In Stock17WEG4115.25 @ 1
thumbzoommotorsandcontrol.com03736ET3Y200L-W224347.51In StockWEG Electric577.04347.5 @ 1
thumbzoomGalco03736ET3Y200L-W22-WEG4506.651In StockWEG Electric4506.65 @ 1
thumbzoomindustrialrefrigerationparts.com03736ET3Y200L-W224563.931In StockWEG568.444563.93 @ 1
kscdirect.comWEG 03736ET3Y200L-W224670.51In StockWEG ELECTRIC CORP4670.5 @ 1
AmazonTPB007PB0I7C4814.411In Stock30WEG4814.41 @ 1
thumbzoomZoroG98334514826.481In Stock26Weg617.04826.48 @ 1
thumbzoomRadwell03736ET3Y200L-W224950.01In StockWEG4950.0 @ 1
thumbzoomPurvis03736ET3Y200L-W225015.121In StockWEG5015.12 @ 1
thumbzoomDealers Electric03736ET3Y200L-W225447.71In StockWeg577.05447.7 @ 1
thumbzoomvfds.com03736ET3Y200L-W225487.01In StockWEG5487.0 @ 1
motionindustries.com047021087038.181In StockWEG Electric Corporation7038.18 @ 1
thumbzoomNational Supply NetworkB8739507314.281In StockWeg Electric Motors7314.28 @ 1
thumbzoomRaptor SuppliesAA2GEX7511.55297751In StockWEG7511.5529775 @ 1
