A. O. Smith 7RA1026

B000LEYIQC

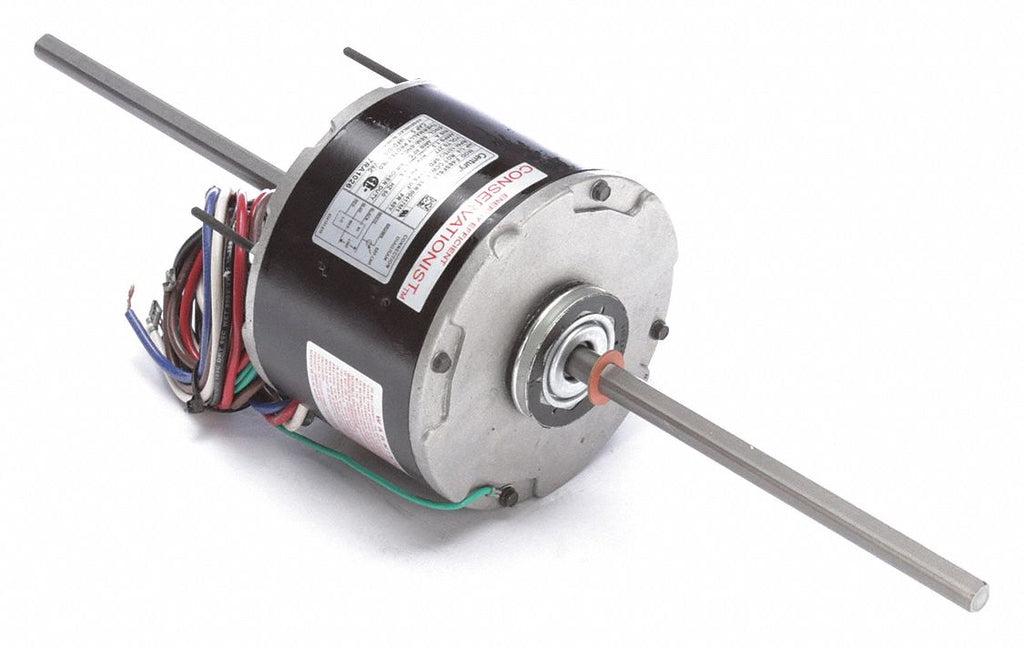

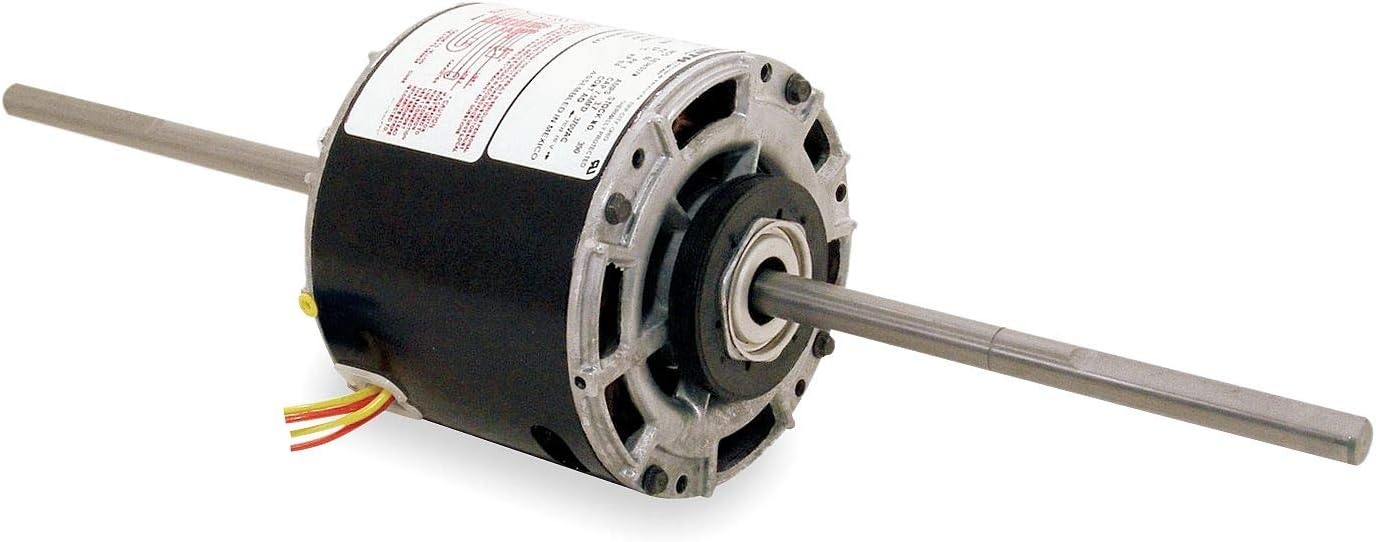

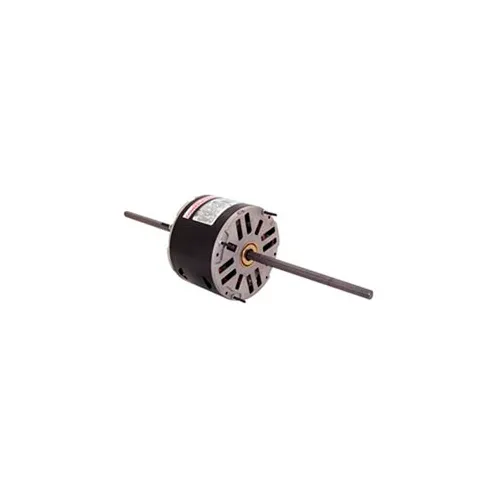

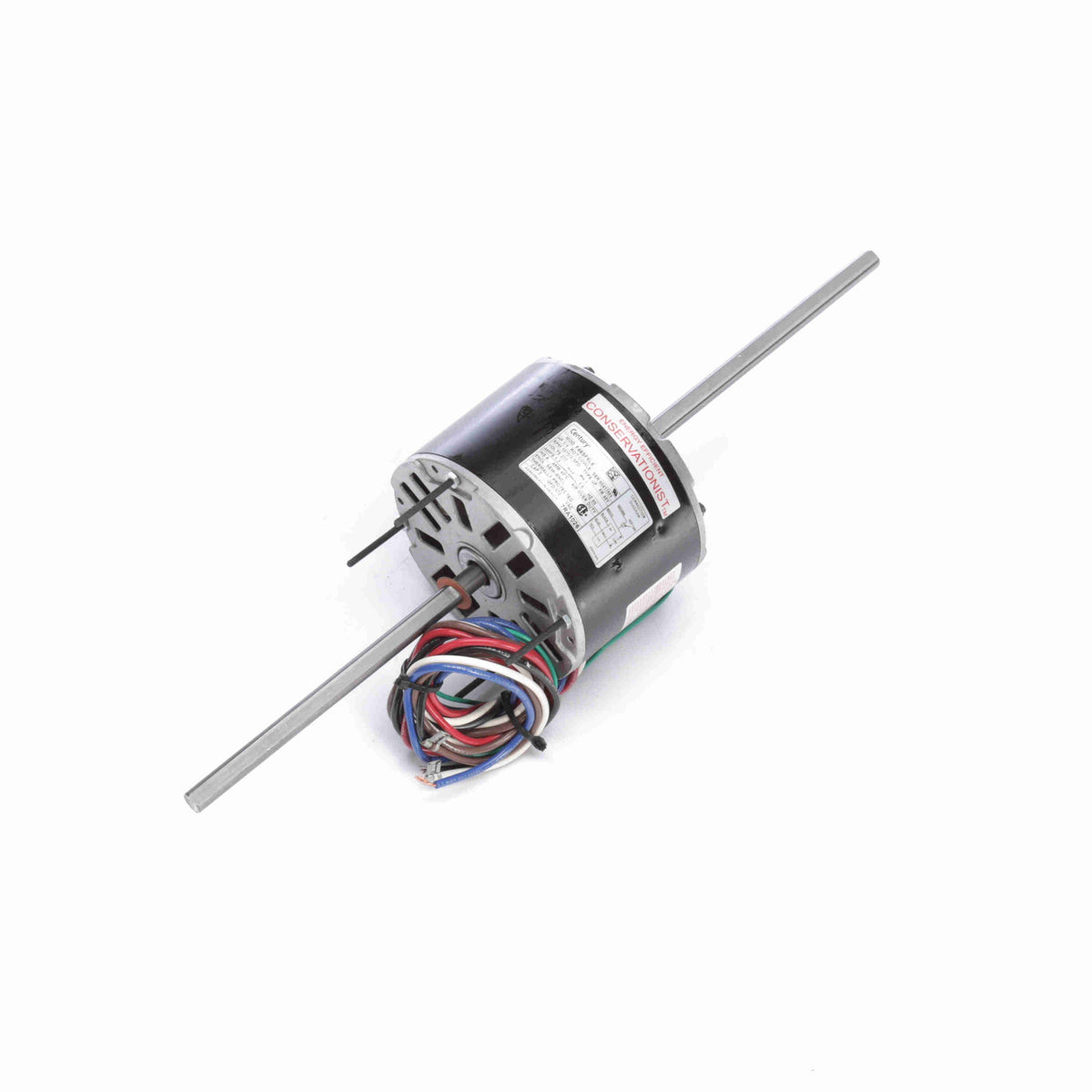

A.O. Smith 7RA1026 1/4 HP 277 Volt 1075 RPM Blower Motor 7RA1026

A.O. Smith 7RA1026 1/4 HP 277 Volt 1075 RPM Blower Motor 7RA1026zoom

Attributes

Key Value
7RA1026 is listed in Ce.A.O. Smith 323P540, A.O.
Amps1.3
ASINB00BXKJOM6
Batteries Required?No
BearingsSleeve
Body Dia.5-5/8"
Bolt Circle Dia.5-1/8"
BrandCENTURY
C-Dimension20.00 (in.)
Capacitor5MFD @ 370VAC Required
Capacitor Required2MDV4
Catalog Number7RA1026
CEN
CertificationCSA/IEC/NEMA
CSAY
DE Bearing TypeSleeve
DEM ReferenceNOHP
DutyAir Over, Continuous
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOAO (Open Air Over), Se.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
Full Load Amps1.3
HP1/4
Hz60
IncludesBase
Ins. ClassA
Insulation ClassA
IP Code-
ItemRoom Air Conditioner Mo.
Item model number7RA1026
Item Package Quantity1
KVA Code-
Lead Length36"
Length Less Shaft4-1/2"
ManufacturerCENTURY
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeStud
Motor OrientationHorizontal
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationCCWLE
Motor Sub ApplicationRoom Air Conditioner
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
Mounting Stud Pattern3-5/8" x 3-5/8"
Mounting TypeResilient Ring/Extended.
Nameplate RPM1,075
No. of Speeds3
Number of Speeds3
ODE Bearing TypeSleeve
Part Number7RA1026
Phase1
Product CategoryHVAC/R Motors > Fan Co.
Product TypePSC (Permanent Split Ca.
Resilient Ring Dia.2-1/4"
RotationDouble Shafted, Counter.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
RPM Range1,001 - 1,100
Service Factor1
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension7.9X.5X8.1 (in.)
Shaft Length7.89" x 8.12", 7-7/8" a.
Shaft TypeFlat
Ship Weight13 lbs.
Speeds3
StandardsUL, CSA
Stud Size#8-32 x 1-1/2"
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
UNSPSC Code39120000
Voltage277
Voltage Compatibility265, 277, 208-230/277, .
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caAOS7RA1026106.672732861In StockCENTURY12.55106.67273286 @ 1
thumbzoomAmazonB00BXKJOM6168.951In StockCENTURY168.95 @ 1
thumbzoomRaptor SuppliesAD9QFH247.5600661In StockCENTURY247.560066 @ 1
thumbzoompatrickssupply.com7RA1026273.981In StockCENTURY273.98 @ 1
thumbzoomVoomi Supply7RA1026311.611In StockCentury Motors311.61 @ 1
thumbzoomsustainablesupply.comC1561733312.341In StockCentury12.55312.34 @ 1
thumbzoomemotorpro.com7RA1026319.81In StockCentury13.0319.8 @ 1
thumbzoomDreisilkerCE-RBC-7RA1026325.91In StockCentury325.9 @ 1
thumbzoomNational Supply NetworkB244556331.541In StockAO SMITH331.54 @ 1
hvacdiscountstore.comCEN--7RA1026344.351In StockCENTURY MOTORS344.35 @ 1
thumbzoommidwestapplianceparts.com7RA1026-AO-P352.151In StockAO Smith352.15 @ 1
thumbzoomindustrialstores.com7RA1026355.721In Stock12Century Motors by Regal Beloit355.72 @ 1
thumbzoomGlobal IndustrialWBB244556363.951In StockCentury363.95 @ 1
