Chicago Latrobe 53028

B002KVM0SW

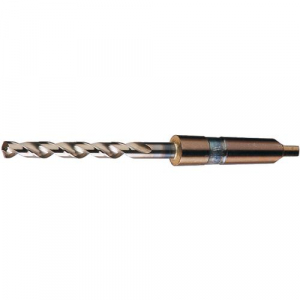

Chicago Latrobe 510 Cobalt Steel Taper Shank Drill Bit, Gold Oxide Finish, #2 Morse Taper Shank, 135 Degree Notch Point, 7/16" Size

Chicago Latrobe 510 Cobalt Steel Taper Shank Drill Bit, Gold Oxide Finish, #2 Morse Taper Shank, 135 Degree Notch Point, 7/16" Sizezoom

Attributes

Key Value
Applicable MaterialsCarbon Steel, Cast Iron.
ApplicationFor Drilling Carbon Ste.
Coolant ThroughNo
Cutting Depth3-7/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Decimal Equivalent0.4375
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.4375"
Diameter (Fraction)7/16"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishStraw/Bronze
Drill Bit MaterialCobalt Steel
Drill Bit Point Angle135 Degrees
Drill Bit Size7/16 in
Drill ConstructionHeavy-Duty
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Drill Size - Decimal In.0.4375 in
Drill Size - Fraction7/16 in
Drill Size SystemFractional
Drill StyleTaper Shank Drill
FinishSteam Oxide/Straw
Flute Length3.8750", 3 7/8 in, 3-7/.
Flute Length (Metric)98.42mm
Flute TypeSpiral
GradeHeavy-Duty
Hand of CutRight
Hand of SpiralRight
ItemTaper Shank Drill Bit
MaterialM42 HSS-Co 8, HSS-CO 8%.
Maximum Drilling Depth3 7/8 in
Measurement SystemImperial
Morse Taper#2
Number of Flutes2
Overall Length7.7500", 7 3/4 in, 7-3/.
Overall Length (Metric)196.85mm
Point Angle135 deg, 135?
Point StyleNotched
Point TypeNotched
Point typeNotched
Series510
Shank Length3.8750"
Shank Length (Metric)98.42mm
Shank Taper Designation#2 Morse Taper
Shank TypeTaper
StandardsANSI
Style510
Surface ConditionStraw
Taper Shank Size#2
Through Coolant (Yes/No)No
Tool Size7/16"
TypeHeavy Duty

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply613104948.021In StockChicago-Latrobe48.02 @ 1
thumbzoomusmegastore.com5302851.01In StockChicago-Latrobe51.0 @ 1
thumbzoomheavydutydepot.com5302851.02In StockChicago-Latrobe51.0 @ 2
thumbzoomZoroG298676356.6511Chicago-Latrobe0.4356.65 @ 1
