Hayward YC10100FE

B00J7V7U88

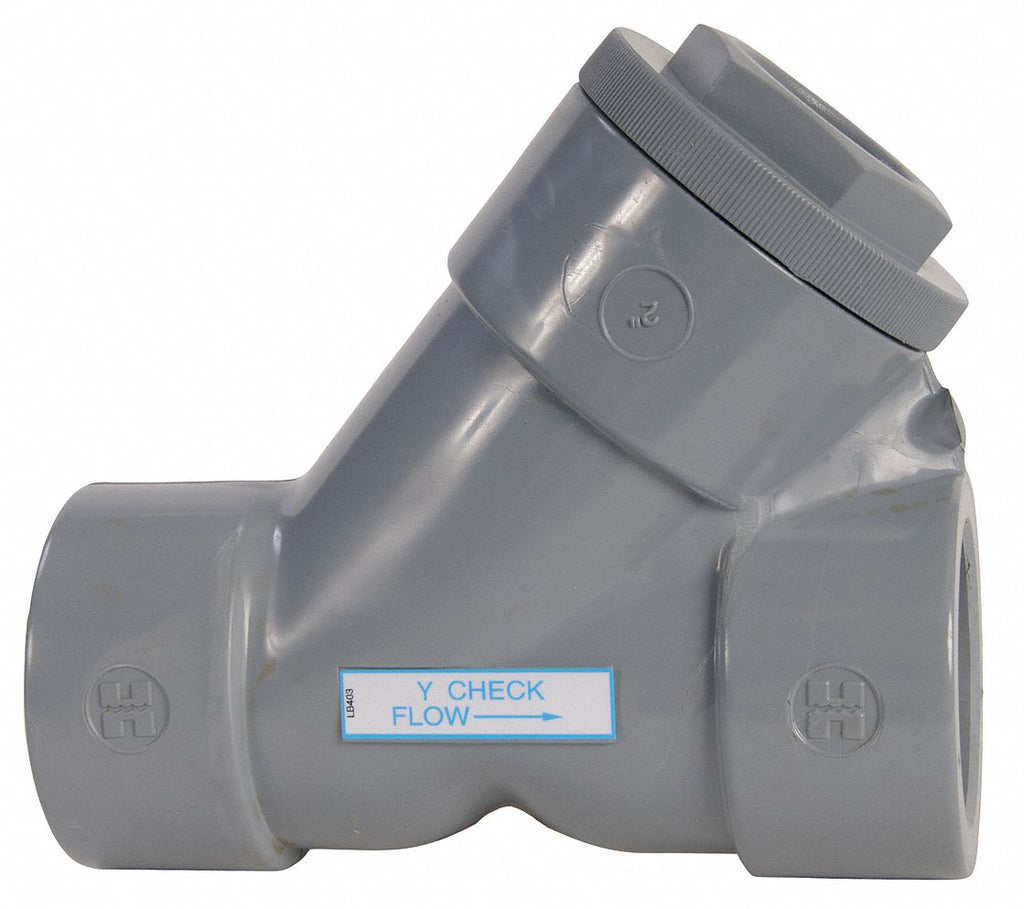

Hayward YC10100FE Series YC Y-Check Valve, Flanged End, PVC with EPDM Seals, 1" Size

Hayward YC10100FE Series YC Y-Check Valve, Flanged End, PVC with EPDM Seals, 1" Sizezoom

Attributes

Key Value
Application - ValvesGeneral Purpose
Body MaterialPVC
Body Material - ValvesPVC
Connection TypeFlanged
Connection Type - Check.Flange x Flange
Country of Origin (subj.United States
Cracking Pressure1 psi
Cracking Pressure - Che.1.0 psi
Description:1" PVC Y-Check Valve w/.
End StyleFlanged
Flow9 gpm
Flow - Valves9.0 gpm
Flow DesignSingle
Full Flow - ValvesYes
Hex Size1 1/2"
ItemY Check Valve
Item - Check ValvesCheck Valve
Length7 27/32 in
Length (Straight Wirewa.7 27/32 in
ManufacturerHAYWARD INDUSTRIAL PROD.
Material of ConstructionPVC
Max. Pressure150 psi @ 70 Degrees F
Max. Steam Pressure - V.Not Rated
Max. Temp.140 Degrees F
Max. Temp. - Valves140 Degrees F
Max. Water Pressure150 psi @ 70 Degrees F
Max. Water Pressure - V.150 psi @ 70 Degrees F
Mechanism and Body Desi.Y
MFG Part #:YC10100FE
Min. Temp. - Valves40 Degrees F
Mounting OrientationHorizontal, Vertical
Mounting Orientation - .Horizontal, Vertical
Mounting PositionVertical or Horizontal
Nominal Size1 in
Overall Height4 5/8 in
Pipe or Tube Size1 in
Pipe or Tube Size - Che.1 in
Pipe Size1"
Port TypeFull
Pressure Rating150 psi
Seal MaterialEPDM
Seal Material - Check V.EPDM
Seat MaterialEPDM
Seat Material - Check V.EPDM
SeriesYC Series
Size1"
Softgoods MaterialEPDM
Sub-CategoryPVC
Supplier:HAYWARD INDUSTRIAL PROD.
Temperature Rating70 deg F
Top to Inlet Center3.63 in
UPC:610377225779
Width2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6432736152.01In Stock26Hayward1.25152.0 @ 1
AmazonB00J7V7U88173.341In Stock85Hayward Industries173.34 @ 1
AmazonTPB00J7V7U88236.51In Stock30Hayward Industries236.5 @ 1
thumbzoomblackhawksupply.comYC10100FE239.981In StockHayward239.98 @ 1
thumbzoomsustainablesupply.comC2984513250.231In StockHayward1.25250.23 @ 1
kscdirect.comHAY YC10100FE316.981In StockHAYWARD INDUSTRIAL PRODUCTS316.98 @ 1
thumbzoomRaptor SuppliesAH8LNQ324.31083751In StockHAYWARD324.3108375 @ 1
