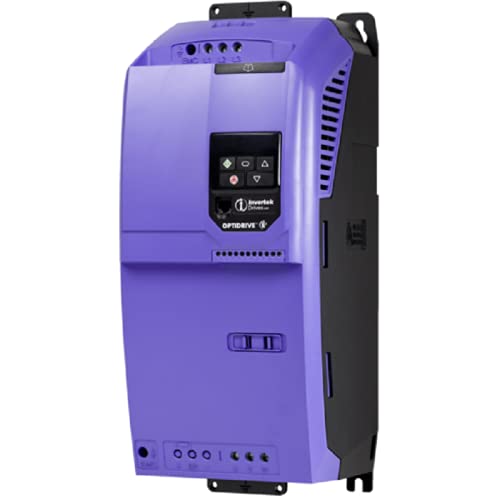

Invertek Drives ODE-3-440390-3F42

mpnODE-3-440390-3F42
brandname: INVERTEK DRIVES
manufacturername: INVERTEK DRIVES

VFD - 25HP - 380V-480V - 3 PHASE - 39A - Optidrive E3 - ODE-3-440390-3F42

Brand: Invertek Drives
PartNumber: ODE-3-440390-3F42
Model: ODE-3-440390-3F42
Color: black, purple
Size: 4
PackageQuantity: 1
Manufacturer: Invertek Drives Ltd.
Label: Invertek Drives Ltd.

Attributes

Key	Value
AC Line Regenerative	No
Amps (Constant Torque R.	39 A
Brake transistor	Internal brake transist.
Braking Type	DC Injection, Dynamic B.
Closed Loop	No
Comments	Sensorless Vector Contr.
Current Rating	39 A
Depth	8.3 in
Display	LED
Drive dimensions depth	212 mm (8.35 in)
Drive dimensions fixings	4 x M8
Drive dimensions height	420 mm (16.54 in)
Drive dimensions size	4
Drive dimensions weight	9.1 kg (20.06 lbs)
Drive dimensions width	171 mm (6.73 in)
Dynamic Braking Trans	Included
EMC filter	Internal EMC filter
Enclosure	4, IP20
Family Series	Invertek Drive Drives, .
Frame	4
Frame Size	4
Gross Weight	0 lbs
Height	16.5 in
Horsepower Rating	25 hp
HP (Constant Torque Rat.	25 hp
Input Phase	3
Input phases	3
Input Range Voltage (AC)	380-480 VAC
Input voltage	380/480V
IP Rating	IP20
Item Number	ODE-3-440390-3F42
Manufacturer	Invertek Drive
Manufacturer Part Number	ODE-3-440390-3F42
Max Frequency	500 Hz
Max motor cable length	100 m (328 ft)
Max motor cable size	16 mm? (0.02 in?)
Max supply cable size	16 mm? (0.02 in?)
Model	ODE-3-440390-3F42
Motor Control-Max Level	Open Loop Vector (Senso.
Motor output rating	18.5 kW (25 HP)
Mounting	Panel
Net Weight	20.1 lbs
Operator Controls	Built In
Output current	39 A
Output voltage	0 - supply voltage
Package	ODE3FS4IP20
Packaged dimensions dep.	560 mm (22.05 in)
Packaged dimensions hei.	340 mm (13.39 in)
Packaged dimensions wei.	10.5 kg (23.15 lbs)
Packaged dimensions wid.	282 mm (11.1 in)
Phase	3, 3 Phase
Product Series	ODE-3
Rated power	18.5 kW/25 HP
Series	ODE-3 Series
Supply current continuo.	44.1 A
Supply fuse or MCB (typ.	50 A
Supply Voltage	480 VAC
Supply voltage	380-480 V
Voltage	380/480V
Width (in)	6.7

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
TME	ODE-3-440390-3F42	1500.24	1	1	INVERTEK DRIVES		1500.24 @ 1
driveswarehouse.com	ODE-3-440390-3F42	1852.8	1	In Stock	Invertek		1852.8 @ 1
Galco	ODE-3-440390-3F42-IVTK	1852.8	1	In Stock	Invertek Drive	20.1	1852.8 @ 1
MRO Supply	6092691	1852.8	1	In Stock	Invertek	10.5	1852.8 @ 1
us.rs-online.com	72145865	1981.29	1	In Stock	Invertek Drives		1981.29 @ 1
vfds.com	ODE-3-440390-3F42	2035.71	1	In Stock	INVERTEK		2035.71 @ 1
