- mpn321890
- brandname: Jet
- manufacturername: Jet

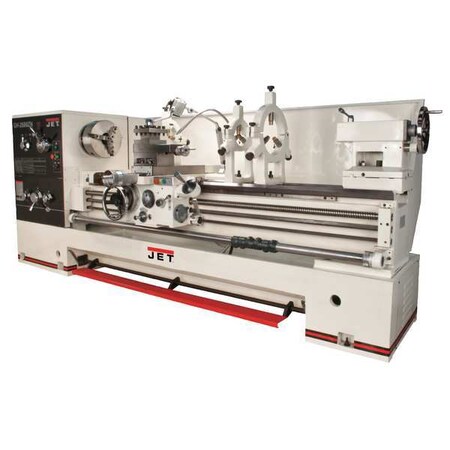

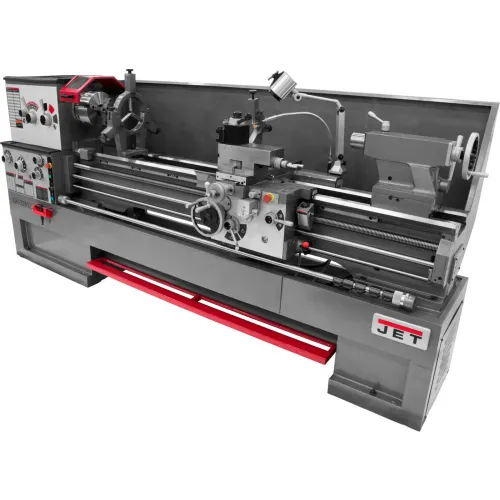

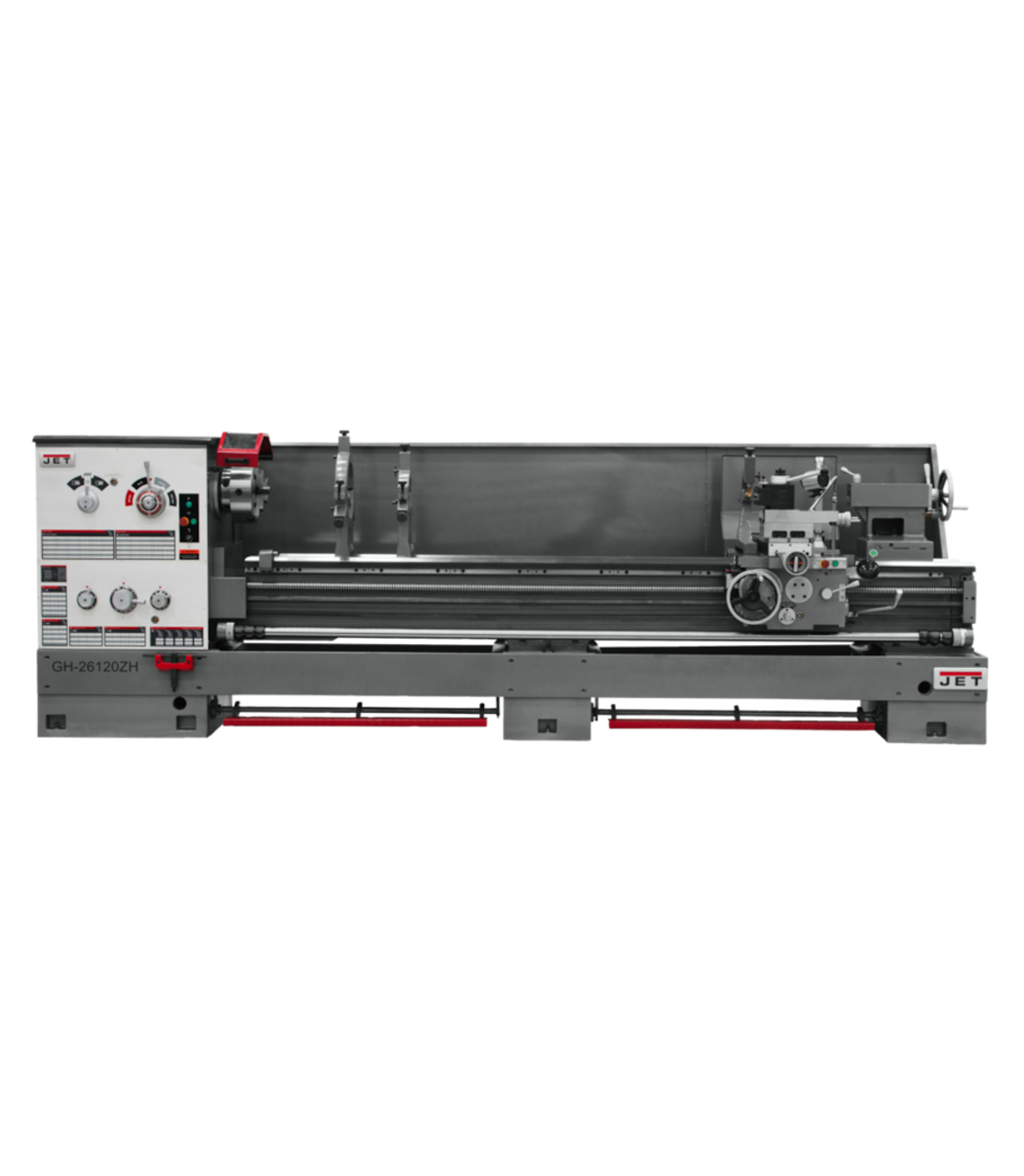

Jet Lathe, 10HP, 3P, 120 Center in
- Brand: Jet
- PartNumber: 321890
- Model: 321890
- PackageQuantity: 1
- Manufacturer: JET
- Label: JET
Attributes
| Key | Value |
|---|
| Bed Width | 9 1/2 in |
| Brand | <a href="category_jet">. |
| Carriage Travel (in.) | 108 1/4 |
| Carriage Travel (In.) | 108-1/4, 108-1/4 </td |
| Compound Slide Travel (. | 5-1/2 </td |
| Compound Travel (In.) | 5-1/2 |
| Cross Slide Travel (In.) | 12-3/32 </td |
| Dimensions L x W x H (i. | 177 x 43 x 57 |
| Distance Between Center. | 120 </td |
| Distance Between Center. | 120 |
| Drive | Geared Head </td |
| Follow Rest Capacity (I. | 25/32 - 3-15/16 </td |
| Frequency | 60 Hz |
| Gap Length | 8 in |
| Gap Length (In.) | 8 |
| Horsepower | 10 hp |
| HP | 10 |
| Item | Lathe |
| Item# | 66104 |
| Length of Gap (In.) | 8 </td |
| Longitudinal Feed Rates | 65 |
| Manufacturer's Warranty | 24 months parts / 24 mo. |
| Max Tool Size (In.) | 1-1/4 x 1-1/4 </td |
| Motor (HP) | 10 HP, 230/460, 3 Ph . |
| Motor HP | 10 |
| Number of Inch Threads | 48 </td |
| Number of Longitudinal . | 65 </td |
| Number of Metric Threads | 22 </td |
| Number of Spindle Speeds | 12 </td, 12 |
| Number of Threads (In.) | 30 |
| Number of Threads (mm) | 30 |
| Overall Dimensions (L x. | 178 x 43 x 57 </td |
| Overall Height | 183 in |
| Overall Length | 177 in |
| Overall Width | 46 in |
| Phase | Three |
| Prewired (V.) | 230 </td |
| Product Weight (lbs.) | 9,362 |
| Range of Cross Feeds (I. | .0040 - .0404 </td |
| Range of Inch Threads (. | 2 - 30 </td |
| Range of Longitudinal F. | .0023 - .0937 </td |
| Range of Metric Threads | 1 - 14 </td |
| Range of Spindle Speeds. | 36 - 1,600 </td |
| Ship Weight | 9471.0 lbs |
| Size | 26 x 120 </td |
| SKU | 321890 |
| Speed (RPM) | 36?1,600 |
| Spindle Bore (in.) | 4 1/8 |
| Spindle Bore (In.) | 4-1/8 </td, 4-1/8 |
| Spindle Mount | D1-8 </td, D1-8 |
| Spindle Speed (RPM) | 36 to 1600 |
| Spindle Taper | MT-5 |
| Spindle Taper with Slee. | MT-5 </td |
| Stand Included | Yes |
| Steady Rest Capacity (I. | Small 25/32 - 4-29/32, . |
| Style (Type) | Engine - Large Spindle . |
| Swing Over Bed (in.) | 26 |
| Swing Over Bed (In.) | 26, 26 </td |
| Swing Over Cross Slide . | 16-1/2 </td |
| Swing Through Gap (In.) | 34 </td |
| Tailstock Spindle Trave. | 6 </td |
| Tailstock Taper | MT3 |
| Tailstock Travel (In.) | 6 |
| Taper in Tailstock Spin. | MT-5 </td |
| Thread Cutting (in.) | 2?30 |
| Thread Cutting (mm) | 1?14 |
| Voltage | 230V AC |
| Volts | 230/460 |
| Weight (Lbs.) | 9,362 </td |
| Width of Bed (In.) | 16 </td |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonSC | B006RBKC7M | 36903.06 | 1 | In Stock | | Jet | | 36903.06 @ 1 |
| Northern Tool | 66104 | 38999.0 | 1 | In Stock | | Jet | 9471.0 | 38999.0 @ 1 |
| internationaltool.com | JET-321890 | 45759.0 | 1 | In Stock | | Jet | | 45759.0 @ 1 |
 | Global Industrial | WBB1013523 | 46599.0 | 1 | In Stock | 24 | JET | | 46599.0 @ 1 |
 | JB Tools | JB-DS-WLT-JT9-321890 | 46599.0 | 1 | In Stock | | Jet | | 46599.0 @ 1 |
 | penntoolco.com | 113340 | 46675.0 | 1 | In Stock | | Jet | | 46675.0 @ 1 |
| elitemetaltools.com | 2419 | 46675.0 | 1 | In Stock | | JET | 9471.0 | 46675.0 @ 1 |
| ToolUp.com | JET 321890 | 46675.0 | 1 | In Stock | | Jet | | 46675.0 @ 1 |
 | AceTool | JET-321890 | 46675.0 | 1 | In Stock | | Jet | 9362.0 | 46675.0 @ 1 |
 | toolsplus.com | JET321890 | 46675.0 | 1 | In Stock | | JET | | 46675.0 @ 1 |
 | imsbolt.com | 321890 | 46675.0 | 1 | In Stock | | JET | | 46675.0 @ 1 |
 | Zoro | G9879371 | 47149.0 | 1 | In Stock | | Jet | 9362.0 | 47149.0 @ 1 |
