- mpn5KC49PN0155
- brandname: Marathon Motors
- manufacturername: Marathon Motors

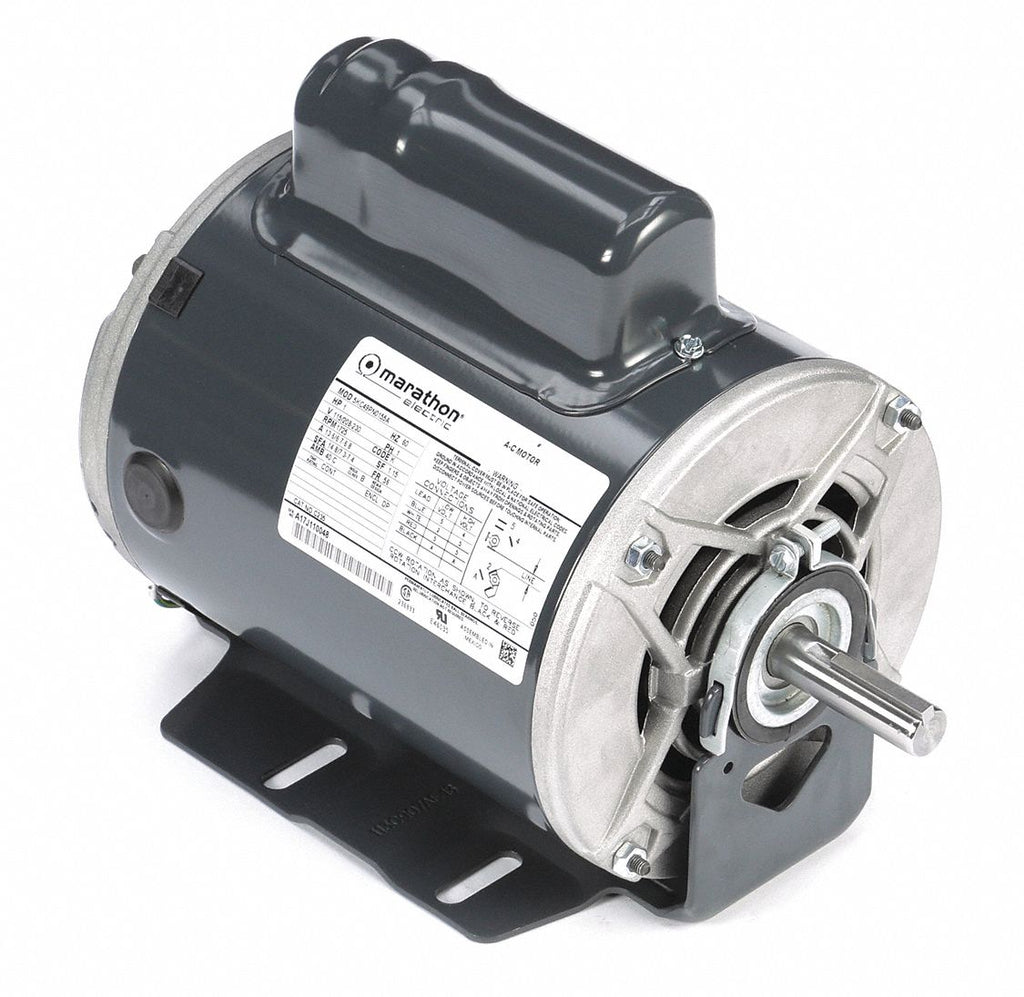

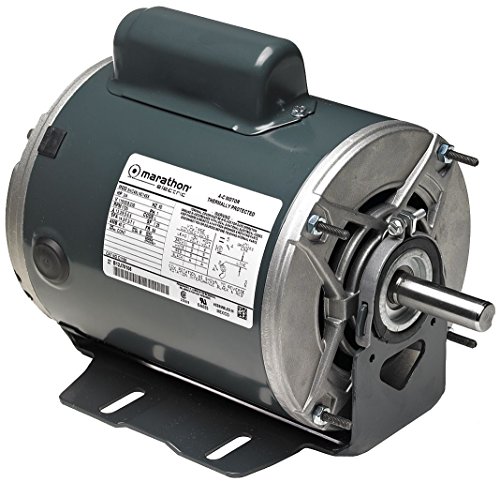

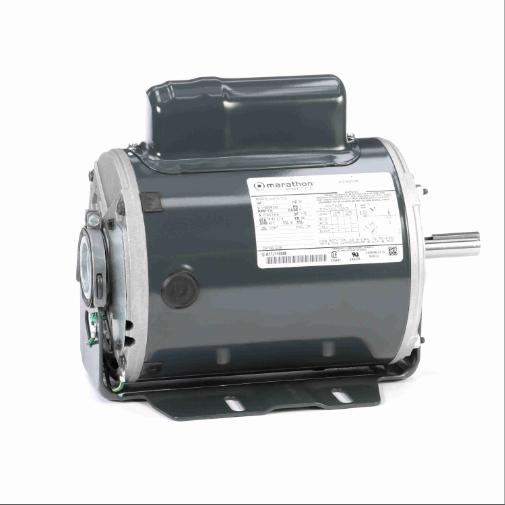

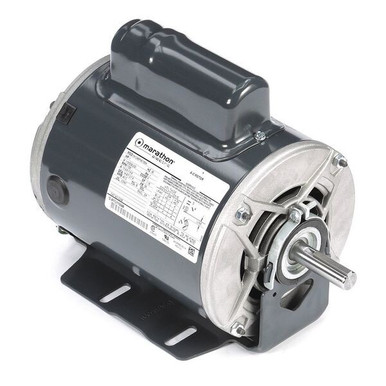

Motor, 1HP, 1725 RPM, 115/208-230V, None
- Brand: Marathon Industries
- PartNumber: 5KC49PN0155
- Model: 5KC49PN0155
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Brand | Marathon Motors |
| Classification | Fan and Blower Duty |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 197 |
| Drive End Flange Type | Standard |
| Efficiency % | 68 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| FL Amps | 13.6 |
| FL Efficiency | 68 |
| Frame | 56 |
| Frame Remarks | Resilient Base |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| International Shipping | No |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number | 5KC49PN0155 |
| Kilowatts | 0.75 kW |
| KW | 0.75 |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 9 1/2 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | C235 |
| Manufacturers Warranty . | 1 yr |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Resilient Mount |
| Mounting Type | Resilient Mount |
| Mpn | 5KC49PN0155 |
| Nameplate RPM | 1,725 |
| NEMA Frame | 56 |
| Net Weight | 31 lbs |
| No. of Speeds | 1 |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Speeds | 1 |
| Overall Length | 11 3/8 in |
| Part Number | 5KC49PN0155 |
| Phase | 1 |
| Product Type | General Purpose |
| RPM | 1800, 1,725 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| SKU | ZO-G5503617 |
| Speed (RPM) | 1725 |
| Standards | CSA Certified, UL Listed |
| SubCategory | Motors/Ac Motors |
| Voltage | 115/208-230V AC, 110-12. |
| Voltage (AC) | 110-120 VAC, 208 VAC, 3. |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B0761HQCHY | 315.18 | 1 | In Stock | 2 | MARATHON MOTORS | | 315.18 @ 1 |
 | Galco | 5KC49PN0155-MARA | 396.76 | 1 | In Stock | | Marathon Electric | 31.0 | 396.76 @ 1 |
 | Zoro | G5503617 | 416.99 | 1 | 188 | | Marathon Motors | 29.45 | 416.99 @ 1 |
 | Dealers Electric | 5KC49PN0155 | 424.11 | 1 | In Stock | | Marathon Electric | 40.0 | 424.11 @ 1 |
 | motorsandcontrol.com | C235 | 443.44 | 1 | 1 | | Marathon Motors | | 443.44 @ 1 |
 | simsupply.com | ZO-G5503617 | 493.55 | 1 | 197 | | Marathon Motors | | 493.55 @ 1 |
 | sustainablesupply.com | C2792535 | 495.04 | 1 | In Stock | | Marathon | 29.45 | 495.04 @ 1 |
 | Raptor Supplies | AD6NXT | 610.475346 | 1 | In Stock | | MARATHON MOTORS | | 610.475346 @ 1 |
 | pumpproducts.com | 5KC49PN0155 | 695.15 | 1 | In Stock | | Marathon | | 695.15 @ 1 |
