UBT1V222MHD

mpnUBT1V222MHD
brandname: Nichicon
manufacturername: Nichicon

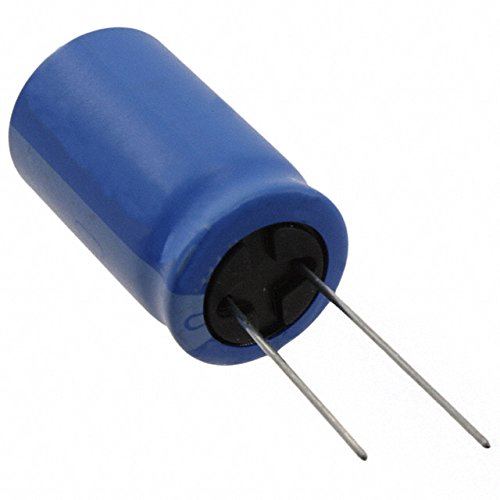

CAP ALUM 2200UF 35V 20% RADIAL (1 piece)

CAP ALUM 2200UF 35V 20% RADIAL (1 piece)

zoom

PartNumber: UBT1V222MHD
Model: UBT1V222MHD
PackageQuantity: 1
Manufacturer: Nichicon
Label: Nichicon

Attributes

Key	Value
Applications	Automotive
Capacitance	2200 ?F, 2200 uF
Capacitance Range	1000 to 9999 uF
Case Size	Dia. 0.709 x L 1.398 in.
Case Style	Radial
Category	Capacitors
Configuration	Radial ; Can
Element Material	Aluminum Electrolytic
ESR (Equivalent Series .	-
Height - Seated (Max)	1.476" (37.50mm)
Impedance	25 mOhms
Lead Spacing	0.295 In. (7.50 mm) mm,.
Lifetime @ Temp.	10000 Hrs @ 125?C
Manufacturer	Nichicon
Mfr	Nichicon
Minimum Operating Tempe.	-40 C
Mounting Type	Through Hole, PCB Mount
Operating Temperature	-40?C ~ 125?C
Package	Bulk
Package / Case	Radial, Can
Polarization	Polar
Product Status	Active
Ratings	-
Ripple Current @ High F.	2.79 A @ 100 kHz
Ripple Current @ Low Fr.	1.869 A @ 120 Hz
Series	UBT, BT Series
Size / Dimension	0.709" Dia (18.00mm)
Special Features	Automotive
Surface Mount Land Size	-
Termination	Through Hole
Tolerance	?20%, 20% %
Voltage (V)	35
Voltage - Rated	35 V
Voltage Rating	35 VDC
Weight (lbs)	(0.004)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Newark	54K7649	2.03	250	49		NICHICON		2.03 @ 100
	BD Enterprises	UBT1V222MHD	2.62	1	49		Nichicon	0.004	2.62 @ 1
	Hotenda	H273620	3.18	1	44		Nichicon		3.18 @ 1
	Digi-Key	2597433	4.06	1	49		Nichicon		4.06 @ 1
	us.rs-online.com	70187463	4.1	1	245		Nichicon		4.1 @ 1
	AmazonTP	B00DDKQNSW	11.23	1	49	2	Nichicon		11.23 @ 1
