- mpnLP0115CMKW01F
- brandname: NKK Switches
- manufacturername: NKK Switches

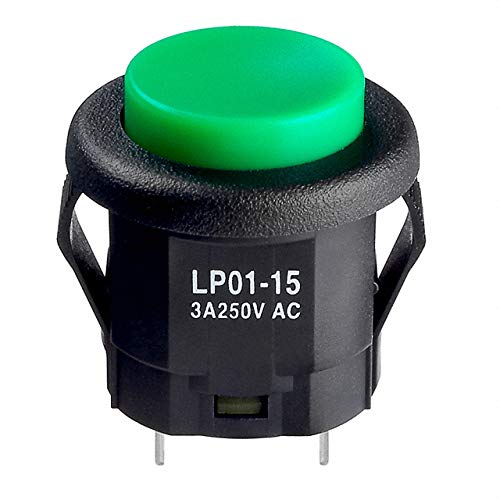

NKK SWITCHES LP0115CMKW01F Switch, PB, Non-Illum, SPDT, 3A, Green
- Brand: NKK
- PartNumber: LP0115CMKW01F
- Model: LP0115CMKW01F
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: NKK
- Label: NKK
Attributes
| Key | Value |
|---|
| AC contacts rating @R | 3A / 250V AC |
| Actuator Color | Green |
| Actuator Marking | No Marking |
| Actuator Type | round, Round, Button |
| Base Product Number | LP0115C |
| Body colour | black |
| Body dimensions | ?20x16.5mm |
| Body material | polyamide |
| Button shape | round |
| Category | Switches |
| Circuit | SPDT |
| Color - Actuator/Cap | Green |
| Conform to the norm | UL |
| Contact Form | SPDT |
| Contact material | phosphor bronze |
| Contact plating | silver plated |
| Contacts configuration | SPDT |
| Current Rating | 3 A |
| Current Rating (Amps) | 3A (AC/DC) |
| DC contacts rating @R | 3A / 30V DC |
| Dimensions, Cutout, Inc. | 17.3 Dia. mm |
| Electrical Life | 50,000 Cycles |
| Electrical life | 50000 cycles |
| Features | - |
| Illumination | none |
| Illumination Type, Color | - |
| Illumination Voltage (N. | - |
| Ingress Protection | - |
| Key stroke | 3mm |
| Kind of material | fiber glass reinforced |
| Leads | 2,8x0,5mm connectors, |
| Manufacturer | NKK SWITCHES |
| Manufacturer series | LPR |
| Max. contact resistance: | 50m? |
| Mechanical durability | 500000 cycles |
| Mechanical Life | 500,000 Cycles |
| Mfr | NKK SWITCHES |
| Min. insulation resista. | 200M? |
| Mounting | on panel, |
| Mounting hole diameter | ?17.3mm |
| Mounting Type | Panel Mount, Panel Moun. |
| Number of positions | 2 |
| Operating Force | 1.5N |
| Operating Temperature | -25?C ~ 70?C |
| Operating temperature | -25...70?C |
| Operation | On (Mom) |
| Package | Bulk |
| Panel Cutout Dimensions | Circular - 17.30mm Dia |
| Part Status | Active |
| Poles number | 1 |
| Series | LP01, LP01 Series |
| Stable positions number | 1 |
| Switch Function | On-Mom |
| Switching method | ON-(ON) |
| Termination | QC Tabs |
| Termination Style | Solder, Quick Connect -. |
| Type | Push Button, Standard |
| Type of switch | push-button |
| Voltage Rating | 125 V |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 2105098 | 9.96 | 1000 | In Stock | | NKK Switches | | 9.96 @ 1 |
| TME | LP0115CMKW01F | 10.85 | 1 | In Stock | | NKK SWITCHES | | 10.85 @ 1 |
| us.rs-online.com | 70366111 | 11.2 | 1 | In Stock | | NKK Switches | | 11.2 @ 1 |
 | Newark | 10X3338 | 16.24 | 1 | In Stock | | NKK SWITCHES | | 16.24 @ 1 |
