- mpnDNFR14-250B-M
- brandname: PANDUIT
- manufacturername: PANDUIT

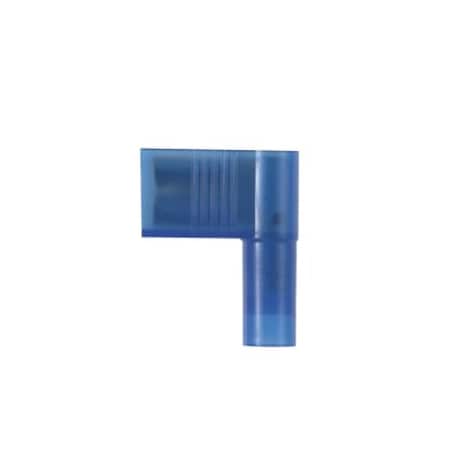

PANDUIT, DNFR14-250B-M, Female Disconnect, Angled, Dnfr-B
- PartNumber: DNFR14-250B-M
- PackageQuantity: 25
- Manufacturer: PANDUIT
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 16 - 14 |
| Angle | Right Angle |
| Approvals | CSA, UL |
| AWG Range | #14 |
| Base Product Number | DNFR14 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | blue |
| Color Family | blue |
| Colour | blue |
| connector gender | f |
| Contact Finish | Tin |
| Contact material | brass |
| Contact Material | brass |
| Contact plating | tinned |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Electrical mounting | crimped |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Ferrule variant | insulated |
| Finish | Tin-Plated |
| Gender | female |
| Gross Weight | 0 lbs |
| Height | 0.2 in. |
| Insulated | insulated |
| Insulation | Fully Insulated |
| Insulation Diameter | 0.155" (3.94mm) |
| Insulation Material | nylon |
| Insulation Type | nylon |
| Insulator material | nylon |
| Item | Dis,F,Ra,Blny,.205x.032. |
| Item Number | DNFR14-250B-M |
| item per pack | 1 |
| Kind of terminal | female |
| Length - Overall | - |
| Manufacturer | PANDUIT |
| Manufacturer Part Number | DNFR14-250B-M |
| Material | brass, nylon |
| Max Temp | 221 ?F |
| Mechanical mounting | for cable |
| Mfr | Panduit Corp |
| mounting type | inline |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| number of contacts | 1 |
| Package | Bulk |
| package | Bulk |
| Package Quantity | 1,000 |
| Packaging | 1000 per Package |
| Plating Material | Tin |
| Product Series | Pan-Term Disconnects |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Series | Pan-Term?, Pan-Term DNF. |
| Spatial orientation | angled 90? |
| Tab Length | - |
| Tab Size | 0.25 x 0.032 " |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Terminal Material | brass |
| Terminal Type | Disconnect - Female, An. |
| Termination | Crimp |
| Thickness | 0.8mm |
| Type | Right Angle, Disconnect. |
| Type of terminal | flat |
| UNSPSC | 39121409 |
| UPC Code | 074983826629 |
| Use With | CT-300-1 |
| voltage rating | 600.0 v |
| Volts | 600 V |
| Width | 6.3mm, 0.63 in. |
| Wire cross-section | 1.5...2.5mm |
| Wire Gauge | 14-16 AWG |
| Wire size | 16AWG...14AWG |
| Wire Size | 16-14 AWG |
| Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | DNFR14-250B-M | 0.375 | 1 | 3058 | | PANDUIT | | 0.375 @ 25 |
| Hotenda | H1649038 | 0.45 | 1 | 1051 | | Panduit | | 0.45 @ 25 |
| TME | DNFR14-250B-M | 0.485 | 2 | 25 | | PANDUIT | | 0.485 @ 25 |
 | Galco | DNFR14-250B-M-PNDT | 0.5 | 1000 | 25 | | Panduit | | 0.5 @ 1000 |
 | Platt.com | 0513110 | 0.59 | 1 | 25 | | Panduit | | 0.59 @ 25 |
 | Newark | 13AC4668 | 0.719 | 1 | 916 | | PANDUIT | | 0.719 @ 25 |
| Digi-Key | 448151 | 0.7264 | 1 | 25 | 110 | Panduit Corp | | 0.7264 @ 25 |
 | Tedss | 2025007438 | 1.04 | 1 | 25 | | PANDUIT | | 1.04 @ 25 |
 | Zoro | G0413075 | 459.53 | 1 | 25 | 106 | Panduit | 3.8 | 459.53 @ 25 |
 | alldataresource.com | PAN-DNFR14-250B-M | 488.96 | 1 | 25 | | Panduit | | 488.96 @ 25 |
 | gordonelectricsupply.com | DNFR14-250B-M | 530.0 | 1 | 25 | 12 | PANDUIT | | 530.0 @ 25 |
 | Carlton Bates Company | 07498382662 | 530.0 | 1 | 25 | | PANDUIT | | 530.0 @ 25 |
| steinerelectric.com | 6942 | 532.6 | 1 | 25 | | Panduit | | 532.6 @ 25 |
 | jensentools.com | 10015551 | 556.56 | 1 | 25 | | Panduit | | 556.56 @ 25 |
 | turtle.com | PAN DNFR14-250B-M | 590.53 | 1 | 25 | | Panduit | | 590.53 @ 25 |
| Airline Hydraulics | 1976010 | 603.97 | 1 | 25 | | PANDUIT | | 603.97 @ 25 |
| Graybar | 89088413 | 654.528 | 1 | 2000 | | Panduit | | 654.528 @ 25 |
| us.rs-online.com | 70251780 | 693.31 | 1 | 25 | | Panduit | | 693.31 @ 25 |
