SCHLAGE AL10S SAT 619

mpnAL10S SAT 619
brandname: Schlage
manufacturername: Schlage

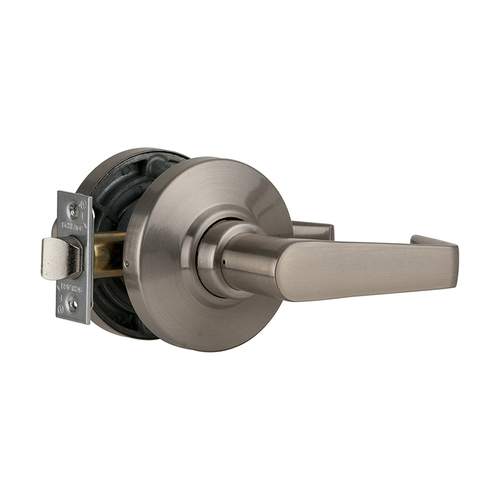

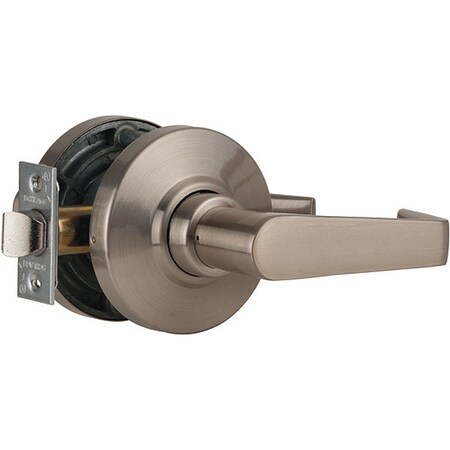

Schlage AL10S SAT 619 Cylindrical Lock, 9.5" Length

Schlage AL10S SAT 619 Cylindrical Lock, 9.5" Length

zoom

Brand: SCHLAGE
PartNumber: AL10S SAT 619
Model: AL10S SAT 619
Color: Satin Nickel
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schlage
Label: Schlage

Attributes

Key	Value
ADA Approved	True
ANSI Function	F75 - Passage
BAA Qualified	Yes
Backset	2-3/4", 1-1/8" x 2-1/4".
Base Material	Brass or Bronze
Bore Size	2.1250
Box Height	4.7500
Box Length	9.5000
Box Width	8.0000
Case Height	10"
Case Length	16.375"
Case Volume	2394.84375
Case Width	14.625"
Color	Satin Nickel Plated Cle.
Color Code	619/US15
Country of Origin (subj.	Mexico
Door Range	1 3/8 to 1 7/8
Door Thickness	1 3/8" - 1 7/8"
Finish	Satin Nickel
Finish Description	Satin Nickel
Function	10-Passage
Grade	ANSI/BHMA Grade 2
Hand	Not Handed
Item	AL Series,Cylindrical P.
Latch Backset Dim	2-3/4"
Latch Number	11-116
Latch Type	Spring Latch (Unguarded)
Lever Length	4.2500
Lever Style	SAT-Saturn
Lever/Knob Design	SAT - Saturn
Lock Face Size	2-1/4" x 1-1/8"
Origin	Mexico
Package Height	4.75"
Package Length	9.5"
Package Qty	1
Package Volume	372.28125
Package Width	8.25"
Product Material	Zinc; wrought brass or .
Product Type	Cylindrical Lock
Projection	2.5000
Rose/Escutcheon Design	3-7/16 In. Diameter
Rose/Escutcheon Trim	Round Rose
Screws	Combination
Strike	ANSI, 1-1/4" x 4-7/8", .
Strike Height	4-7/8"
Strike Name	ANSI 1-1/4 x 4-7/8
Strike Number	10-025
Strike Type	ASA
Strike Width	1-1/4"
Thickness	1-3/8 In. - 1-7/8 In.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1237758	133.95	1	In Stock		Schlage		133.95 @ 1
	DK Hardware	AL10S SAT 619	379.1	1	In Stock		Schlage Commercial		379.1 @ 1
