- mpnYA31LB
- brandname: Burndy
- manufacturername: Burndy

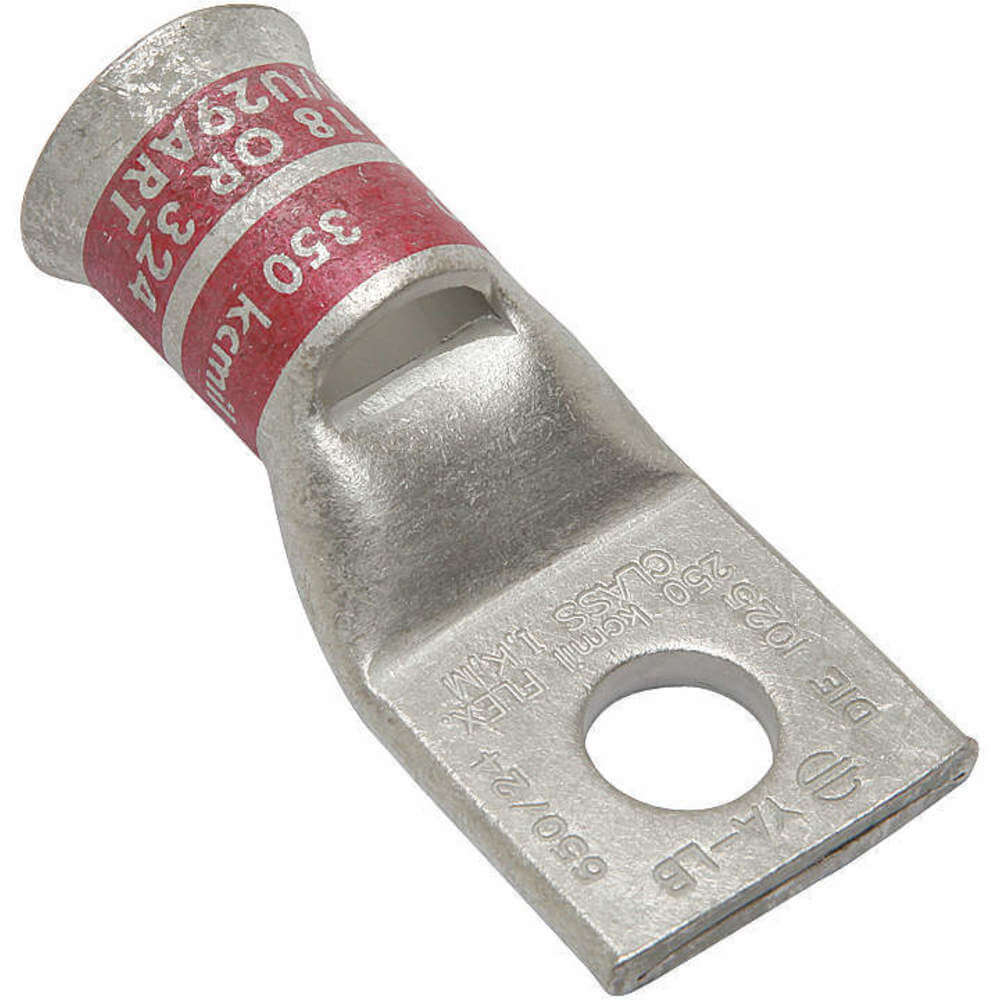

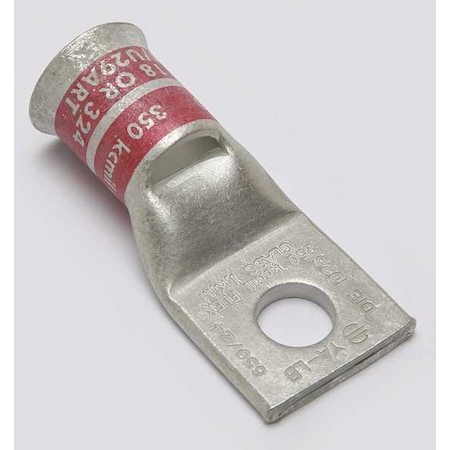

BURNDY 250 kcmil One-Hole Lug Compression Connector, Belled Straight Barrel, Red
- Brand: CAI - BURNDY
- PartNumber: YA31LB
- PackageQuantity: 1
- Manufacturer: CAI - BURNDY
- Label: CAI - BURNDY
Attributes
| Key | Value |
|---|
| Application | For Flex Conductor |
| Approvals | CSA, UL |
| Barrel Length | Short |
| Cable Size | 250 kcmil |
| Certification - CSA App. | Yes |
| Certification - cULus | No |
| Certification - UL Reco. | No |
| Color Code | Red |
| Colour Code | Red |
| Conductor - Copper DLO . | 262.6 (650/#24) DLO |
| Conductor - Copper Flex. | 250 kcmil |
| Conductor - Copper Flex. | 250 kcmil |
| Conductor - Copper Flex. | 250 kcmil |
| Conductor - Copper Str . | 350 (91) Navy |
| Conductor - Copper Str . | 350 kcmil |
| Conductor - Copper Str . | 350 kcmil |
| Conductor - Material | Copper |
| Conductor Size | 350 kcmil |
| Connector Type | Terminal, Belled Straig. |
| Die Code | 1,025 |
| Die Index | 18;1025 |
| Dimension - B Length fr. | 1-1/9 in |
| Dimension - B Length in. | 1.10 in |
| Dimension - Bolt Hole S. | 0.52 in |
| Dimension - Bolt Size f. | 1 to 2, 1/2 |
| Dimension - Bolt Size i. | 0.5 |
| Dimension - Hole Size f. | 1 to 2 |
| Dimension - Hole Size i. | 0.53 in |
| Dimension - Hole Size mm | 13 mm |
| Dimension - L Length Ov. | 74 mm |
| Dimension - Length Over. | 2.93 in |
| Dimension - N inch | 0.53 in |
| Dimension - Outside Dia. | 0.88 in |
| Dimension - Pad Width i. | 1.29 in |
| Dimension - Strip Lengt. | 42372, 1-3/16 |
| Dimension - Stud Size f. | 1 to 2 |
| Dimension - Z inch | 0.55 in |
| Family Series | Burndy Terminals, YA-LB. |
| Feature - Barrel Style | Belled |
| Feature - Barrel Type | Standard |
| For Wire Size | 350 kcmil |
| Gross Weight | 0.0119 lbs |
| Hole Center to End | 0.53 in |
| Industry Standard(s) | UL468A-468B |
| Insulated | Non-Insulated |
| Item | One-Hole Lug Compressio. |
| Item Number | YA31LB |
| Length | 2.93" |
| Length (Straight Wirewa. | 2.93 in |
| Manufacturer | Burndy |
| Manufacturer Part Number | YA31LB |
| Material | Copper, Tin-Electro Pla. |
| Max Temp | 194 ?F |
| Net Weight | 0 lbs |
| Peep Hole | Yes |
| Physical Attribute - Nu. | 1 |
| Physical Attribute - To. | Straight |
| Physical Attribute - To. | Standard |
| Plate Material | Electro Tin |
| Plated | Y |
| Plating Material | Electro-Tin |
| Plating Type | Tin - Electro Plated |
| Product Series | YA-LB |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| Standards | CSA, UL467, UL, CSA Cer. |
| Standards - Industry St. | UL468A-468B |
| Standards - RoHS Compli. | CM |
| Stud Size | 1/2 in |
| Terminal Material | Copper |
| Terminal Type | Barrel - Standard |
| Tongue Style | Standard |
| Tongue Width Ranges | 1.25 - 1.50 inches |
| Trade Name | HYLUG? |
| Type | Standard Belled Barrel,. |
| UL Listed | Yes |
| Voltage - Maximum | 35000 |
| Volts | 600 V |
| Width | 1.29" |
| Wire Size | 350 kcmil |
| Wire Size (kcmil) | 350 kcmil |
| Wire Size Range | 350 kcmil - 350 kcmil |
| Wire Size Ranges | 350 kcmil - 350 kcmil |
| Wire Strip Length | 1.1875 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonSC | B00CBN7MT6 | 7.26 | 1 | In Stock | | Burndy | | 7.26 @ 1 |
 | usmegastore.com | YA31LB | 21.74 | 1 | In Stock | | Burndy | | 21.74 @ 1 |
 | Megadepot | YA31LB | 22.82 | 1 | In Stock | | Burndy | | 22.82 @ 1 |
 | Zoro | G4678247 | 22.99 | 1 | 60 | | Burndy | 0.2 | 22.99 @ 1 |
 | gordonelectricsupply.com | YA31-LB | 25.65 | 1 | In Stock | | BURNDY | | 25.65 @ 1 |
| steinerelectric.com | 85940 | 27.84 | 1 | In Stock | | BURNDY | | 27.84 @ 1 |
| grainger.ca | WWG22C388 | 29.9757878 | 1 | In Stock | | BURNDY | 0.2 | 29.9757878 @ 1 |
 | Galco | YA31LB-BURN | 33.31 | 1 | In Stock | | Burndy | 0.0119 | 33.31 @ 1 |
 | Raptor Supplies | AB6RMF | 39.3865875 | 1 | In Stock | | BURNDY | | 39.3865875 @ 1 |
