Chicago Latrobe 50736

B01BH7J5MI

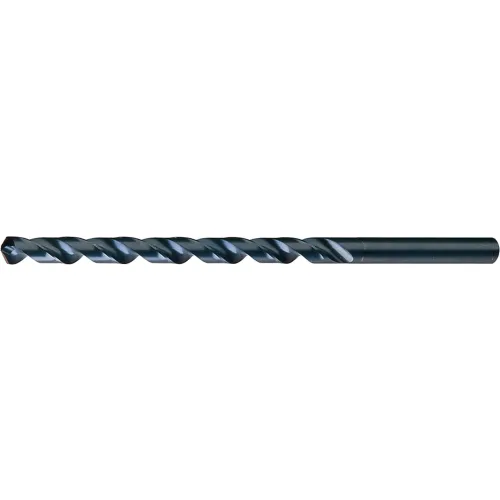

Extra Long Drill,17/64",HSS

Extra Long Drill,17/64",HSSzoom

Attributes

Key Value
Applicable MaterialsCarbon Steel, Alloy Ste.
ApplicationFor Drilling Carbon Ste.
Bit Dia.17/64"
BrandChicago-Latrobe
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.United States
Current Stock3
Cutting Depth7-1/2 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.2656
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.2656"
Diameter (Fraction)17/64"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 Degrees
Drill Bit Point TypeNotched Point
Drill Bit Size17/64 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Drill Length ClassExtra Long
Drill Point Length0.0798 in
Drill Size - Decimal In.0.2656 in
Drill Size - Fraction17/64 in
Drill Size SystemFractional
Drill StyleExtra Length Drill
FinishBlack Oxide
Finish - MachiningBlack Oxide
Flute Length7.5000", 7 1/2 in, 7-1/.
Flute Length (Metric)190.50 mm.
Flute TypeSpiral
GradeGeneral Purpose
Hand of CutRight
Hand of SpiralRight
Helix Angle28 Degrees
International ShippingNo
ItemExtra Long Drill Bit
List Number120X
MaterialHSS, High Speed Steel
Material - MachiningHigh Speed Steel
Material Grade - Machin.General Purpose
Maximum Drilling Depth7 1/2 in
Measurement SystemFractional Inch, Imperi.
Mpn50736
Number of Flutes2
Number of Pieces0
Overall Length1 in, 10 in, 10.0000"
Overall Length (Metric)254.00 mm.
Point Angle118 deg, 118?
Point StyleNotched
Point TypeK-Notch, Notched
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
Series120X
Shank ConfigurationStraight
Shank Dia.17/64 in
Shank Length2.5000", 2 1/2 in
Shank Length (Metric)63.50 mm.
Shank Size0.266", 0.2656", 17/64 .
Shank Size (Metric)6.75 mm.
Shank TypeStraight
Shank Type - MachiningStraight
SKUZO-G2986483
Spiral DirectionRight Hand
StandardsNot Rated
Style120X
SubCategoryMachining
Surface ConditionSteam Oxide
Tool Size17/64"
TypeExtra Long General Purp.
UPC662355507360

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply613077520.02In StockChicago-Latrobe20.0 @ 2
thumbzoomGlobal IndustrialWBB254666521.51In StockChicago-Latrobe21.5 @ 1
thumbzoomsustainablesupply.comC276497922.331In StockChicago-Latrobe0.1222.33 @ 1
thumbzoomMegadepot5073624.761In StockChicago-Latrobe24.76 @ 1
thumbzoomheavydutydepot.com5073624.765In StockChicago-Latrobe24.76 @ 5
thumbzoomZoroG298648325.11In StockChicago-Latrobe0.1325.1 @ 1
thumbzoomusmegastore.com5073626.261In StockChicago-Latrobe26.26 @ 1
thumbzoomsimsupply.comZO-G298648329.6313Chicago-Latrobe29.63 @ 1
thumbzoombscsource.com5073634.991In StockChicago-Latrobe34.99 @ 1
thumbzoomNational Supply Network3685574041.271In StockChicago-Latrobe41.27 @ 1
thumbzoomGuardian3685574050.691In StockChicago-Latrobe50.69 @ 1
