Destaco 2007-S

B0155LVE4O

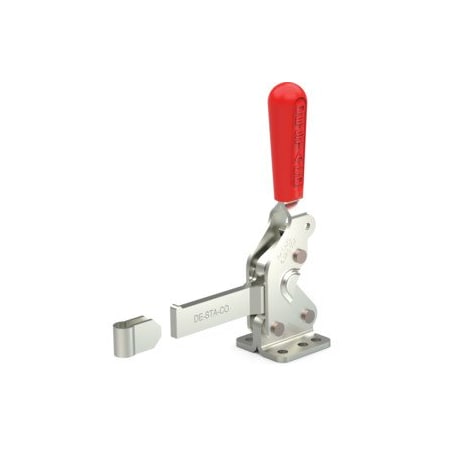

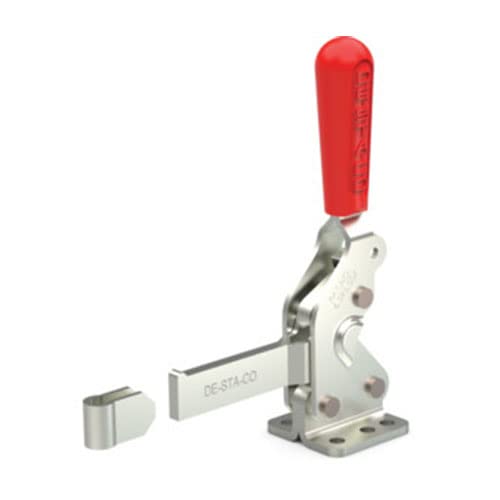

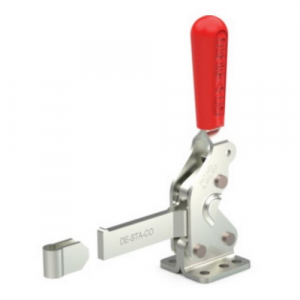

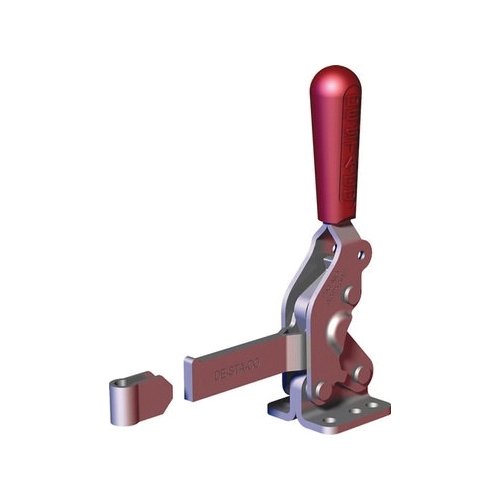

DESTACO 2007-S Series 2007 Vertical Hold Down Clamp, Flanged Base, Solid Bar

DESTACO 2007-S Series 2007 Vertical Hold Down Clamp, Flanged Base, Solid Barzoom

Attributes

Key Value
Accommodates Workpiece .No
Application - AssemblyExcellent/High
Application - Checking .Excellent/High
Application - ClosuresExcellent/High
Application - Food Proc.Not Recommended
Application - MachiningPoor/Low
Application - WeldingFair/Medium
Application - Wood-Work.Excellent/High
Arm and Tip StyleSolid Bar with Steel Tip
Arm Length2.85 in
Arm StyleSolid Bar
AvailableYes
Base Mounting Styleflanged, Flange
Body MaterialSteel
Clamp Arm Length (in)2.85
Clamp Arm Opening Angle76 Degrees
Clamp Arm StyleSolid Bar
Clamp Bar Opening (+10?.76
Duty Cycle2
Fastener Thread Size1/4 in
HandleVertical
Handle ColorRed
Handle DesignStandard Vertical Hand.
Handle Opening (+10?)64
Handle OrientationVertical
Handle Width (Decimal I.1.2500
Height Under Arm1.25 in
Height Under Clamp Arm .1.25
Holding Capacity - Maxi.1,000 lbf
Includes Locking HandleNo
ItemVertical Clamp 2007-S
Locking Handle IncludedStandard
Max Arm Length2 - 3"
Max Height Under Arm1 - 1.5"
Maximum Holding Capacit.1,000
Overall Depth7.17 in
Overall Length4.82 in
Overall Width1.94 in
Product TypeVertical Clamp 2007-S, .
Service EnvironmentNormal
Spindle Thread SizeM8
Standard MaterialSteel
Tip MaterialNot Applicable
Toggle Lock PlusNo
Weight (lb)1.19

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG087601829.691In StockDe-Sta-Co1.229.69 @ 1
thumbzoomkinequip.com2007-S31.9119Destaco31.9 @ 1
thumbzoomfreertool.comDE-STA-CO-2007-S33.491In StockDESTACO1.1933.49 @ 1
thumbzoombscsource.com2007S37.491In StockDe-Sta-Co37.49 @ 1
thumbzoomprimebuy.com2007-S43.281In StockDestaco43.28 @ 1
thumbzoomNational Supply Network557229249.51In StockDe-Sta-Co49.5 @ 1
thumbzoomRaptor SuppliesAJ8BDZ51.1969771In StockDESTACO51.196977 @ 1
