Jet 321980

mpn321980
brandname: JET
manufacturername: JET

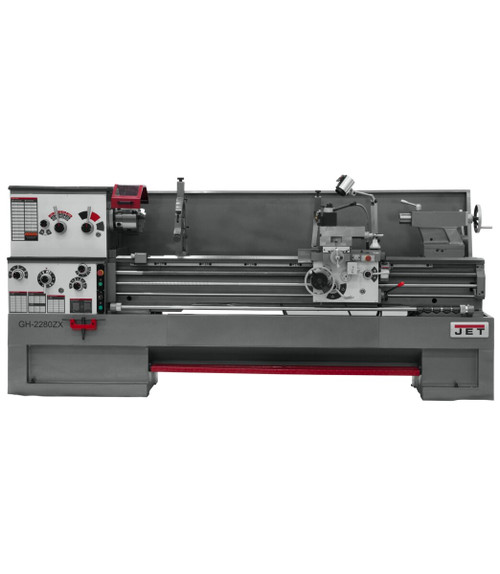

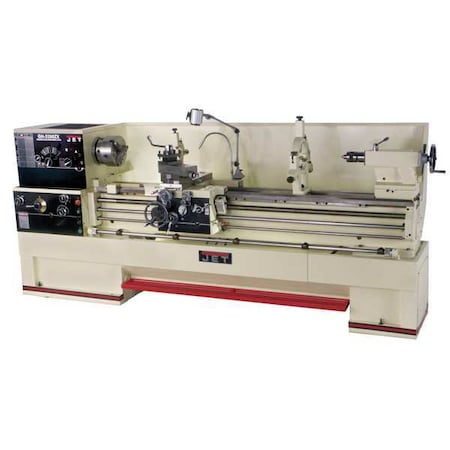

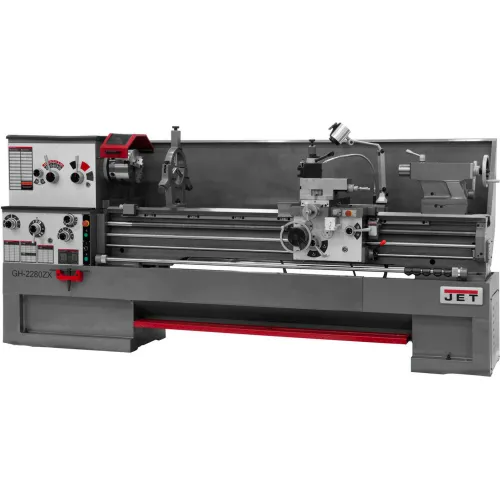

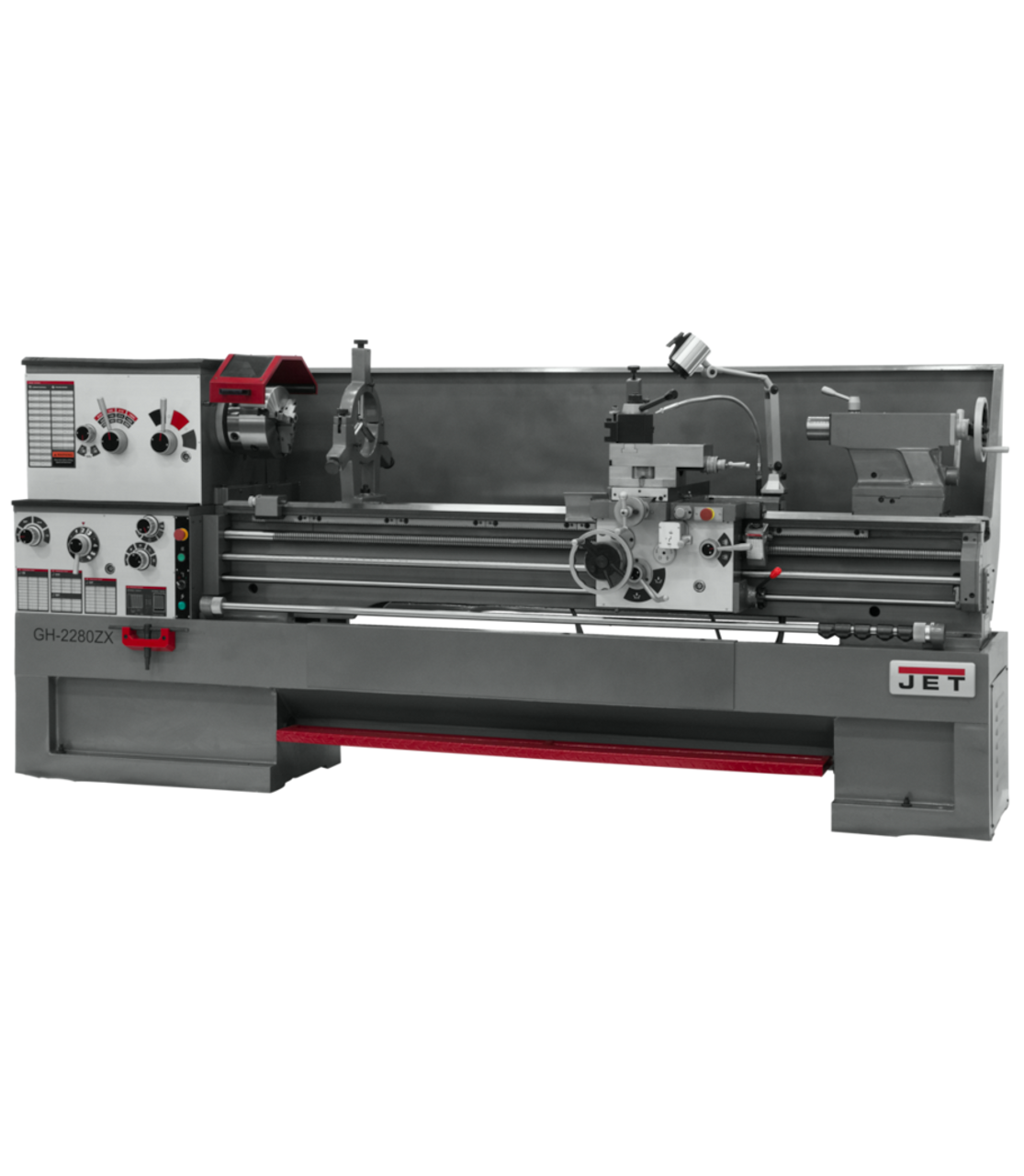

Jet GH-2280ZX, 3-1/8 Spindle Bore Geared Head Lathe

Brand: Jet
PartNumber: 321980
PackageQuantity: 1
Manufacturer: Jet
Label: Jet

Attributes

Key	Value
Bed Width	9 1/2 in
Carriage Travel (In.)	74-5/16, 74-5/16 </td
Compound Slide Travel (.	5-1/8 </td
Condition	New
Cross Feed Rates	122
Cross Slide Travel (In.)	12 </td
Cross Travel (In.)	12
Distance Between Center.	80 </td, 80
Drive	Geared Head </td
Features	3-1/8 in Bore Spindle i.
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Gap Length	12 in
Gap Length (In.)	12
Includes	(5) 12 in Faceplates, 1.
Item	Lathe
Length of Gap (In.)	12 </td
Longitudinal Feed Rates	122
Manufacturer	Jet
Max Tool Size (In.)	1 x 1 </td
Motor (HP)	10 HP, 230/460, 3 Ph .
Number of Inch Threads	61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24 </td
Number of Spindle Speeds	12 </td
Number of Threads (In.)	61
Number of Threads (mm)	24
Overall Dimensions (L x.	136 x 45 x 71 </td
Overall Height	136 in
Overall Length	136 in
Overall Width	45 in
Phase	Three
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	22 x 80 </td
SKU	321980
Spindle Bore (In.)	3-1/8, 3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Speed (RPM)	25 to 1800
Spindle Taper with Slee.	MT-7 (MT-5) </td
Steady Rest Capacity (I.	3/8 - 7-3/4 </td
Style (Type)	Engine - Large Spindle .
Swing Over Bed (In.)	22 </td
Swing Over Cross Slide .	13 </td, 13
Swing Through Gap (In.)	29-1/2 </td
Tailstock Spindle Trave.	5 </td
Tailstock Taper	MT3
Tailstock Travel (In.)	5
Taper in Tailstock Spin.	MT-5 </td
Thread Range (mm)	.05 to 20
UPC	66275552707
Voltage	230/460V AC
Weight (Lbs.)	6,933 </td
Width of Bed (In.)	13-1/8 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
penntoolco.com	113690	32999.0	1	In Stock		Jet		32999.0 @ 1
JB Tools	JB-DS-WLT-JT9-321980	32999.0	1	1		Jet		32999.0 @ 1
AceTool	JET-321980	32999.0	1	In Stock		Jet	6933.0	32999.0 @ 1
burnstools.com	321980	32999.0	1	In Stock		Jet		32999.0 @ 1
elitemetaltools.com	2432	32999.0	1	In Stock		JET		32999.0 @ 1
toolsplus.com	JET321980	32999.0	1	In Stock		JET		32999.0 @ 1
imsbolt.com	321980	32999.0	1	In Stock		JET		32999.0 @ 1
Zoro	G9879405	33549.0	1	In Stock		Jet	6933.0	33549.0 @ 1
Radwell	321980	34650.0	1	In Stock		JET		34650.0 @ 1
Global Industrial	WBB0230959	34739.0	1	In Stock	24	JET		34739.0 @ 1
bscsource.com	321980	46012.89	1	In Stock		Jet		46012.89 @ 1
