Magnecraft / Schneider 750XBXRC-24D

B07SLKLFB9

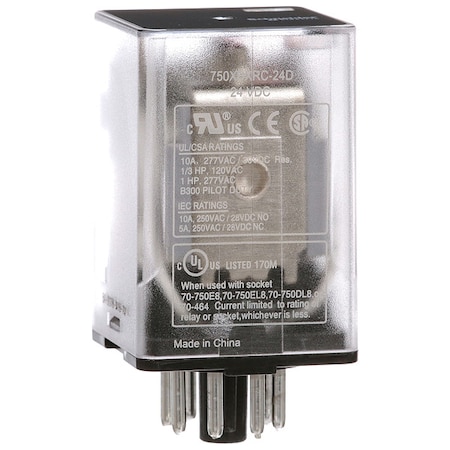

750XBXRC-24D, Electromechanical Relay 24VDC 470Ohm 10(NO)/5(NC) A DPDT ((35.7mm 35mm 53mm)) Socket General Purpose Relay (2 Items)

750XBXRC-24D, Electromechanical Relay 24VDC 470Ohm 10(NO)/5(NC) A DPDT ((35.7mm 35mm 53mm)) Socket General Purpose Relay (2 Items)zoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 277V, 10 A @ 277V
Base Type - Plug In Rel.Octal
Body Depth2.05 in
Body Depth - Relay1.40 in, 1.4 in
Body Height1.4 in
Body Height - Relay2.09 in
Body Width1.38 in
Body Width - Relay1.38 in
BrandSchneider Electric
Coil Voltage24 VDC
Coil Volts24V DC
Contact Current Rating10 A
Contact FormDPDT
Contact Form - RelayDPDT
Contact MaterialSilver Alloy, Gold Flas.
Contact Voltage Rating300 VAC
Control Voltage24
Current Rating10 A
Current Stock97
DC Contact Rating - Rel.10 A @ 28V, 10A @ 28V
Family SeriesSchneider Miscellaneous
FeaturesClear Cover
Flat Pin WidthNot Applicable
FunctionGeneral Purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
Gross Weight0.185 lbs
HP @ 120V1/3 hp
HP @ 240V1/2 hp
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item Number750XBXRC-24D
Lead TimeExpected to ship in 1-2.
ManufacturerSchneider
Manufacturer Part NumberC507203M
Mounting - RelayPlug In, Plug-In
Mounting TypeSocket Mount
Mpn750XBXRC-24D
Net Weight0.185 lbs
Number of Pins8
Number of Pins - Relay8
Overall Depth2.05 in
Overall Height - Relay2.09 in
Power Consumption - Rel.1.4 W
Primary TypePower Relays
Product Header750 Series Octal Relay
Push To TestNo
Relay TypeElectromechanical
Series750H Hazardous Location.
SKUZO-G9784521
Socket Code - RelayA
StandardsUL, CSA, CE Marked, UL .
Status IndicatorMechanical Flag
SubCategoryElectrical
Termination8-Pin Octal
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com750XBXRC-24D12.791130Magnecraft / Schneider Electric12.79 @ 1
grainger.caWWG35KR3018.83466571In StockSCHNEIDER ELECTRIC0.1618.8346657 @ 1
AmazonTPB076C84DCD20.071In Stock2SCHNEIDER ELECTRIC20.07 @ 1
AmazonUNKB076C84DCD20.071In StockSCHNEIDER ELECTRIC20.07 @ 1
thumbzoomGalco750XBXRC-24D-MGCR21.65103Schneider0.18521.65 @ 10
thumbzoomZoroG978452121.99197Schneider Electric0.1621.99 @ 1
us.rs-online.com7036390622.061214Schneider Electric/Legacy Relays22.06 @ 1
thumbzoomNewark36X196222.6615SCHNEIDER ELECTRIC/LEGACY RELAY22.66 @ 1
thumbzoomsimsupply.comZO-G978452132.0197Schneider Electric32.0 @ 1
thumbzoomRaptor SuppliesAH4TMC32.50371151In StockSCHNEIDER ELECTRIC32.5037115 @ 1
