Parker Hannifin 1.06BFDSR06.00

B01N9BK9MV

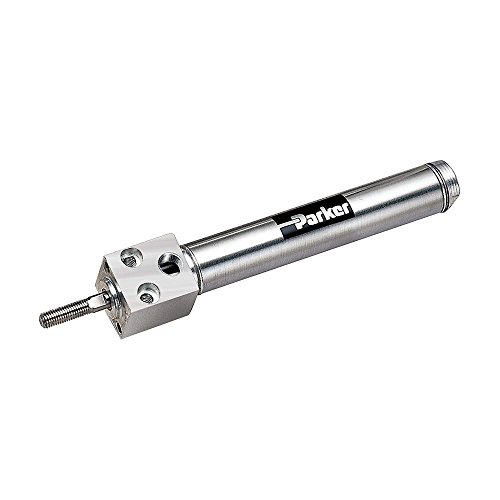

Parker Hannifin - 1.06BFDSR06.00-1 1/16 in Air Cylinder Bore Dia. with 6 in Stroke Stainless Steel, Front Block Mounted Air Cylinder

Parker Hannifin - 1.06BFDSR06.00-1 1/16 in Air Cylinder Bore Dia. with 6 in Stroke Stainless Steel, Front Block Mounted Air Cylinderzoom

Attributes

Key Value
Air Cylinder Bore Dia.1 1/16 in
Air Cylinder MountFront Block
Air Cylinder TypeRound Body
Body MaterialStainless steel
Bore Dia.1 1/16 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable
Dimension A3/4 in
Dimension B0.75 in
Dimension Cc0.312 in
Dimension D0.25 in
Dimension E0.88 in
Dimension F1.16 in
Dimension J0.19 in
Dimension Kk5/16"-24 UNF
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonNo
Max. Pressure250 psi
MountFront Block
Overall Length10.5 in
Piston MaterialAluminum
Piston Rod MaterialStainless steel
Port Size1/8 in FNPT
Rod Dia.0.312 in
Rod Thread Length0.75 in
Rod Thread Size5/16-24 UNF
Single Acting/Double Ac.Double Acting
Stroke6 in
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG619041448.751In StockParker0.7148.75 @ 1
Grainger20XR6670.21In Stock15PARKER70.2 @ 1
thumbzoomRaptor SuppliesAG9MRY118.5284881In StockPARKER118.528488 @ 1
