Ruland MSPX-40-40-F

B0060M0SAY

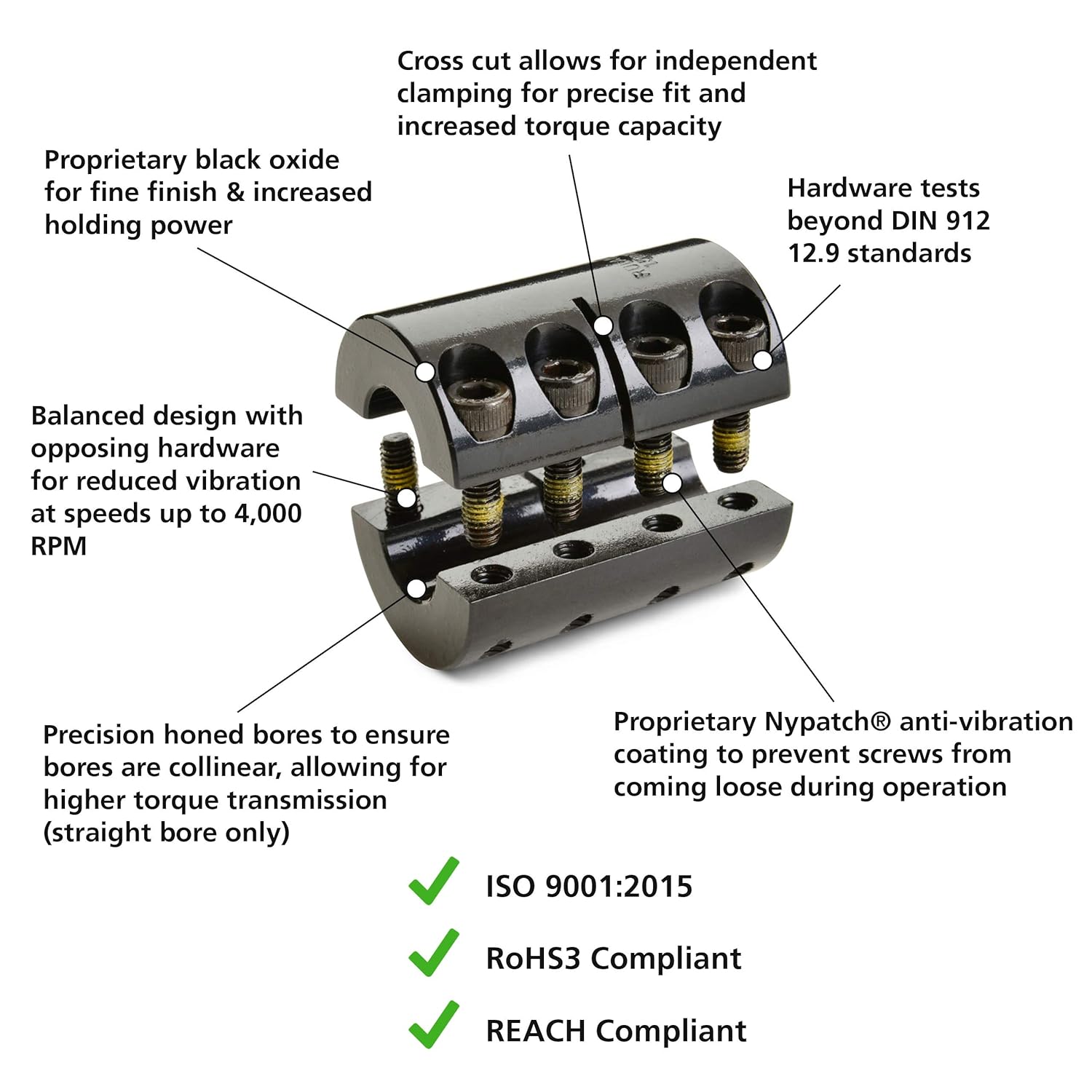

Ruland MSPX-40-40-F Two-Piece Clamping Rigid Coupling, Black Oxide Steel, Metric, 40mm Bore A Diameter, 40mm Bore B Diameter, 77mm OD, 108mm Length

Ruland MSPX-40-40-F Two-Piece Clamping Rigid Coupling, Black Oxide Steel, Metric, 40mm Bore A Diameter, 40mm Bore B Diameter, 77mm OD, 108mm Lengthzoom

Attributes

Key Value
angular misalignment:0
ApplicationFor Applications where .
axial motion:0.00 mm
B1 Max Shaft Penetration54.0 mm
B2 Max Shaft Penetration54.0 mm
Balanced DesignYes
Bore (B1)40 mm
bore - side 1:40 mm
bore - side 2:40 mm
Bore Dia.40 mm
Bore Tolerance+0.050 mm / +0.012 mm
bore tolerance:+.050 / +.012 mm
Clearance Dia.84.0 mm
Clearance Dia. (mm)84.00
Clearance Diameter (C) .84.0 mm
Country of OriginUSA
Country of Origin (subj.United States
coupling material:1215 Lead-Free Steel
coupling type:Two-Piece Clamp Without.
DesignFour Vibration Resistan.
Finishblack oxide
finish / coating:black oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp ScrewM8
Full Bearing Support Re.No
harmonization code:8483608000
Hex Wrench Size6.0 mm
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Length (L)108 mm
Machined FromBar Stock
ManufacturerRuland Manufacturing
MaterialBlack Oxide Steel
Material - CouplingsSteel
Material Specification1215 Carbon Steel Bar
Max. Torque11,800 in-lb
Max. Torque (In.-Lbs.)11800
maximum rpm:4000 RPM
Maximum Speed4,000 RPM
Moment of Inertia2.510 x 10
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)77 mm
Outside Dia.77 mm
outside diameter:77 mm
Overall Length108 mm
overall length:108 mm
parallel misalignment:0.00 mm
Precision Honed Bores?Yes
ProvidesExtra Holding Power for.
Rated Torque1325 Nm
Recommended Gap2.38 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw Finishblack oxide
screw finish:black oxide
Screw Location (R)31.8 mm
screw location:31.8 mm
Screw MaterialAlloy Steel with
Screw SizeM8
Screw Size (mm)M8
screw thread size:M8
screw type / material:Alloy Steel with Nypatc.
Seating Torque39 Nm
series:MSPX
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)40 mm
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
temperature rating:-40 to +350
TypeTwo Piece Clamp Type, W.
UNSPC31163009
UPC634529018385
Weight (lbs)5.895900
weight:6.36 lbs
With Keyway / Without K.Without Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB0060M0SAY220.921In StockRuland220.92 @ 1
AmazonTPB0060M0SAY269.471In Stock5Ruland Manufacturing269.47 @ 1
thumbzoomZoroG2515107336.01In Stock10Ruland5.9336.0 @ 1
thumbzoomRulandMSPX-40-40-F436.251In StockRuland5.8959436.25 @ 1
thumbzoomRaptor SuppliesAB9ACB790.46925751In StockRULAND MANUFACTURING790.4692575 @ 1
thumbzoommotionindustries.com02337550921.931In StockRuland Manufacturing Co Inc921.93 @ 1
