Burndy YAZ3CTC12

B00CBNNHZY

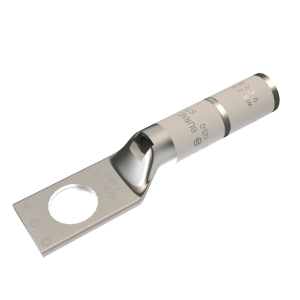

Burndy YAZ3CTC12 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal with Inspection Window, #3 AWG, #2 Sol Conductor, 1/2" Stud Hole Size, 0.83" Tongue Width, 2.83" Length

Burndy YAZ3CTC12 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal with Inspection Window, #3 AWG, #2 Sol Conductor, 1/2" Stud Hole Size, 0.83" Tongue Width, 2.83" Lengthzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYAZ3CTC12
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorWhite
Color CodeWhite
Conductor - Copper Soli.3 AWG
Conductor - Copper Soli.2 Sol
Conductor - Copper Str .3 AWG
Conductor - Copper Str .3 AWG
Conductor - MaterialCOPPER
Conductor Size3 AWG
Conductor TypeCODE
Connector TypeLONG BARREL
Country of OriginUnited States
Country of Origin (subj.United States
Die Index9
Dimension - B Length fr.1-1/4 in
Dimension - B Length in.1.25 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Bolt Size i.0.5
Dimension - Hole Size f.1/2
Dimension - Hole Size i.0.53
Dimension - Hole Size mm13.5 mm
Dimension - L Length Ov.67 mm
Dimension - Length Over.2.63 in
Dimension - N inch0.53 in
Dimension - Outside Dia.0.38 in
Dimension - Pad Width i.0.71 in
Dimension - Strip Lengt.1-5/16
Dimension - Stud Size f.1/2
Dimension - Stud Size i.1/2
Dimension - Z inch0.55 in
EU RoHS IndicatorYes
Family SeriesBurndy Terminals, YAZ S.
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Gross Weight0.0019 lbs
Industry Standard(s)UL 486A-486B
InsulatedNon-Insulated
Item NumberYAZ3CTC12
Item TypeLong Barrel, Skive, Tin.
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYAZ3CTC12
MaterialCOPPER
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYAZ
Rating - KVA35 kV
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - RoHS Compli.CM
Sub BrandHYLUG
Terminal MaterialCOPPER
Terminal TypeBarrel - Long
Tongue Width0.83 "
TypeLong Barrel, Skive, Tin.
UL ListedYes
UPC781810239629
Voltage - Maximum35000
Voltage Rating35, 35 kV
Volts600 V
Wire Size3 AWG
Wire Size (AWG)3 AWG
Wire Strip Length1.3125 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4024387058.831In Stock59Burndy8.83 @ 1
thumbzoomusmegastore.comYAZ3CTC1210.841In StockBurndy10.84 @ 1
thumbzoomGalcoYAZ3CTC12-BURN15.131In StockBurndy0.001915.13 @ 1
thumbzoomcrescentelectric.com12433216.891In StockBurndy-US, a Hubbell affiliate16.89 @ 1
