- mpnC54045
- brandname: CLEVELAND
- manufacturername: CLEVELAND

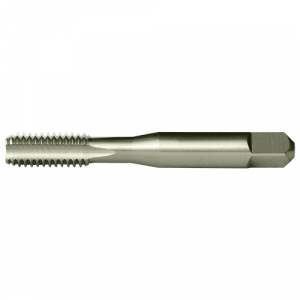

Cleveland C54045 M1.6x0.35 D3 2fl Clev Hss Bot. Hand Tap
- Brand: Cleveland Twist Drill
- PartNumber: C54045
- Manufacturer: Cleveland
- Label: Cleveland
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 1.35 mm |
| 65% Thread Drill Size | 1.30 mm |
| 75% Thread Drill Size | 1.25 mm |
| Chamfer Type | Bottoming |
| Class of Fit | 6H |
| Country of Origin (subj. | France |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Helix Angle | 0 Degrees |
| Item | Straight Flute Hand Tap |
| List Number | 1003 |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 41.27 mm, 41.28mm |
| Pitch Diameter Limit | D3 |
| Primary Material Applic. | All Materials |
| Primary Material Applic. | H, K, M, N, O, P, S |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | K, M, N, P |
| Series | 1003 |
| Shank Dia. | 3.58mm |
| Shank Diameter | 3.58 mm |
| Shank Length | 33.34 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 2.79 mm |
| Standards | USCTI Table 302A |
| Style | 1003 |
| Surface Condition | Bright |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Metric |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M1.6 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M1.6-0.35 |
| Tap Thread Type | Metric |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 7.94mm, 7.94 mm |
| Thread Limit | D3 |
| Thread Limit / Class of. | D3 / 6H |
| Thread Pitch | 0.35, 0.35mm |
| Thread Size | M1.6x0.35 |
| Thread Standard | Metric, Ground |
| Tool Size | M1.6x0.35 |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120067 | 14.36 | 3 | In Stock | | Cleveland | | 14.36 @ 3 |
 | Megadepot | C54045 | 17.41 | 1 | In Stock | | Cleveland | | 17.41 @ 1 |
 | Zoro | G2844009 | 18.0 | 1 | In Stock | | Cleveland | 0.01 | 18.0 @ 1 |
 | usmegastore.com | C54045 | 18.12 | 1 | In Stock | | Cleveland | | 18.12 @ 1 |
 | bscsource.com | C54045 | 19.89 | 1 | In Stock | | Cleveland | | 19.89 @ 1 |
 | sustainablesupply.com | C2975289 | 21.68 | 1 | In Stock | | Cleveland | 0.01 | 21.68 @ 1 |
 | Guardian | 71354963 | 35.51 | 1 | In Stock | | Cleveland | | 35.51 @ 1 |
 | National Supply Network | 71354963 | 42.64 | 1 | In Stock | | Cleveland | | 42.64 @ 1 |
