- mpnDH361FRK
- brandname: Eaton / Cutler Hammer
- manufacturername: Eaton / Cutler Hammer

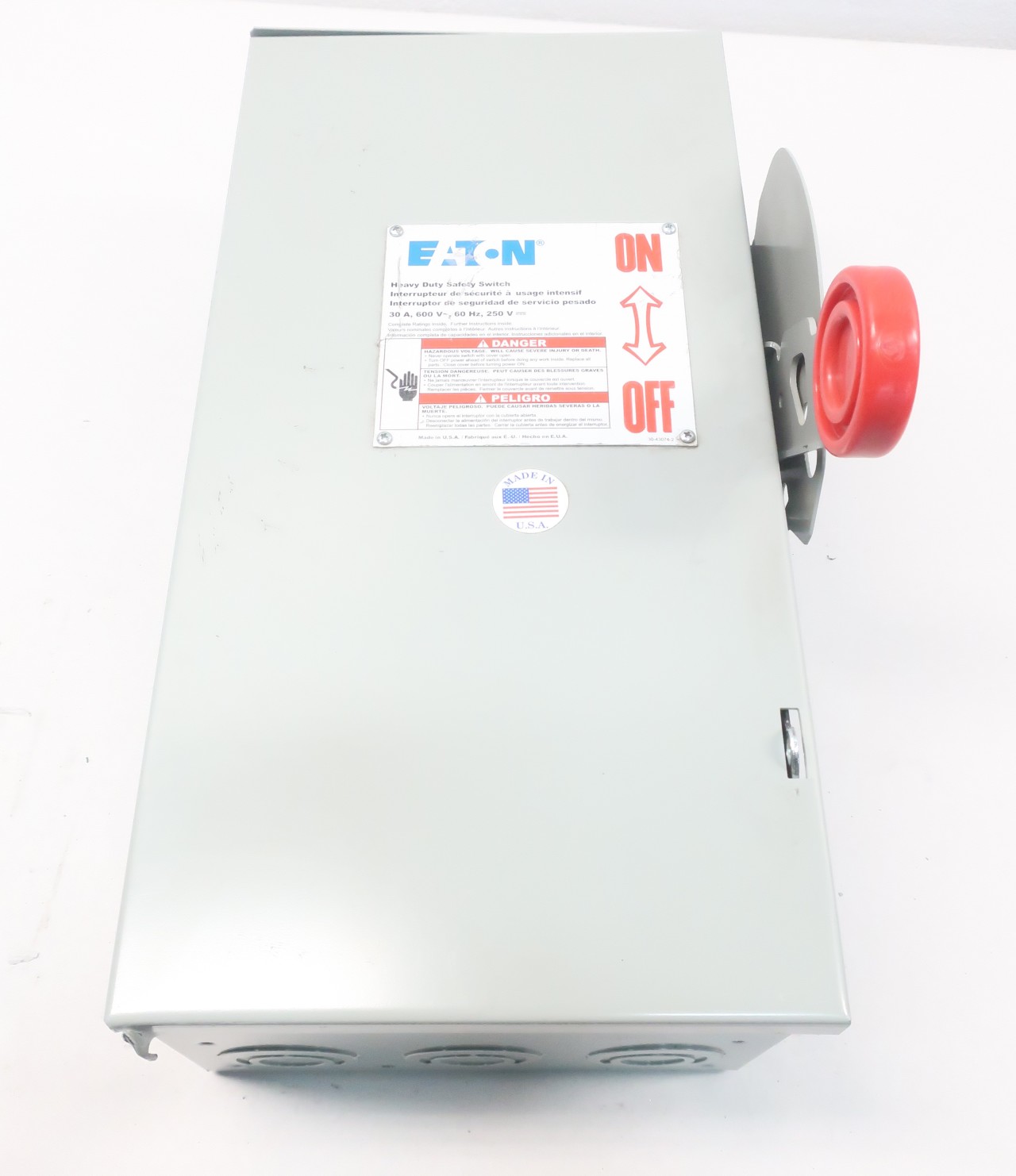

Eaton DH361FRK 3 Wire 3 Pole Fusible K Series Heavy-Duty Safety Switch 600 Volt AC 30 Amp NEMA 3R
- Brand: Eaton
- PartNumber: DH361FRK
- PackageQuantity: 1
- Manufacturer: EATON CUTLER HAMMER
- Label: EATON CUTLER HAMMER
Attributes
| Key | Value |
|---|
| Actuator | No |
| Alternate Mfr Part Numb. | DH361FRK |
| Amperage | 30 |
| amperage rating | 30 |
| Amperage Rating | 30 Amp, 30 |
| Amps | 30 |
| Amps AC | 30 A |
| Application | Commercial / Institutio. |
| Approval | UL, NEMA |
| Approvals | UL Listed |
| Body Style | No |
| Brand | Eaton, EATON CUTLER-HAM. |
| Brand Name | Eaton |
| Carton | 1 |
| Catalog Number | DH361FRK |
| Category Description | Disconnects |
| Classification | Disconnects |
| Color Code | No |
| Configuration | Single |
| Contact Configuration | 3PST |
| Contact Form | 3PST |
| Country of Origin | United States |
| Country Of Origin | United States of America |
| Current Rating | 30 A |
| Degree of Protection | No |
| Depth | 10 in |
| Description | 30A/3P HD Fusible Safet. |
| Dimensions | 8.5 Inch Length x 9.5 I. |
| dimensions | 16.5000 IN X 9.5000 IN . |
| Duty | Heavy |
| Duty Rating | Heavy Duty |
| Element Type | No |
| Enclosure Height | 0 to 9 3/4 inches |
| Enclosure Material | Painted Galvanized Steel |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | NEMA 3R |
| Enclosure Width | 0 to 9 3/4 inches |
| Energy Star Flag | No |
| extra long description | ETN DH361FRK 30A/3P HD . |
| Features | Eaton?s Heavy Duty Fusi. |
| Finish | Painted Galvanized |
| For Use With | Class H Fuse |
| Frame Type | DH |
| Fuse Class | No |
| Fuse Type | Cartridge, Class H, Cla. |
| Fusibility | Fusible |
| Fusible | Fusible without Neutral |
| Fusible / Nonfusible | Fusible |
| Fusible/Non Fusible | Fusible |
| Gauge/Conductor | 14 to 2 AWG |
| GTIN | 00782113205496 |
| Height | 15.9 in, 8.5 Inch |
| Horsepower, Max, 1 Phas. | 7.5 |
| Horsepower, Max, 1 Phas. | 15 |
| Horsepower, Max, 3 Phas. | 10 |
| Horsepower, Max, 3 Phas. | 20 |
| HP | 15 hp @ 480V AC |
| Interrupting Rating | 200kAIC at 600V |
| IP Rating | 14 |
| IP/NEMA Rating | NEMA 3R |
| Item Name | Heavy-Duty Safety Switch |
| Item Type | Single-throw fused safe. |
| Length | 16.5 in |
| Long Description | Safety Switch, 30 A, 60. |
| Made in USA | yes |
| Manufacturer | Eaton Cutler Hammer, Ea. |
| Manufacturer Name | Eaton |
| Manufacturer Part Number | DH361FRK |
| Manufacturers Part Numb. | DH361FRK |
| Material | Steel, Painted Galvaniz. |
| Material of Construction | Galvanized Steel |
| Maximum Current | 30 A |
| Maximum Load Capacity | 1-Phase: 7.5 hp at 480 . |
| media | yes |
| Metallic / Non-Metallic | Metallic |
| Mounting | Surface, Panel/Surface |
| Mounting Type | Panel Mount, Surface |
| Mpn | DH361FRK |
| NEMA Enclosure Type | 3R |
| Nema Rating | 3R |
| NEMA Rating | NEMA 3R |
| nema rating | NEMA 3R |
| Neutral Assembly Includ. | No |
| Neutral Type | No |
| Number of Poles | 3 |
| Number Of Wires | 3 |
| Number of Wires | 3.0000, 3, 2, Three-wire |
| Operation | Safety |
| Overall Height | 15.88 in;403.4 mm |
| Overall Length | 8.13 in;206.5 mm |
| Overall Width | 10 in;254 mm |
| Part Number | DH361FRK |
| Phase | 3, 1 or 3 |
| Poles | 3 |
| Primary Type | Safety Switch |
| Product Type | Safety Switch |
| Protection Method | Fusible |
| RoHS Flag | Contact manufacturer |
| Series | K Series, DH |
| Short Description | Safety Switch, 30 A, 2 . |
| Special Features | High Performance and Re. |
| Standard | UL Listed |
| standard | UL Listed |
| Standards | UL 98 E5239 Listed, NEM. |
| Standards Met | UL98 Listed |
| Type | Fusible safety switch, . |
| UNSPSC | 39122205, N/A |
| Upc | 782113205496 |
| UPC | 782113205496, 782113205. |
| UPC Code | 782113205496 |
| Voltage | 600VAC, 250VDC, 600V AC. |
| Voltage Rating | 600 V ac;250 V dc, 600 . |
| Volts AC | 600 |
| Volts DC | 250 |
| Weight | 20 lb;9.08 kg, 12 Pound |
| Weight per each | 17 |
| Width | 93 in, 8.1 in |
| Wire Gauge | 14 to 2 AWG, Cu/Al |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Task Surplus | MC055-4C1 | 135.0 | 1 | In Stock | | EATON | | 135.0 @ 1 |
 | NRI Industrial | D732516 | 250.35 | 1 | In Stock | | CUTLER HAMMER | | 250.35 @ 1 |
| Monarch Electric | 3601 | 370.07 | 1 | In Stock | | Eaton | | 370.07 @ 1 |
 | superbreakers.com | DH361FRK | 439.96 | 1 | 11 | | Eaton | | 439.96 @ 1 |
 | turtle.com | CUH DH361FRK | 501.53 | 1 | In Stock | | Eaton | | 501.53 @ 1 |
 | motorsandcontrol.com | DH361FRK | 524.33 | 1 | In Stock | | Eaton Cutler Hammer | | 524.33 @ 1 |
 | sustainablesupply.com | C1189670 | 546.47 | 1 | In Stock | | Eaton | 13.91 | 546.47 @ 1 |
 | Elliott Electric | DH361FRK | 550.28 | 1 | In Stock | | Eaton | 17.0 | 550.28 @ 1 |
 | Zoro | G8817681 | 585.06 | 1 | 14 | | Eaton | 13.91 | 585.06 @ 1 |
| kirbyrisk.com | 525190 | 625.07 | 1 | 1 | | Cutler Hammer | | 625.07 @ 1 |
 | Walker Industrial | DH361FRK | 657.36 | 1 | In Stock | | Eaton Cutler-Hammer | | 657.36 @ 1 |
| simplybreakers.com | DH361FRK | 699.99 | 1 | In Stock | | Eaton Cutler-Hammer | | 699.99 @ 1 |
 | Platt.com | 0010633 | 736.9 | 1 | 152 | | Eaton | | 736.9 @ 1 |
 | kempstoncontrols.co.uk | DH361FRK | 825.0847605 | 1 | In Stock | | Eaton | | 825.0847605 @ 1 |
 | bscsource.com | DH361FRK | 1090.69 | 1 | In Stock | | Eaton Cutler-Hammer | | 1090.69 @ 1 |
 | National Supply Network | 00438440 | 1130.37 | 1 | In Stock | | Eaton Cutler-Hammer | | 1130.37 @ 1 |
 | cappusa.com | 943447 | 1274.66 | 1 | In Stock | | Eaton | | 1274.66 @ 1 |
| us.rs-online.com | 70056897 | 1287.54 | 1 | 1 | | Eaton - Cutler Hammer | 12.0 | 1287.54 @ 1 |
 | Newark | 49K9904 | 1361.45 | 1 | 376 | | EATON CUTLER HAMMER | | 1361.45 @ 1 |
 | crescentelectric.com | 127120 | 1502.55 | 1 | 3 | | Eaton | | 1502.55 @ 1 |
