Hubbell

mpnHBL430B5W
brandname: Hubbell
manufacturername: Hubbell

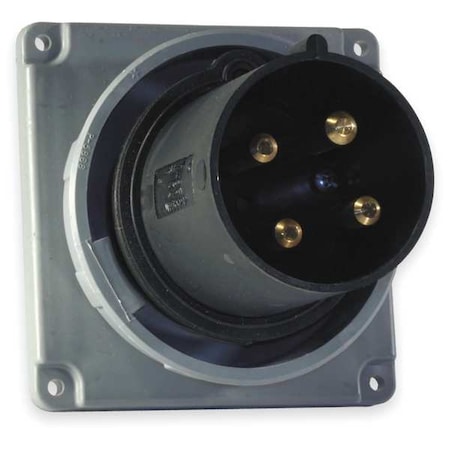

Hubbell HBL430B5W AC Inlet IEC60309 430B5W IEC 309 Pin & Sleeve Inlet

Brand: Hubbell

Attributes

Key	Value
Amperage	30 A
Amps	30
Amps - Plugs and Recept.	30
Application	High Ampacity Watertigh.
Approvals	CSA, UL
Aux/Pilot Contacts	None
Body Material	Zytel 101 Nylon
Body Material - Pin and.	Zytel 101 Nylon
Built-In Strain Relief	Yes
Case Material	Non-Metallic
Color	Black
Color - Plugs and Recep.	Black
Connection Description	Water Resistant
Connectivity	Pressure Terminal Screws
Cord Size	12 to 8 AWG
Current / amperage rati.	30 A
Current Rating	30 A
Current rating	30 A
Dielectric strength	Withstands 3000V Minimu.
Display size	Standard Sized Product
Display Size	Standard Sized Product
Environmental conditions	Watertight
Face Diameter	2.49 in
Family Series	Hubbell Plugs & Recepta.
Flange Diameter	2.72 in
Gross Weight	1 lb
Grounding Style	IEC
Insulation	Insulated Body
IP Rating	IP67
Item	Watertight Pin and Slee.
Item - Plugs and Recept.	Watertight Pin and Slee.
Item Number	HBL430B5W
Item type	Single Flanged
Lockout-Tagout	No
Manufacturer	Hubbell
Manufacturer Part Number	HBL430B5W
Material	Thermoplastic
Material - mounting har.	Screw Mounting
Maximum Wire Size	10 AWG
Minimum Wire Size	12 AWG
Nema Rating	Non-NEMA
Net Weight	0 lbs
Number of poles	3-Pole
Number of Poles	3
Number of wires	4-Wire
Number of Wires	4
OEM brand name	Hubbell wiring device-k.
Phase	Three, Three phase
Phase - Electrical	3
Product Series	IEC Watertight
Series	HBL Heavy Duty
Style	Standard Service
Temperature Range (F)	-40-167 ?F
Temperature rating	-40 C w/o impact
Terminal Type	Screw
Type	Watertight Inlet
Voltage	3 Phase 600 VAC, 600VAC.
Voltage - Plugs and Rec.	600V AC
Voltage Color Code	Black
Voltage rating descript.	3 Phase 600 VAC
Wattage	18000
Wire size	#12 AWG to #10 AWG
Wire Size	10 AWG, 11 AWG, 12 AWG,.
Wire Size Range	12-10 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Onlinecomponents.com	HBL430B5W	197.1	1	In Stock	Hubbell		197.1 @ 1
Zoro	G0393601	248.75	1	In Stock	Hubbell	1.04	248.75 @ 1
sustainablesupply.com	C2890409	315.7	1	In Stock	Hubbell Kellems	1.04	315.7 @ 1
MRO Supply	1022689	336.0	1	In Stock	Hubbell Wiring		336.0 @ 1
gordonelectricsupply.com	HBL430B5W	358.15	1	In Stock	HUBBELL		358.15 @ 1
standardelectricsupply.com	2288860	360.0	1	In Stock	Hubbell		360.0 @ 1
Galco	HBL430B5W-HBBL	370.59	1	In Stock	Hubbell	1.0	370.59 @ 1
us.rs-online.com	71992877	387.51	1	In Stock	Hubbell Wiring Device-Kellems		387.51 @ 1
Radwell	HBL430B5W	410.0	1	1	HUBBELL KELLEMS		410.0 @ 1
Raptor Supplies	AB3TPQ	614.922399	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		614.922399 @ 1
