CAI - HUBBELL WIRING DEVICE-KELLEMS PH3004PA010

mpnPH3004PA010
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

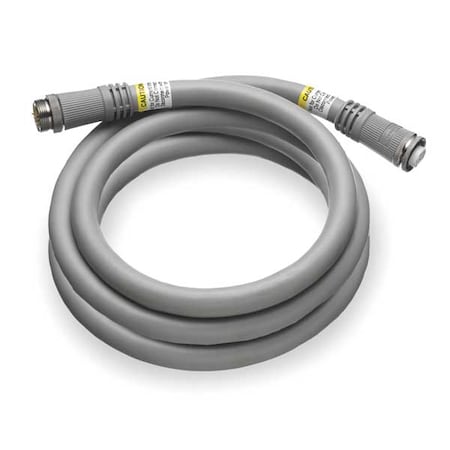

Hubbell Wiring Device-KELLEMS 4-Wire Double Ended Cable, 30 Amps AC

Brand: CAI - HUBBELL WIRING DEVICE-KELLEMS
PartNumber: PH3004PA010
PackageQuantity: 1
Manufacturer: CAI - HUBBELL WIRING DEVICE-KELLEMS
Label: CAI - HUBBELL WIRING DEVICE-KELLEMS

Attributes

Key	Value
Amperage	30 A
Amperage Rating	30
Amps AC	30 A
Application	Quick Connect/Disconnec.
Approvals	cULus
Brand	Hubbell Wiring Device -.
Cable length	10 ft
Cable Length	10 ft.
Cable Type	PVC
Catalog Number	PH3004PA010
Color	Gray, Green, Yellow, Bl.
Conductor Material	Copper
Conductor size	#10 AWG
Conductor Size	10 AWG
Conductor type	Copper
Connector	Linkosity
Connector Class	Mini (1 in)
Connector Configuration	Male to Female
Connector Size	1-16 UN
Connector Type	Double Ended Male/Female
Construction	Fabricated
Cord Length (Ft.)	10 ft
Cordset Ends	Double-Ended
Cordset Type	Signal
Country of Origin	United States
Current / amperage rati.	30 A
Current Rating	30 Amps
Current rating	30 A
Enclosure Type	NEMA 4X
EU RoHS indicator	Yes
Family Series	Hubbell Cordsets
Features	Double Ended; PVC Insul.
For Use With	2XE16 and 2XE18 Enclosu.
Gauge/Conductor	10/4
Gross Weight	3.35 lbs
Indicator Type	None
Insulation	PVC
IP Rating	IP67
Item	TC-ER Cable
Item Number	PH3004PA010
Item Type	Double Ended Cable, Mal.
Jacket Color	Gray
Jacket Type	TC-ER
Length	3.05 Meters, 10'
Made in USA	Yes
Manufacturer	Hubbell Wiring Device-K.
Manufacturer Part Number	PH3004PA010
Max. Amps	30A
Max. Voltage	600VAC
Maximum Voltage	600 VAC
Net Weight	0 lbs
Number of Conductors	4-Pole, 4
Number of Pins	4
Number of poles	3-Pole
Number of wires	4-Wire
Number of Wires	4
O.D.	0.75
Outside Diameter	0.75
Plug End	Male/Female
Plug type	Linkosity
Plug Type	4-Wire, Linkosity
Product Type	Cable
Side 1 Angle	Straight
Side 1 Connector	1 Inch
Side 1 Gender	Male
Side 2 Angle	Straight
Side 2 Connector	1 Inch
Side 2 Gender	Female
Special Features	Green/Yellow/Black Wires
Standard	UL 508A, UL 2238 and UL.
Strands	Multi
Sub Brand	Linkosity System
Temp. Range	-20 Degrees to 105 Degr.
Temperature Range (C)	-20 to 105 Degrees C
Temperature rating	-20 Deg C to 105 Deg C
Temperature Rating	-20 Deg C to 105 Deg C
Type	Double Ended
UL 94 Flammability Rati.	HB
UPC	783585504704
Voltage	600 V
Voltage Rating	600
Wire Gauge (AWG)	10
Wire Size	10 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G0632396	192.5	1	In Stock	Hubbell	3.35	192.5 @ 1
sustainablesupply.com	C2890460	249.62	1	In Stock	Hubbell Kellems	3.35	249.62 @ 1
gordonelectricsupply.com	PH3004PA010	265.35	1	In Stock	HUBBELL		265.35 @ 1
Galco	PH3004PA010-HBBL	281.43	1	In Stock	Hubbell	3.35	281.43 @ 1
MRO Supply	1032951	281.43	1	In Stock	Hubbell Wiring		281.43 @ 1
crescentelectric.com	202476	324.55	1	In Stock	Hubbell Wiring Device - Kellems		324.55 @ 1
Newark	71K9260	458.78	1	In Stock	HUBBELL WIRING DEVICES		458.78 @ 1
Raptor Supplies	AC3XEY	491.1758865	1	In Stock	HUBBELL WIRING DEVICE-KELLEMS		491.1758865 @ 1
kirbyrisk.com	1992308	525.48	1	In Stock	Hubbell		525.48 @ 1
