Hubbell USB15A5BK

B06X15WC5X

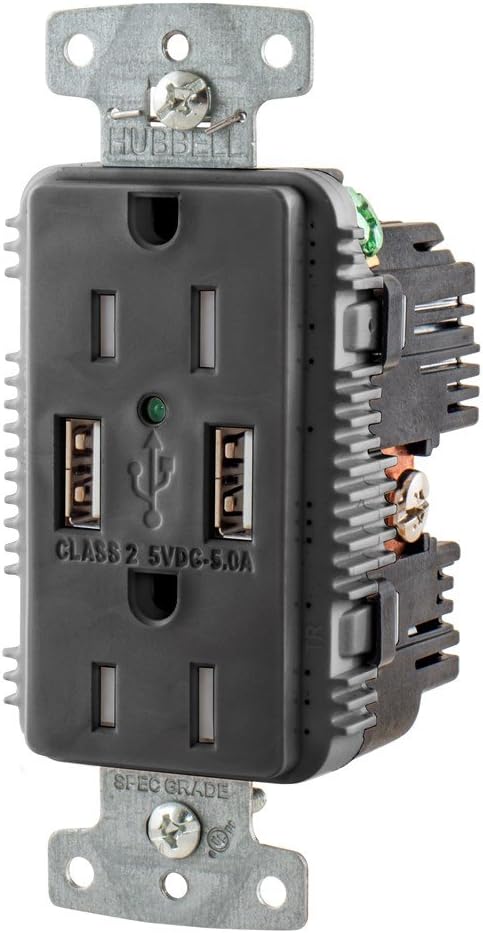

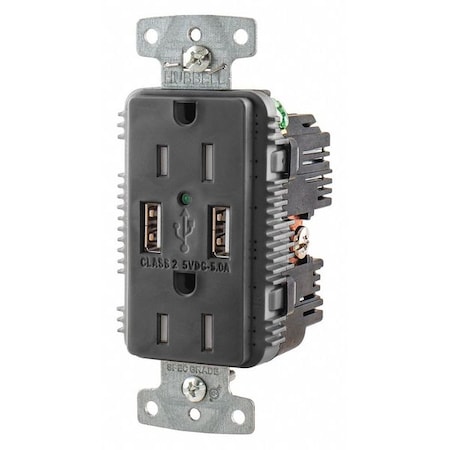

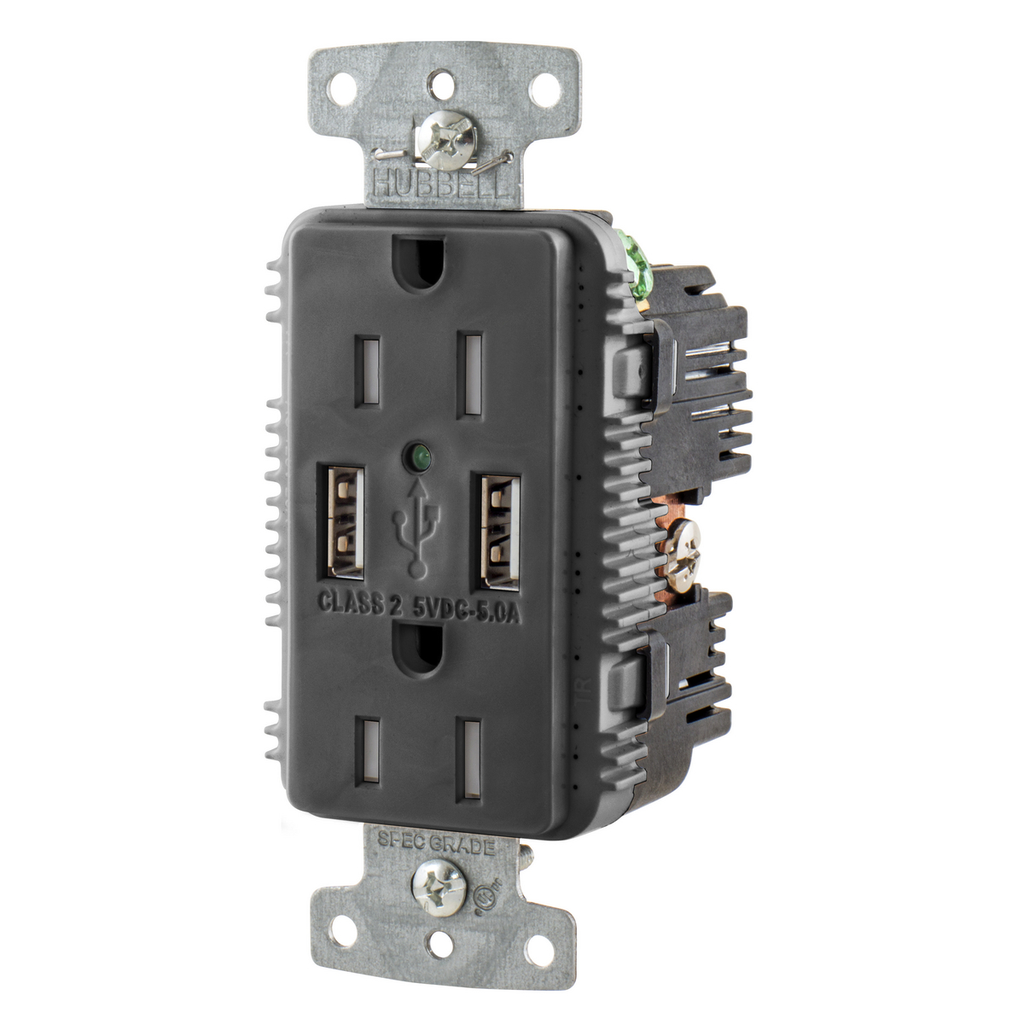

Hubbell USB15A5BK USB Charger Type A. USB Charger Outlet in Black

Hubbell USB15A5BK USB Charger Type A. USB Charger Outlet in Blackzoom

Attributes

Key Value
22
2.0000002.000000
Amps - Plugs and Recep.15
Amps - Plugs and Recept.15
Application EnvironmentCommercial
ApprovalscUL
ASINB06X15WC5X
Batteries Required?No
BrandHubbell
Class CodeA04
ColorBlack
Color - Plugs and Recep.Black
Contact MaterialPlated Steel
Country of OriginCN
Country of Origin (subj.China
Current / amperage rati.15 A
Current / Amperage Rati.15 A
Current Rating15 A
Current Stock42
Each - Height1.900 in
Each - Length4.200 in
Each - Width2.200 in
Electrical Connection T.Straight Blade
EU RoHS IndicatorContact Manufacturer
Family SeriesHubbell Plugs & Recepta.
Freight Class Code06168002
GFCINo
Gross Weight0.4 lbs
GroundingGrounded
Harmonization Code8536698000
Horsepower Rating1/2 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialRTP
HP1/2 hp
Hubbell Wiring SystemsHubbell Wiring Systems
Image Actual Or Represe.A
Included ComponentsUSB15A5BK
International ShippingNo
Isolated GroundNo
ItemUSB Charger Receptacle
Item - Plugs and Recept.USB Charger Receptacle
Item model numberUSB15A5BK
Item NumberUSB15A5BK
Item Package Quantity1
ManufacturerHubbell
Manufacturer Part NumberUSB15A5BK
MarketCommercial
Material of ConstructionNylon
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting Type - Plugs a.Flush
MpnUSB15A5BK
MSDS FlagNo
NEMA Configuration5-15R
Nema Rating5-15R
NEMA Rating5-15R
NEMA Receptacle Configu.5-15R
NEMA Receptacle Configu.5-15R
Net Weight0.35 lbs
NoNo
Number of Outlets2
Number of poles2-Pole
Number of Poles2, 2-Pole
Number Of Poles2-Pole
Number of USB Ports2
Number Of Wires3-Wire
Number of Wires3, 3-Wire
Number of wires3-Wire
Outlet Type - Plugs and.Decorator Duplex
Overall Depth1.82 in
Part NumberUSB15A5BK
Phase1, Single
Power Indicating LightYes
Power IndicatorYes
Product SeriesCommercial Grade USB Ch.
Receptacle TypeDuplex
Replaced Catalog NumberUSB15X2BK
Resistance PropertiesTamper Resistant
SeriesHeavy Duty
SKUZO-G3953481
StandardscULus
StyleStyle Line Decorator
Sub Class CodeA04A062
SubCategoryElectrical
Tamper ResistanceYes
Tamper ResistantYes
TypeTwo Type A Port
UL 94 Flammability Rati.V-2
UPC883778306921
UPC Code883778306921
USBYes
USB Charging Capacity5.0A @ 5V DC, 5.0 A @ 5.
USB Connection TypeA
USB ConnectorType A
USB15A5BKUSB15A5BK
Voltage125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Voltage Rating Descript.125 V
Voltage rating descript.125 V
Weather ResistantNo
Weather Resistant - Plu.No
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side
YesYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoominverterservicecenter.comHUBB-USB15A5BK31.991In StockHubbell Wiring Systems31.99 @ 1
rvpartssource.comHUBB-USB15A5BK35.82881In StockHubbell Wiring Systems2.035.8288 @ 1
thumbzoomZoroG395348141.051In StockHubbell0.3941.05 @ 1
thumbzoommayerelectric.comHUBUSB15A5BK41.421In StockHUBBELL WIRING DEVICES41.42 @ 1
AmazonTPB06X15WC5X41.541In Stock2Hubbell41.54 @ 1
thumbzoomGalcoUSB15A5BK-HBBL42.181In StockHubbell0.442.18 @ 1
thumbzoomfirstchoicemarine.comHUB-USB15A5BK42.34140Hubbell42.34 @ 1
thumbzoomturtle.comHEP USB15A5BK43.651In StockHubbell43.65 @ 1
thumbzoomMRO Supply502197644.361In StockHubbell Wiring44.36 @ 1
steinerelectric.com102780949.941In StockHubbell Wiring Device-Kellems49.94 @ 1
thumbzoomAmazonSCB06X15WC5X54.081In StockHubbell54.08 @ 1
thumbzoomsimsupply.comZO-G395348155.3142Hubbell55.3 @ 1
grainger.caHBLUSB15A5BK56.445932621In StockHUBBELL WIRING DEVICE-KELLEMS0.38556.44593262 @ 1
Newark94Y413661.171In StockHUBBELL WIRING DEVICES61.17 @ 1
kirbyrisk.com332682062.6611Hubbell62.66 @ 1
us.rs-online.com7100632063.35141Hubbell Wiring Device-Kellems63.35 @ 1
thumbzoomRaptor SuppliesCD2WVX84.3152311In StockHUBBELL WIRING DEVICE-KELLEMS84.315231 @ 1
