501568-0607

mpn501568-0607
brandname: Molex
manufacturername: Molex

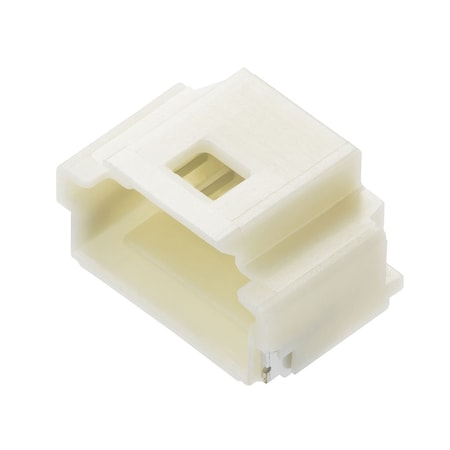

MOLEX 501568-0607 WIRE-BOARD CONNECTOR, HEADER, 6POS, 1MM (1 piece)

MOLEX 501568-0607 WIRE-BOARD CONNECTOR, HEADER, 6POS, 1MM (1 piece)

zoom

PartNumber: 501568-0607
Size: 1 Piece
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	501568-0607
Application	Signal ; Wire-to-Board
Applications	General Purpose
Base Product Number	501568
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	40.0?in (1.02?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1 A
Current Rating (Amps)	-
Description	CONN HEADER SMD R/A 6PO.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM7897TR-ND - Tape & Re.
Family Name	Pico-Clasp
Fastening Type	Latch Holder
Features	Solder Retention
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.185" (4.70mm)
Insulation Material	Polyamide (PA), Nylon
Manufacturer	Molex
Manufacturer Product Nu.	5015680607
Manufacturer Standard L.	9 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Surface Mount, Right An.
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Tape & Reel (TR)
Package Quantity	1
Pitch	1.00 mm (0.039")
Pitch - Mating	0.039" (1.00mm)
Plating Material	Tin
Primary Type	Board Mount
Product Status	Active
Row Spacing - Mating	-
Series	Pico-Clasp 501568, 5015.
Shrouding	Shrouded - 4 Wall
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Termination	Solder, Surface Mount
Type	Right Angle Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Avnet	5015680607	0.327	1300	10400		Molex		0.327 @ 1300
	Waldom	MOLEX 501568-0607	0.33	1300	16900		MOLEX		0.33 @ 1300
	Onlinecomponents.com	501568-0607	0.346	1300	100		Molex		0.346 @ 100
	Newark	28X2797	0.421	7800	100		MOLEX		0.421 @ 7800
	jensentools.com	10190901	0.45	1	13000		Molex		0.45 @ 100
	NEP Electronics	501568-0607	0.4706	1300	13000		Molex		0.4706 @ 1300
	Component Electronics	SMT-44310	0.58	1	535		Molex		0.58 @ 100
	Digi-Key	1531489	0.5896	1	35580		Molex		0.5896 @ 100
	TME	MX-501568-0607	0.634	3	100		MOLEX		0.634 @ 100
	us.rs-online.com	70372952	0.73	1	1300		Molex Incorporated		0.73 @ 100
	RS Delivers	406-714P	0.9072	1	640		Molex		0.9072 @ 100
	Radwell	501568-0607	2.25	5	100		MOLEX		2.25 @ 100
	Zoro	G7768001	767.0	1	100		Molex		767.0 @ 100
