Orion Fans OA825EC-UR-1WBXC

B0997PFHBL

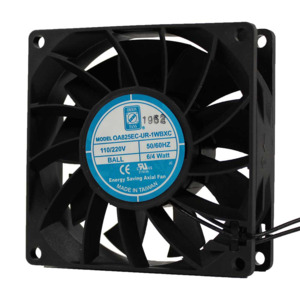

ORION FANS OA825EC-UR-1WBXC EC Fans, Universal Voltage, 80x25mm, 110/220VAC, 40.2CFM, 2.2W, 38dBA, 3000RPM, 0.2 Inches Max. Static Pressure, Dual Ball Bearing, Lead Wires

ORION FANS OA825EC-UR-1WBXC EC Fans, Universal Voltage, 80x25mm, 110/220VAC, 40.2CFM, 2.2W, 38dBA, 3000RPM, 0.2 Inches Max. Static Pressure, Dual Ball Bearing, Lead Wireszoom

Attributes

Key Value
Air Flow40.2 CFM (1.13m?/min)
Approval AgencyCE, cURus, TUV, UR
Base Product NumberOA825EC
Bearing TypeBall
CategoryFans, Thermal Management
Current Rating (Amps)-
DescriptionEC FAN 80X25MM 85-265VA.
Detailed DescriptionFan Tubeaxial 110/220VA.
Digi-Key Part Number1053-OA825EC-UR-1WBXC-ND
Fan TypeTubeaxial
FeaturesDual Voltage, Electroni.
Ingress Protection-
Lifetime @ Temp.70000 Hrs @ 40?C
ManufacturerOrion Fans
Manufacturer Product Nu.OA825EC-UR-1WBXC
Manufacturer Standard L.19 Weeks
Material - BladePolybutylene Terephthal.
Material - FramePolybutylene Terephthal.
MfrOrion Fans
Noise38.0dB
Operating Temperature14 ~ 158?F (-10 ~ 70?C)
PackageBox
Power (Watts)2.20W
Product StatusActive
RPM3000 RPM
SeriesOA825EC XC
Size / DimensionSquare - 80mm L x 80mm H
Static Pressure0.200 in H2O (49.8 Pa)
Termination2 Wire Leads
Voltage - Rated110/220VAC
Voltage Range85 ~ 265VAC
Weight0.18 lb (81.65 g)
Width25.20mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomjensentools.com1014232621.01In StockOrion Fans21.0 @ 1
thumbzoomDigi-Key1067393722.89166Orion Fans0.1822.89 @ 1
thumbzoomNewark91AH961323.8211ORION FANS23.82 @ 1
