TE Connectivity / AMP 3-2199250-2

B083GB14YR

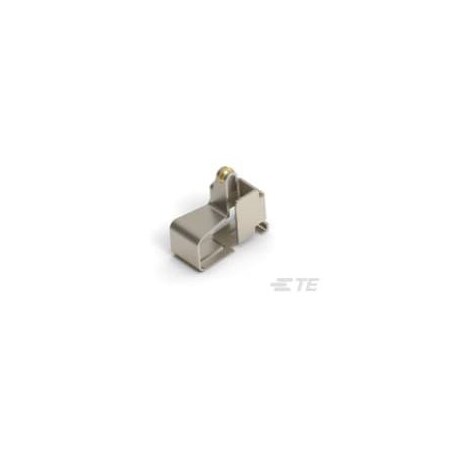

3-2199250-2, Customer Drawing for Type C Clip (250 Items)

3-2199250-2, Customer Drawing for Type C Clip (250 Items)zoom

Attributes

Key Value
Attachment MethodSolder
Base Product Number2199250
CategoryRF/IF and RFID
Circuit ApplicationSignal
ConnectorPrinted Circuit Board
Connector SystemBoard-to-Board
Contact Base MaterialCopper Alloy
Contact Current Rating .2
Contact Length3.45?mm?[?.136?in?]
Contact Underplating Ma.Nickel
Contact Width1.5?mm?[?.059?in?]
Contact Working Range (.2?mm?[?.079?in?]
Contact Working Range (.2.7?mm?[?.106?in?]
Country of Origin (subj.China
Height0.114" (2.90mm)
Length0.136" (3.45mm)
MaterialCopper Alloy
MfrTE Connectivity AMP Con.
Number of Positions1
Operating Temperature-
Operating Temperature R.-40 ? 85, -40 ? 85, -40.
PackageTape & Reel (TR)
Packaging MethodTape & Reel
Packaging Quantity5000
Part StatusActive
PlatingGold
Plating - Thickness19.685?in (0.50?m)
Point of Contact Area P.Gold
ScalableYes
SealableNo
Series-
Shape-
Shelf Life-
Shelf Life Start-
Side ProtectedYes
Spring Finger TypeC-Clip
Storage/Refrigeration T.-
TypeShield Finger, Pre-Load.
Uncompressed Height2.9?mm?[?.114?in?]
Width0.059" (1.50mm)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-2199250-20.121500081673TE CONNECTIVITY/AMP BRAND0.121 @ 5000
RS Delivers164-93900.15721250TE Connectivity0.1572 @ 250
Newark76AC60150.164500066673AMP - TE CONNECTIVITY0.164 @ 5000
Future Electronics50597400.20165000250TE Connectivity0.2016 @ 5000
Digi-Key50446890.212658500050756TE Connectivity AMP Connectors0.212658 @ 250
thumbzoomZoroG6010687340.3150000250Te Connectivity0.31 @ 50000
AmazonTPB083GB14YR68.8512501TE Connectivity / AMP68.85 @ 250
