- mpnCNMM54265
- brandname: WIDIA
- manufacturername: WIDIA

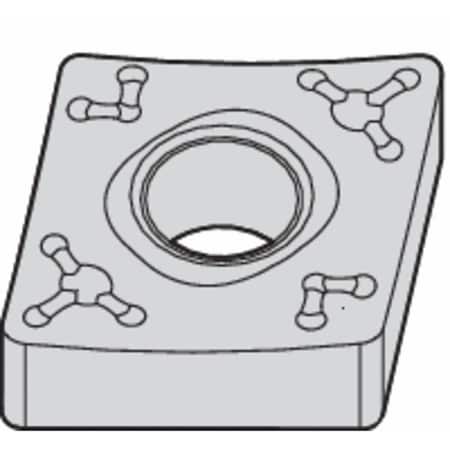

WIDIA CNMM54265 WP25CT Victory CNMM-65 High Performance Turning Inserts, Carbide, 0.031" / 0.8mm Radius, Heavy Roughing, Grade WP25CT
- Brand: WIDIA
- PartNumber: 5698366
- Model: 5698366
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | CNMM54265 |
| ANSI Number | CNMM54265 |
| Brand | WIDIA |
| Cast Iron (K) Compatibi. | No |
| Catalog Page | N/A |
| Chip-Breaker | Yes, 65 |
| Chip-Breaker Code | 65 |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 0 Degrees, 0 ? |
| Coating | TiN |
| Coolant Fed | Non-Coolant Through |
| Corner Radius | 2, 1/32 in |
| Country of Origin | Germany |
| Country of Origin (subj. | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.12mm |
| Finish - Machining | TiN |
| For Use With | Toolholders, Boring Bars |
| Grade | WP35CT |
| Hardened (H) Compatibil. | No |
| Included Angle | 80 Degrees, 80 ? |
| Inscribed Circle | 0.625", 5/8 in, 5 |
| Insert Application | Roughing |
| Insert Code | CNMM542 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 542 |
| Insert Style | CNMM |
| Insert Thickness | 0.2500" |
| ISO Number | CNMM16060865 |
| Item | Turning Insert, Diamond. |
| Item? | 433Y57 |
| Manufacturer Grade | WP35CT, WP25CT |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mfr. Model? | CNMM54265 |
| Mounting Hole Dia. | 0.250" |
| Mounting Style | Clamp |
| No. of Edges | 4 |
| Non Ferrous (N) Compati. | No |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 4 |
| Primary Material Applic. | Steel |
| Primary Material Applic. | P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Seat Size | 542 |
| Secondary Material Appl. | Cast Iron, Stainless St. |
| Secondary Material Appl. | K, M |
| Shape | Rhombic |
| Stainless (M) Compatibi. | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compati. | No |
| Thickness | 1/4 in, 4 |
| UNSPSC | 23171618 |
| Workpiece Compatibility | Stainless (M), Steel (P) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7680771 | 21.59 | 10 | 35 | 66 | Widia | 0.42 | 21.59 @ 35 |
| Grainger | 433Y57 | 23.29 | 1 | 35 | | WIDIA | | 23.29 @ 35 |
| grainger.ca | WID5698367 | 27.96530518 | 1 | 35 | | WIDIA | 0.419 | 27.96530518 @ 35 |
