- mpnC54120
- brandname: CLEVELAND
- manufacturername: CLEVELAND

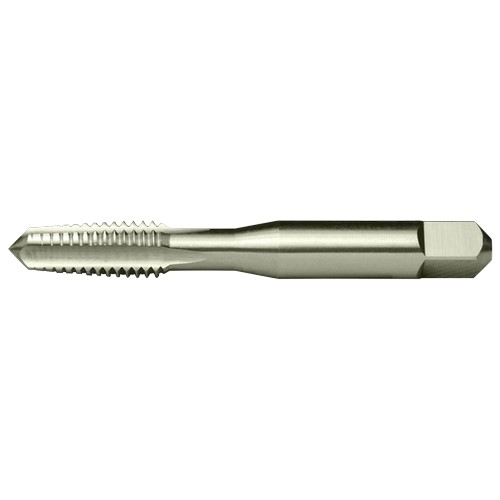

Cleveland Twist 3 56 Thread 3-Flute High Speed Steel Taper Hand Tap
- Brand: Cleveland Twist Drill
- PartNumber: C54120
- Manufacturer: Cleveland Twist Drill
- Label: Cleveland Twist Drill
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | #44 |
| 65% Thread Drill Size | 2.13 mm |
| 75% Thread Drill Size | #46 |
| Chamfer Type | Tapered |
| Class of Fit | 2B |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Helix Angle | 0 Degrees |
| Item | Straight Flute Hand Tap |
| List Number | 1001 |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Pipe, Imperial |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 1-13/16", 1-13/16 in |
| Pitch Diameter Limit | H2 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Series | 1001 |
| Shank Dia. | Shank Dia.: 0.141" |
| Shank Diameter | 0.141 in |
| Shank Length | 1 5/16 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.1100 in |
| Standards | USCTI Table 302A |
| Style | 1001 |
| Surface Condition | Bright |
| Tap Chamfer | Taper |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | #3 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | #3-56 |
| Tap Thread Type | UNF |
| Thread Direction | Right Hand |
| Thread Form | UNF |
| Thread Length | 1/2", 1/2 in |
| Thread Limit | H2 |
| Thread Limit / Class of. | H2 / 2B |
| Thread Pitch | 56 |
| Thread Size | #3-56 |
| Thread Standard | Ground/UNF, UNF |
| Threads per Inch | 56 |
| Tool Size | #3-56 UNF |
| Type | General Purpose Standard |
