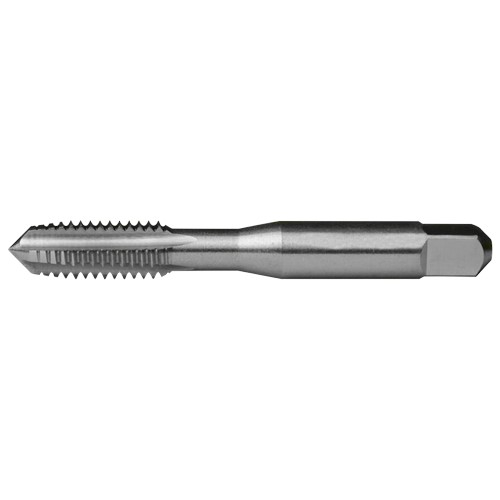

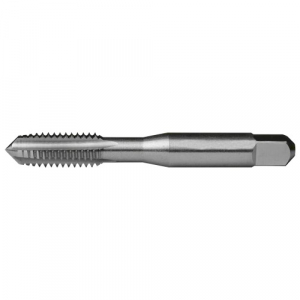

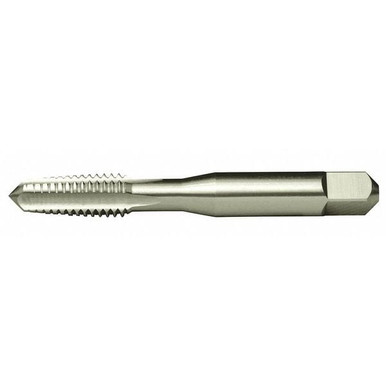

Cleveland Twist 10 24 Thread 2-Flute High Speed Steel Plug Hand Tap
- Brand: Cleveland Twist Drill
- PartNumber: C54318
- Manufacturer: Cleveland Twist Drill
- Label: Cleveland Twist Drill
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | #21 |
| 65% Thread Drill Size | #23 |
| 75% Thread Drill Size | #25 |
| Brand | Cleveland |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Current Stock | 12 |
| Cutting Direction | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| International Shipping | No |
| Item | Straight Flute Tap, Str. |
| List Number | 1002 |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Pipe, Imperial |
| Mpn | C54318 |
| Number of Flutes | 2 |
| Overall Length | 2 3/8 in, 2-3/8", 2.38 . |
| Pitch Diameter Limit | H2 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Series | 1002 |
| Shank Dia. | 3/16 in, Shank Dia.: 0.. |
| Shank Diameter | 0.194 in |
| Shank Length | 1 1/2 in |
| Shank Type - Machining | Straight |
| SKU | ZO-G2844937 |
| Spiral Direction | Neutral |
| Square Size | 0.1520 in |
| Standards | USCTI TABLE 302A |
| Style | 1002 |
| SubCategory | Machining/Threading |
| Surface Condition | Bright |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Grouping | Individual |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | #10 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | #10-24 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 7/8", 1/2 in |
| Thread Limit | H2 |
| Thread Limit / Class of. | H2 / 2B |
| Thread Pitch | 24 |
| Thread Size | #10-24 |
| Thread Standard | UNC, Ground/UNC |
| Threads per Inch | 24 |
| Tool Size | #10-24 UNC |
| Type | General Purpose Standard |
| UPC | 697334543183 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120174 | 7.85 | 5 | 2 | | Cleveland | | 7.85 @ 5 |
 | Megadepot | C54318 | 8.27 | 1 | 2 | | Cleveland | | 8.27 @ 2 |
 | Zoro | G2844937 | 8.49 | 1 | 19 | | Cleveland | 0.02 | 8.49 @ 2 |
 | usmegastore.com | C54318 | 10.68 | 1 | 2 | | Cleveland | | 10.68 @ 2 |
 | sustainablesupply.com | C2975050 | 11.86 | 1 | 2 | | Cleveland | 0.02 | 11.86 @ 2 |
| Grainger | 435M13 | 14.32 | 1 | 2 | | CLEVELAND | | 14.32 @ 2 |
 | National Supply Network | 40202509 | 17.135 | 1 | 2 | | Cleveland | | 17.135 @ 2 |
 | simsupply.com | ZO-G2844937 | 17.46 | 1 | 12 | | Cleveland | | 17.46 @ 2 |
 | bscsource.com | C54318 | 18.69 | 1 | 2 | | Cleveland | | 18.69 @ 2 |
 | Guardian | 40202509 | 20.01 | 1 | 2 | | Cleveland | | 20.01 @ 2 |
