- mpn328618
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

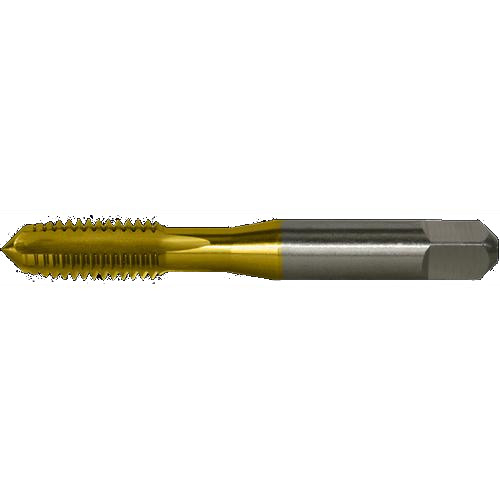

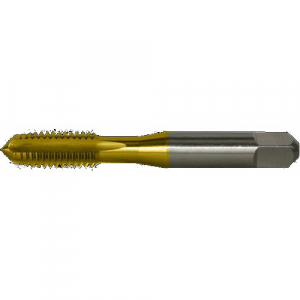

Straight Flute Hand Tap, M10-1.25, Plug, 4 Flutes, Metric Coarse
- Brand: Greenfield Threading
- PartNumber: 328618
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 8.90mm, 8.90 mm |
| 65% Thread Drill Size | 11/32", 11/32 in |
| 75% Thread Drill Size | 8.50 mm, 8.50mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Class of Fit | 2B |
| Diameter | 0.3937" |
| Extended Neck | Yes |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Item | Plug Tap, Straight Flut. |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel |
| Measurement System | Metric |
| Number of Flutes | 4 |
| Overall Length | 74.61mm, 2.9375 in, 2.9. |
| Overall Length (Metric) | 74.61mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | D6 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 9.67mm, 9.68mm |
| Shank End | Square |
| Shank Length | 1.6880", 1 11/16 in |
| Shank Size | 0.381", 0.381 in |
| Shank Size (Metric) | 9.68mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.286" |
| Shank Square Width (Met. | 7.26mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 7.26mm, 7.26 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Plug |
| Tap Construction | Plug, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D6 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M10 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M10-1.25 |
| Tap Thread Type | Metric Coarse |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1.25 in, 1.25", 31.75mm |
| Thread Length (Metric) | 31.75mm |
| Thread Limit | D6 |
| Thread Limit / Class of. | D6 / 2B |
| Thread Pitch | 1.5, 1,50 mm |
| Thread Size | M10, M10x1.5 |
| Thread Standard | Metric Coarse |
| Thread Tolerance | 2B |
| Tool Size | M10x1.5 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 328618 | 11.86 | 1 | In Stock | | Greenfield Threading | | 11.86 @ 1 |
 | heavydutydepot.com | 328618 | 11.86 | 9 | In Stock | | Greenfield Threading | | 11.86 @ 9 |
 | usmegastore.com | 328618 | 11.9 | 1 | In Stock | | Greenfield Threading | | 11.9 @ 1 |
 | Zoro | G1824221 | 12.59 | 1 | 35 | | Greenfield Threading | 0.08 | 12.59 @ 1 |
 | rshughes.com | 933672-86187 | 13.48 | 6 | In Stock | | Greenfield Industries | | 13.48 @ 6 |
 | sustainablesupply.com | C2782640 | 20.35 | 1 | In Stock | | Greenfield Threading | 0.08 | 20.35 @ 1 |
| grainger.ca | GNF328618 | 22.0645024 | 1 | In Stock | | GREENFIELD THREADING | 0.08 | 22.0645024 @ 1 |
