Schneider Electric QO120PLILC

B011OZ2700

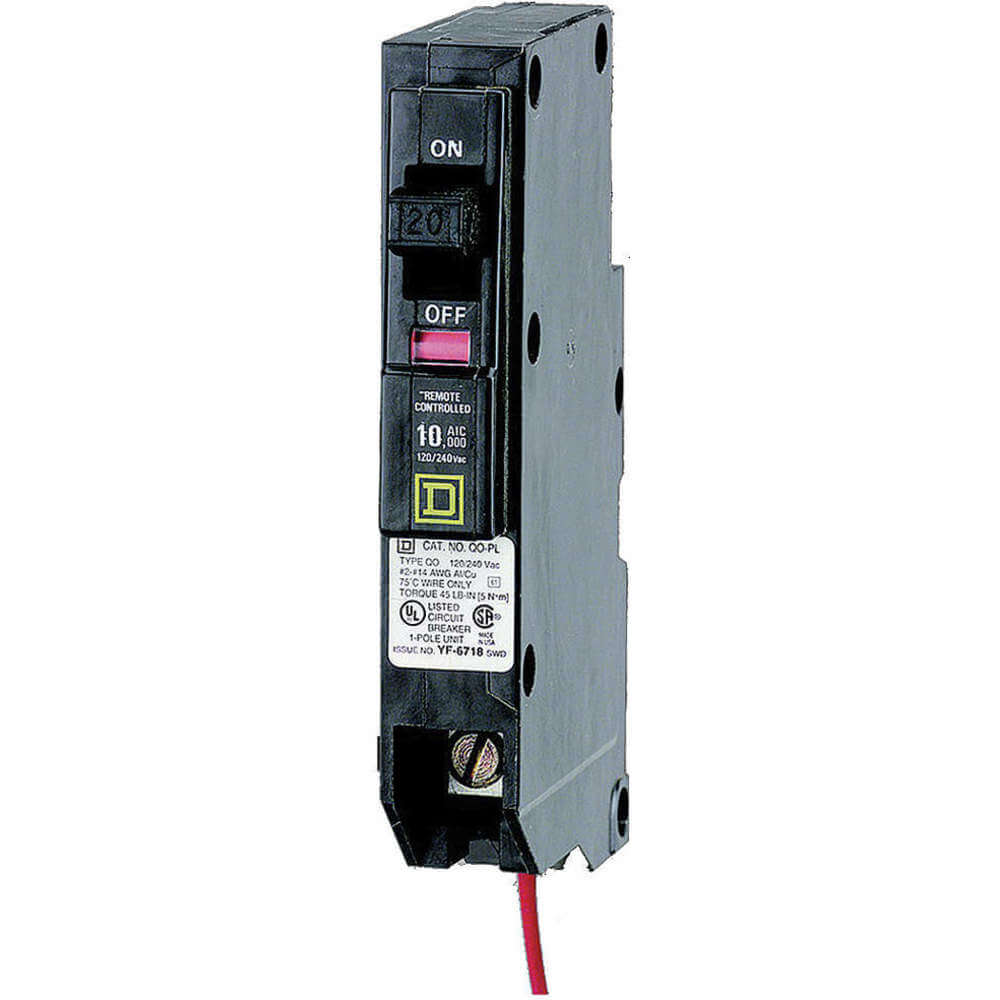

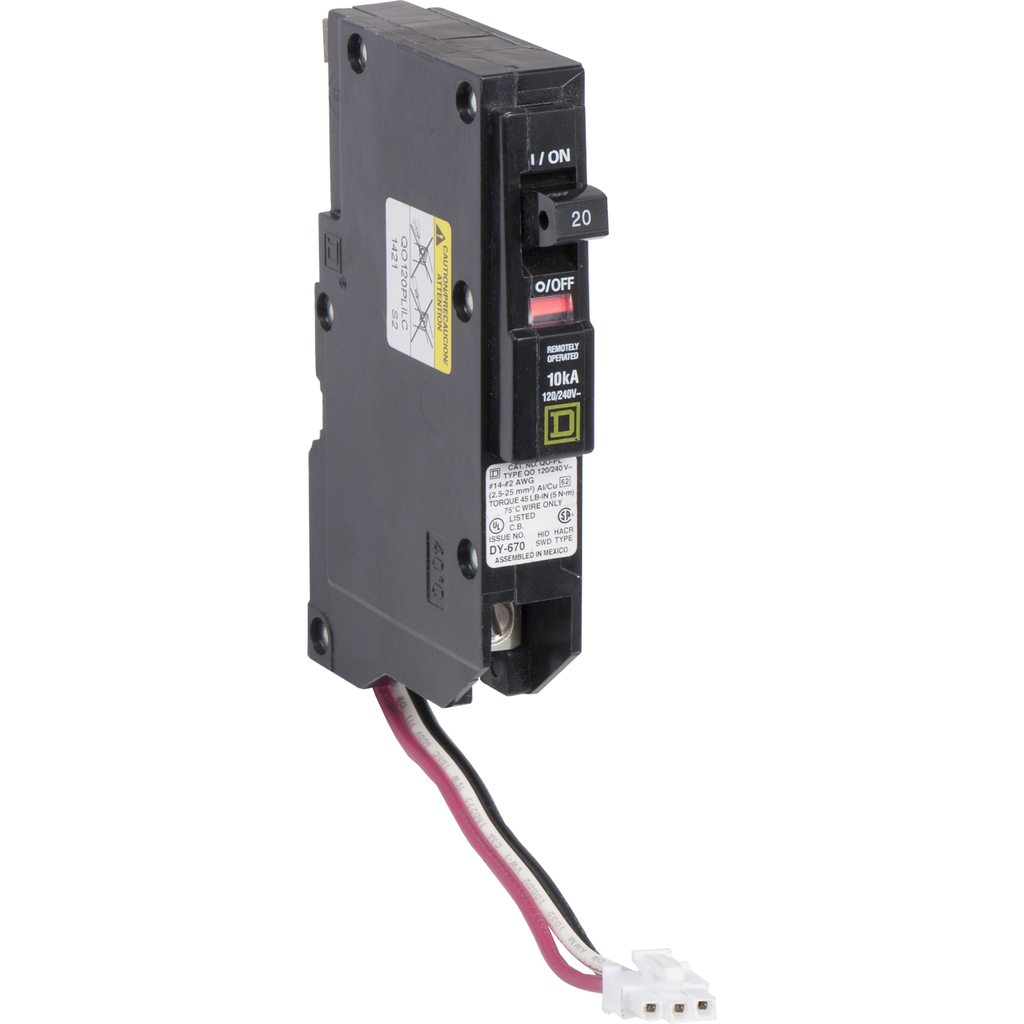

SQUARE D BY SCHNEIDER ELECTRIC QO120PLILC MINIATURE CB INTELLIGENT LC 120/240V 20A

SQUARE D BY SCHNEIDER ELECTRIC QO120PLILC MINIATURE CB INTELLIGENT LC 120/240V 20Azoom

Attributes

Key Value
100% RatedNo
[Ue] Rated Operational .120/240 V AC
AC Voltage Rating120/240V AC
Actuator TypePaddle
Alarm SwitchNo
Ambient Air Temperature.40 ?C
Amperage20
Amperage Rating20
Amps20 A
ApplicationSwitching Duty rated Ap.
ApprovalUL, CSA
ApprovalsCSA, UL
Auxiliary SwitchNo
Awg GaugeAWG 12...AWG 2 aluminium
AWG RangeAWG 12...AWG 2 aluminium
BrandSquare D, Schneider Ele.
Breaking Capacity10 kA 120/240 V AC 50/6.
BusbarNo
Catalog NumberQO120PLILC
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorPaddle
Circuit Breaker Applica.Switching Duty rated
Circuit Breaker Mountin.Plug In
Circuit Breaker TypePowerLink
ColorBlack
ConnectionPLUG-ON NEUTRAL
Country of OriginMX - Mexico, Mexico
Current Rating20A, 20 A
Current Stock9
DC Voltage RatingNot Rated
Depth2.91 in, 74 mm
ECCNEAR99
Electrical Connectionbox lugs
Eu Rohs DirectiveCompliant
Family SeriesSquare D Circuit Breake.
FeaturesMercury Free
For Use WithMfr. No. EER260LLCR, NQ.
FrameQO
Frame TypeQO
Frequency Rating50/60 HZ
GFCINo
Gross Weight0 lbs
Gtin785901446477
Halogen Content Perform.Halogen free product
Height4.57, 116 mm, 4.60"
International ShippingNo
Interrupt Rating10 kA at 120/240V AC, 1.
Interrupting Rating10kA at 120/240VAC
ItemMiniature Circuit Break.
Item NumberQO120PLILC
Item TypeMiniature Circuit Break.
Lead TimeExpected to ship in 1-2.
Length2.91 in, 4.55 in
Length (Straight Wirewa.4.55 in
Line Rated Current20 A
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberQO120PLILC
Max Voltage240 VAC
Max Wire Size2 AWG
Max. AIR Rating10kA at 120/240V AC
Max. Wire Size2 AWG
Mercury FreeYes
Min Wire Size12 AWG
Min. Wire Size12 AWG
Mounting ModePlug-In
Mounting TypePlug-In
MpnQO120PLILC
Net Weight0 lbs, 0.213 kg
Neutral PoleNo
No. of Poles1-Pole
Number of Poles1
Number Of Spaces Requir.1
Operating Temperature40 A Degrees C
Phase1
Poles1
Poles Description1P
Product CertificationsUL Listed || CSA
Product Or Component Ty.miniature circuit-break.
Product SeriesQO
ProtectionThermal Magnetic
Range Of ProductQO
Rated Voltage120/240V AC
Reach RegulationReference contains Subs.
RoHSYes
Rohs Exemption Informat.Yes
SeriesQO
Shunt TripNo
SKUZO-G7226161
Special FeaturesTRIPS THERMALLY (IN AN .
StandardUL LISTED, CSA CERTIFIED
StandardsRoHS, CSA Certified, UL.
Sub BrandQO POWERLINK
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temperature Rating104?F (40?C)
Terminal ConnectionBox Lug, Lug
Tightening Torque4-4 N.m
Torque4.6-4.6 N.m
Toxic Heavy Metal FreeYes
Trip TypeTHERMAL-MAGNETIC
Undervoltage ReleaseNo
UNSPSC39121603
UPC785901446477
Voltage120, 120/240VAC
Voltage Rating120/240 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width0.75 in, 19 mm, 0.75, 1.
Wire GaugeAWG 12 to AWG 2 Aluminum

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger19YP3085.051In Stock16SCHNEIDER ELECTRIC85.05 @ 1
thumbzoomZoroG722616185.69129Schneider Electric0.485.69 @ 1
thumbzoomsimsupply.comZO-G722616195.9519Schneider Electric95.95 @ 1
thumbzoomsustainablesupply.comC2681353102.381In StockSchneider Electric0.46102.38 @ 1
thumbzoomsuperbreakers.comQO120PLILC220.9112Square D220.91 @ 1
thumbzoomGalcoQO120PLILC-SQD245.591In StockSquare D245.59 @ 1
thumbzoomgordonelectricsupply.comQO120PLILC264.01In Stock10SQUARE D264.0 @ 1
thumbzoomRadwellQO120PLILC280.01In StockSCHNEIDER ELECTRIC SQUARE D280.0 @ 1
thumbzoommayerelectric.comSQDQO120PLILC287.631In StockSQUARE D0.4686287.63 @ 1
thumbzoomRaptor SuppliesAF6MWX293.62840651In StockSCHNEIDER ELECTRIC293.6284065 @ 1
us.rs-online.com72132272309.151In StockSquare D309.15 @ 1
thumbzoomcrescentelectric.com952849310.21In StockSquare D by Schneider Electric310.2 @ 1
Newark33M9712313.281In StockSQUARE D BY SCHNEIDER ELECTRIC313.28 @ 1
steinerelectric.com388802331.271In StockSquare D?331.27 @ 1
Graybar25149632456.91521In StockSquare D (Schneider Electric)456.9152 @ 1
Home Depot2041767829999.01In StockSquare D9999.0 @ 1
