- mpnC54191
- brandname: CLEVELAND
- manufacturername: CLEVELAND

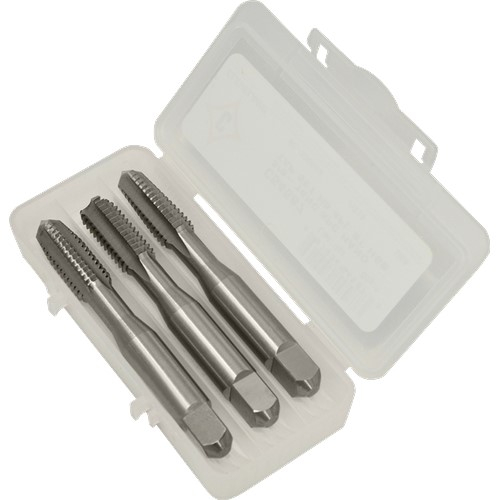

CLEVELAND Three Piece Tap Kit,#5-40,HSS C54191
- Brand: CLEVELAND
- PartNumber: C54191
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLEVELAND
- Label: CLEVELAND
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | #36 |
| 65% Thread Drill Size | #37 |
| 75% Thread Drill Size | #39 |
| Chamfer | Bottoming/Plug/Taper |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Shank | No |
| Features | Taper-Plug-Bottoming |
| Finish/Coating | Bright |
| Includes | (1) Bottoming Tap, (1) . |
| Item | Straight Flute Hand Tap |
| List Number | 5512 |
| Material | HSS |
| Measurement System | Pipe, Imperial |
| Number of Flutes | 3 |
| Number of Pieces | 3 |
| Number Of Taps | 3 |
| Overall Length | 1-15/16", 1.94 in |
| Package Type | Rose Plastic? UniBox |
| Pitch Diameter Limit | H2 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Series | 1004 |
| Shank Dia. | Shank Dia.: 0.141" |
| Shank Diameter | 0.1409 in |
| Shank Length | 1 5/16 in |
| Size | #5-40 |
| Square Size | 7/64 in, 0.1875 in L x . |
| Standards | USCTI Table 302A |
| Style | 1004 |
| Surface Condition | Bright |
| Tap Chamfer | Bottoming, Plug, Taper |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Size | #5 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | #5-40 |
| Tap Thread Type | UNC |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 0.31 in, 5/8" |
| Thread Limit | H2, 2B |
| Thread Pitch | 40 |
| Thread Standard | UNC |
| Threads per Inch | 40 |
| Tool Size | #5-40 UNC |
| Type | Standard Straight Flute. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6120120 | 16.81 | 3 | In Stock | | Cleveland | | 16.81 @ 3 |
 | Zoro | G2844462 | 19.59 | 1 | In Stock | | Cleveland | 0.03 | 19.59 @ 1 |
 | Megadepot | C54191 | 19.87 | 1 | In Stock | | Cleveland | | 19.87 @ 1 |
 | usmegastore.com | C54191 | 21.29 | 1 | In Stock | | Cleveland | | 21.29 @ 1 |
 | bscsource.com | C54191 | 23.99 | 1 | In Stock | | Cleveland | | 23.99 @ 1 |
 | sustainablesupply.com | C2975347 | 25.59 | 1 | In Stock | | Cleveland | 0.03 | 25.59 @ 1 |
 | National Supply Network | 40201261 | 36.01 | 1 | In Stock | | Cleveland | | 36.01 @ 1 |
 | Guardian | 40201261 | 45.39 | 1 | In Stock | | Cleveland | | 45.39 @ 1 |
